Summary of Contents for enertik BS-550-L

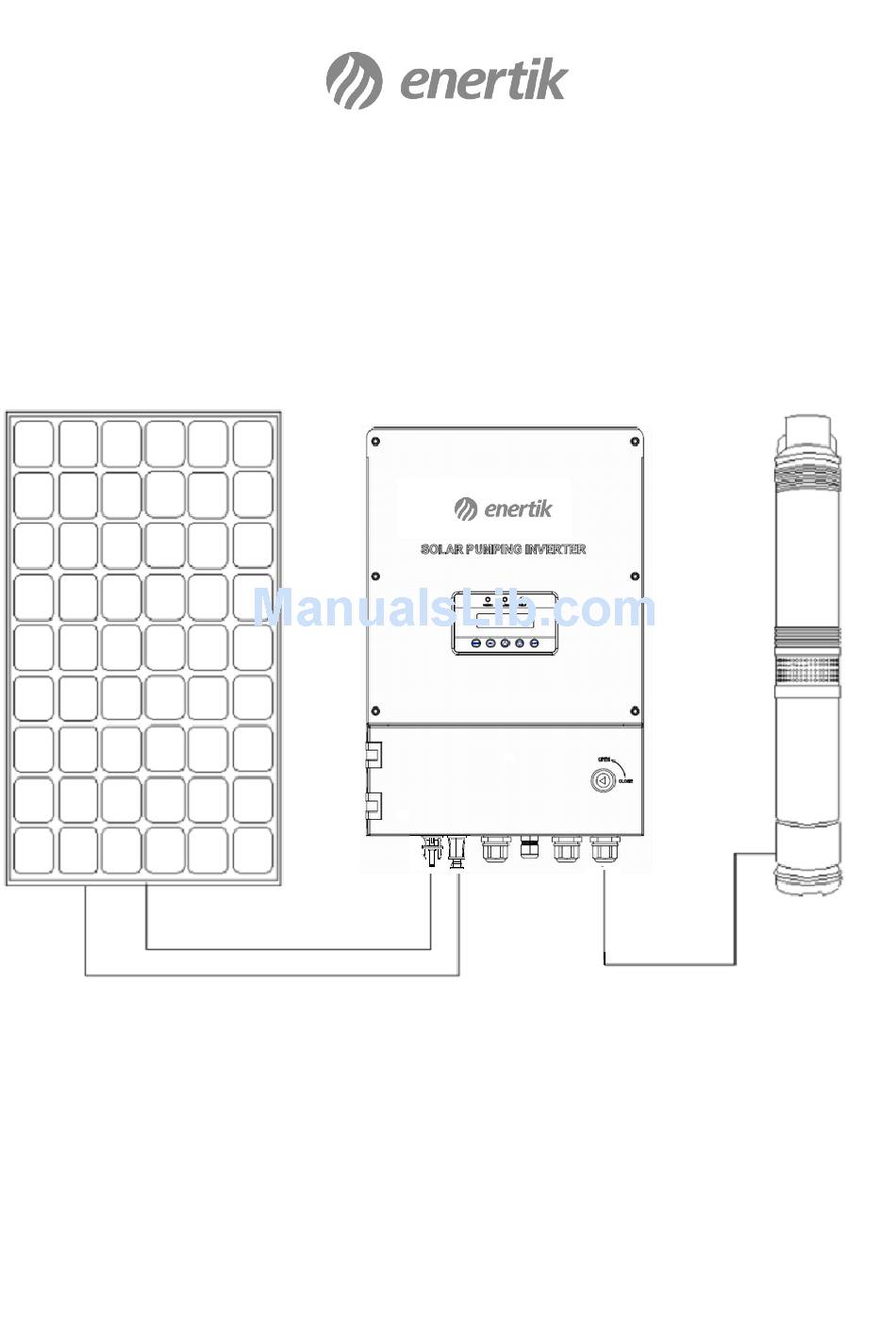

  • Page 1 Solar Pumping Inverter User’s Manual...
  • Page 2 Preface In order to give full play to the product performance and guarantee the safety of user and equipment, before installation and use, please carefully read the manual. In order to facilitate daily inspection and maintenance of inverter and understand abnormal reason and solutions, please keep the instruction properly.

  • Page 3: Table Of Contents

    Operation Instruction of BS Series Solar Pumping Inverter Precautions Contents Precautions ..........................II Chapter I Product Introduction .................... 1 1.1 Introduction to Solar Pumping System ................1 1.2 Product Characteristics ......................2 1.3 Inverter Specification ......................3 Chapter II Installation and Wiring ..................7 2.1 Procurement Inspection .......................

  • Page 4: Precautions

    Operation Instruction of BS Series Solar Pumping Inverter Precautions Precautions The safe operation of the product is subject to correct transportation, installation, operation, and maintenance. Before conducting these tasks, please pay attention to relevant safety instructions. The warnings related to safety in the manual are listed as follows: Grounding Wire of Equipment AC Value DC Value...
  • Page 5 Operation Instruction of BS Series Solar Pumping Inverter Precautions 2. Try to install it in the indoor place with ventilation opening or air interchanger. It is forbidden to install it directly under sunshine. 3. During installation, do not discard residue of drill hole into inverter cooling find or fan, which may affect heat dissipation.
  • Page 6 Operation Instruction of BS Series Solar Pumping Inverter Precautions Warning 1. Before the first operation, please adjust some control parameters according to operation instruction. Do not alter the control parameters of inverter at random, or else it may damage the equipment. 2.

  • Page 7: Chapter I Product Introduction

    Operation Instruction of BS Series Solar Pumping Inverter Product Introduction Chapter I Product Introduction 1.1 Introduction to Solar Pumping System Solar Pumping System is widely applied in domestic water, agricultural irrigation, forestry watering, desert control, grassland animal husbandry, island water supply, water treatment project, etc.

  • Page 8: Product Characteristics

    Operation Instruction of BS Series Solar Pumping Inverter Product Introduction 1.2 Product Characteristics On the basis of many-year research, development, and experiment, the pumping inverter (Figure 1-2) independently developed and produced by our company has the following advantages:  Use independently-developed dynamic VI MPPT (Maximum Power Point Tracking) control method.

  • Page 9: Inverter Specification

    Operation Instruction of BS Series Solar Pumping Inverter Product Introduction protection, output side phase loss protection, inverter module overheat protection, grounding short circuit protection, and underload (anti-dry pumping) protection.  The main circuit uses power module (PIM), and the reliability is higher. ...
  • Page 10 Operation Instruction of BS Series Solar Pumping Inverter Product Introduction Figure 1-3 Introduction to Product Nameplate and Model Identification Introduction Product Series Rated Power (W) of Motor Output Voltage (L: 220V None:380V) A: with electric supply function None: without electric supply function Warning: do not rip out product nameplate label.
  • Page 11 Rated output voltage Model output output frequency voltage voltage （ Vac） voltage power （ W） current （A） （Hz) (Vdc) (Vdc) (Vdc) BS-550-L 100-400 0-50/60 3PH 220V BS-750-L 150-400 0-50/60 3PH 220V BS-1100-L 150-400 1100 0-50/60 3PH 220V BS-1500-L 200-400 1500...
  • Page 12 Operation Instruction of BS Series Solar Pumping Inverter Product Introduction BS-22K 500-680 22000 0-50/60 3PH 380V BS-3000-A 500-680 3000 0-50/60 3PH 380V BS-4000-A 500-680 4000 0-50/60 3PH 380V BS-5500-A 500-680 5500 0-50/60 3PH 380V BS-7500-A 500-680 7500 0-50/60 3PH 380V BS-9200-A 500-680 9200...

  • Page 13: Chapter Ii Installation And Wiring

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Chapter II Installation and Wiring 2.1 Procurement Inspection Our company has strict quality assurance system in aspects of product manufacturing, packaging, etc. In case of abnormal condition, please contact with our company’s product dealer, or contact with our company’s technical service center.
  • Page 14 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Product Specification Parameter: Appearance and installation dimension (mm) Model Weight（Kg） BS-550-L BS-750-L BS-1100-L BS-1500-L BS-2200-L BS-550-LA BS-750-LA BS-1100-LA BS-1500-LA BS-2200-LA BS-3000 BS-4000 BS-5500 BS-7500 BS-9200 BS-11K BS-13K BS-15K BS-18K5...

  • Page 15: Installation Diagram

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Warning: most models of BS series are hanging installation. Guarantee that the installation backboard can bear the weight of inverter. 2.3 Installation Diagram Figure 2-2 Installation Dimension Diagram of BS-550 to 2200 Figure 2-3 Installation Dimension Diagram of BS-3000 to 5500...
  • Page 16 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-4 Installation Dimension Diagram of BS-7500 to 13K Figure 2-5 Installation Dimension Diagram of BS-15K to 22K...
  • Page 17 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-6 Install Safety Nut Figure 2-7 Correct Arrangement Diagram of Inverter...

  • Page 18: Wiring Diagram

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.4 Wiring Diagram 2.4.1 Wiring Diagram of BS-550-2200 AC Output Terminal PV Input Terminal AC Input Terminal Water Level Terminal Figure 2-8 Wiring Terminal Figure 2-9 BS-550-L to 2200-L Wiring Diagram...
  • Page 19 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-10 BS-550-LA to 2200-LA Wiring Diagram 2.4.2 3000 to 5500 Wiring Diagram of BS- Figure 2-11 BS-3000 to 5500 Wiring Terminal...
  • Page 20 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-12 BS-3000 to 5500 Wiring Diagram Figure 2-13 BS-3000-A to 5500-A Wiring Diagram...
  • Page 21 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.4.3 7500 to 13K Wiring Diagram of BS- Figure 2-14 BS-7.5K to 13K Wiring Terminal Figure 2-15 BS-7.5K to 13K Wiring Diagram...
  • Page 22 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-16 BS-7.5K-A to 13K-A Wiring Diagram 2.4.4 Wiring Diagram of BS-15K to 22K Figure 2-17 BS-15K to 22K Wiring Terminal...
  • Page 23 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Figure 2-18 BS-15K to 22K Wiring Diagram Figure 2-19 BS-15K- A to 22K- A Wiring Diagram Use key to open the lower cover of crate. There is DC switch, water level sensor connection terminal, GPRS(optional), and AC output terminal.
  • Page 24 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Analog Output Analog Output Relay 1 Output Relay 2 Output Figure 2-20 A/O Terminal Diagram Figure 2-21 I/O Terminal Diagram...
  • Page 25 Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Terminal Introduction Socket Terminal Introduction Wiring Introduction Connect with the positive pole of solar array Input Connect with the negative pole of solar array Connect with protective ground wire Connect with motor U phase Output Connect with motor V phase...
  • Page 26 Output length≤ length≤ length≤ length≤ length≤ length≤ length≤ model d output voltage(V) 120m 150m 180m 210m current(A) BS-550-L 1HP 230V 0.75 BS-750-L 3HP 220V 0.75 BS-1100-L 3HP 220V BS-1500-L 3HP 220V BS-2200-L 3HP 220V BS-3000 3HP 380V BS-4000 3HP 380V...

  • Page 27: Assemble Dc Connector

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring 2.5 Assemble DC Connector 2.5.1 Strip the cable 6-8mm,then connect the bare wire core into core tube of connector . Figure 2-22 DC Line connects with wiring board 2.5.2 Crimp contact barrel by using a hex crimping die.Put the contact barrel with striped cable in the corresponding crimping notch and crimp the contact.Insert the core tube into slot of connection until hear the voice indicating in place.

  • Page 28: Introduction To The Wiring Of Water Level Sensor

    Operation Instruction of BS Series Solar Pumping Inverter Installation and Wiring Warning: risk of electric shock! Before shifting solar panel, disconnect pumping inverter AC and DC. Besides, allow 5-minute internal capacitance discharging. 2.6 Introduction to the Wiring of Water Level Sensor DC Switch Connect S2 and COM Water Level Sensor 2...

  • Page 29: Chapter Iii Operation Control

    Operation Instruction of BS Series Solar Pumping Inverter Operation Control Chapter III Operation Control 3.1 Panel Layout and Introduction Solar Pumping Inverter uses LCD operation panel. The operation panel is shown in the figure, including 3 LED lights,LCD display and 5 keys. Figure 3-1 Keyboard Layout and Each Part Name Indicator and Key Name...

  • Page 30: Panel Operation Method

    Operation Instruction of BS Series Solar Pumping Inverter Operation Control Indicator and Key Name Function Introduction 1. Press for a short time to enter programming mode. After altering parameter, “press for a short time” to Confirm/Progra confirm the alteration mming Key 2.

  • Page 31: Work Mode

    Operation Instruction of BS Series Solar Pumping Inverter Operation Control ↓ Input voltage of the inverter Represent：542.3V ↓ Output voltage of the inverter Represent：379V ↓ Output current of the inverter Represent：11.1A ↓ The relative value of rated power Represent：79.1% ↓ Output frequency of the inverter Represent：50.00Hz...

  • Page 32: Introduction To The Procedure Of Wiring And Debugging

    Operation Instruction of BS Series Solar Pumping Inverter Operation Control cellphone number. Send messages to set startup, shutdown, parameter inquiry, etc. Warning: do not change menu S00 parameters. The default mode is fully-automatic work mode. 3.4 Introduction to the Procedure of Wiring and Debugging 3.4.1 Procedure of Power Supply Debugging of Solar Cell 1.
  • Page 33 Operation Instruction of BS Series Solar Pumping Inverter Operation Control 2. Conduct parameter setting for the motor (a) Setting S00.01=0. Command code channel is keyboard manual mode instruction. (b) Set water pump nameplate parameters: S02.01 motor rated power value; S02.02 motor rated power value;...
  • Page 34 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Operation Description Display Return the main parameter modification interface for long press 2s ↓ Represent：S00 parameter group Long press OK for 2s to return to the initial status ↓ Represent：Working freq. 50.00Hz Long press ON/OFF key for 2s to stop the inverter.
  • Page 35 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Operation Description Display Press to save the parameter value return to the branch menu Represent：S00 parameter group ↓ Long press OK for 2s to return to the main menu Represent：S02 parameter group ↓...
  • Page 36 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Operation Description Display ↓ ↓ ↓ Turn off the DC switch, waiting the LCD display off, then turn on the DC switch, the inverter will auto-start to drive pump(5.5kW) 3. After finishing all parameter settings, turn off Q2 of DC switch. After display screen is OFF for 5 minutes, turn on AC output.
  • Page 37 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Power grid Solar cell panel Water level switch DC switch Impounding Reservoir 2. Turn off Q2 switch, then turn on Q1 switch. 3. After power-on, adjust motor parameter according to Item 2 of Article 3.4.1. 4.
  • Page 38 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Name Scope Introduction Factory Value 0: keyboard operation code channel (LED is off) Operation code 1: terminal operation code channel S00.01 channel (LED flickers) 2: communication operation code channel (LED is bright) Rated power of Model S02.01...

  • Page 39: Chapter Iv: Failure Diagnosis

    Operation Instruction of BS Series Solar Pumping Inverter Operation Control Chapter IV: Failure Diagnosis 4.1 Explanation and Solution for Fault Code BS series solar pumping inverter has complete protection. When system suffers failure, the inverter will take protective measures: the general protective measures are to stop the output of drive signal of motor and forbid to re-start within a certain period.
  • Page 40 Operation Instruction of BS Series Solar Pumping Inverter Operation Control Inverter The inverter load is Decrease power grade of water Overload VVVF overload too large pump Output short circuit Check wiring Module IGBT shortcut or grounding Seek services from overcurrent Module damage manufacturer Air flue is blocked...
  • Page 41 Operation Instruction of BS Series Solar Pumping Inverter Operation Control...

  • Page 42: Chapter V Maintenance

    Chapter V Maintenance 5.1 Daily Inspection and Maintenance Affected by environment temperature, humidity, vibration, and inverter internal component aging, the inverter may suffer some potential problems during operation. In order to stably operate the inverter for a long term, conduct periodical inspection once each year. 5.1.1 Requirements of Inspection and Maintenance 1.

  • Page 43: Inspection And Replacement Of Quick-Wear Parts

    5.2 Inspection and Replacement of Quick-wear Parts 5.2.1 Filter Capacitor The pulsating current of main loop will affect the performance of filter capacitor of aluminium electrolysis. The affected degree and environment temperature are related to service environment. Under normal conditions, the inverter shall change electrolytic capacitor once every 10 years. When electrolyte of electrolytic capacitor leaks, safety valve emits, or capacitance expands, replace it immediately.

  • Page 44: Quality Assurance

    Quality Assurance Warranty Policy: Warranty period: Our company provides series solar pumping inverter with warranty period of 24 months. The systematic components provided by our company have 12-month warranty period. Starting date of warranty period: the date when user gets goods from our dealer. Warranty proof: product series number and local dealer’s shipment invoice.
  • Page 45 (12) Force majeure (such as lightning, over-voltage, thunderstorm, fire disaster) If claim exceeds the power quoted in warranty principle,our company shall not undertake legal responsibilities, including the following conditions: claim compensation due to direct or indirect damaged caused by defective equipment; claim compensation due to the damage caused by removal and installation;...

  • Page 46: Warranty Card

    Warranty Card Contact Client Name Person Client Address Contact Tel. Product Procurement Specification Date Warranty Date (since Equipment Code production date) Distribution Unit (Seal) Packing List (1) Main engine quantity: One set (2) Instruction book (including warranty card) quantity: one (3) Patch plug of positive pole of solar cell array quantity: one (4) Patch plug of negative pole of solar cell array...
