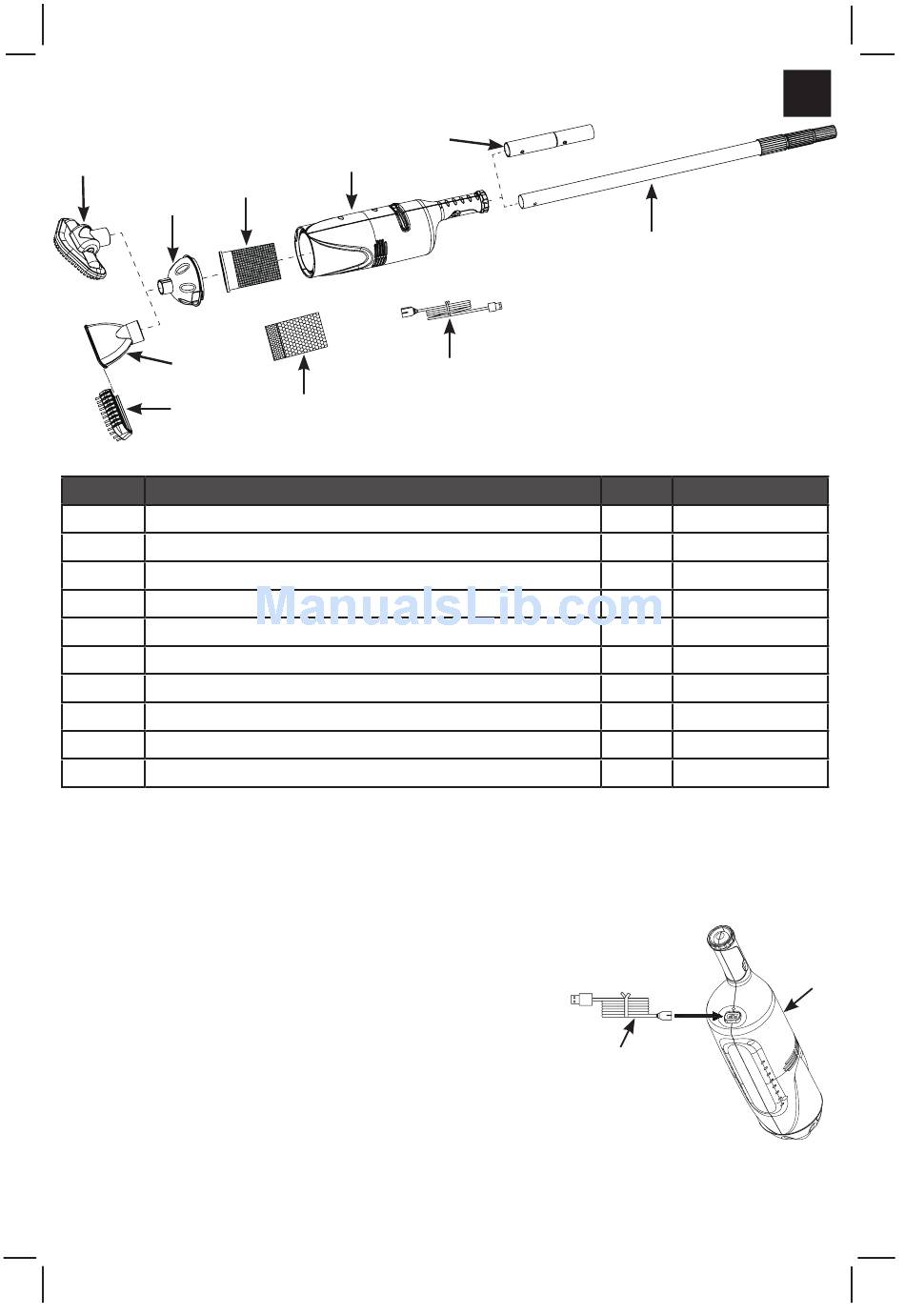

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.
REF. NO.
1 VACUUM BODY WITH NON-REPLACEABLE BATTERY
2 FILTER BAG WITH GASKET
3 VACUUM BODY COVER
4 LARGE VACUUM BRUSH HEAD
5 VACUUM NOZZLE
6 VACUUM NOZZLE BRUSH
7 MICRO-FILTER BAG
8 VACUUM CHARGING USB CABLE
9 TELESCOPING ALUMINUM POLE
10 POLE ADAPTOR
General:
• Plug charger not included. Only use a compatible standard female USB (smartphone or
tablet) plug charger with an output voltage of 5-5.2V DC, 1A.
• A full charge takes about 8-10 hours: provides about 40-50 minutes of operation.
• Make sure the charging receptacle on the product is dry before any recharging.

Charging the Battery:

1. Connect USB cable to plug charger USB receptacle and
plug the charger into the main electrical outlet.
2. Connect the small end of the USB cable (8) into the
vacuum body (1) charging receptacle. See fig 1. The
indicator light will turn on.

Installation:

1. Insert the filter bag with gasket (2) into the vacuum body
(1). See fig 2.1.
SAVE THESE INSTRUCTIONS
(286PO) RECHARGEABLE HANDHELD VACUUM ENGLISH SIZE: 4.875" X 7.25" 08/23/2015

PARTS LIST

1
2
7
DESCRIPTION
10
8
Page 2
9
QTY. SPARE PART NO.
1 12271
1 12278
1 12277
1 12274
1 12275
1 12276
1 12279
1 12269
1 10637
1 12270
8
Fig 1
