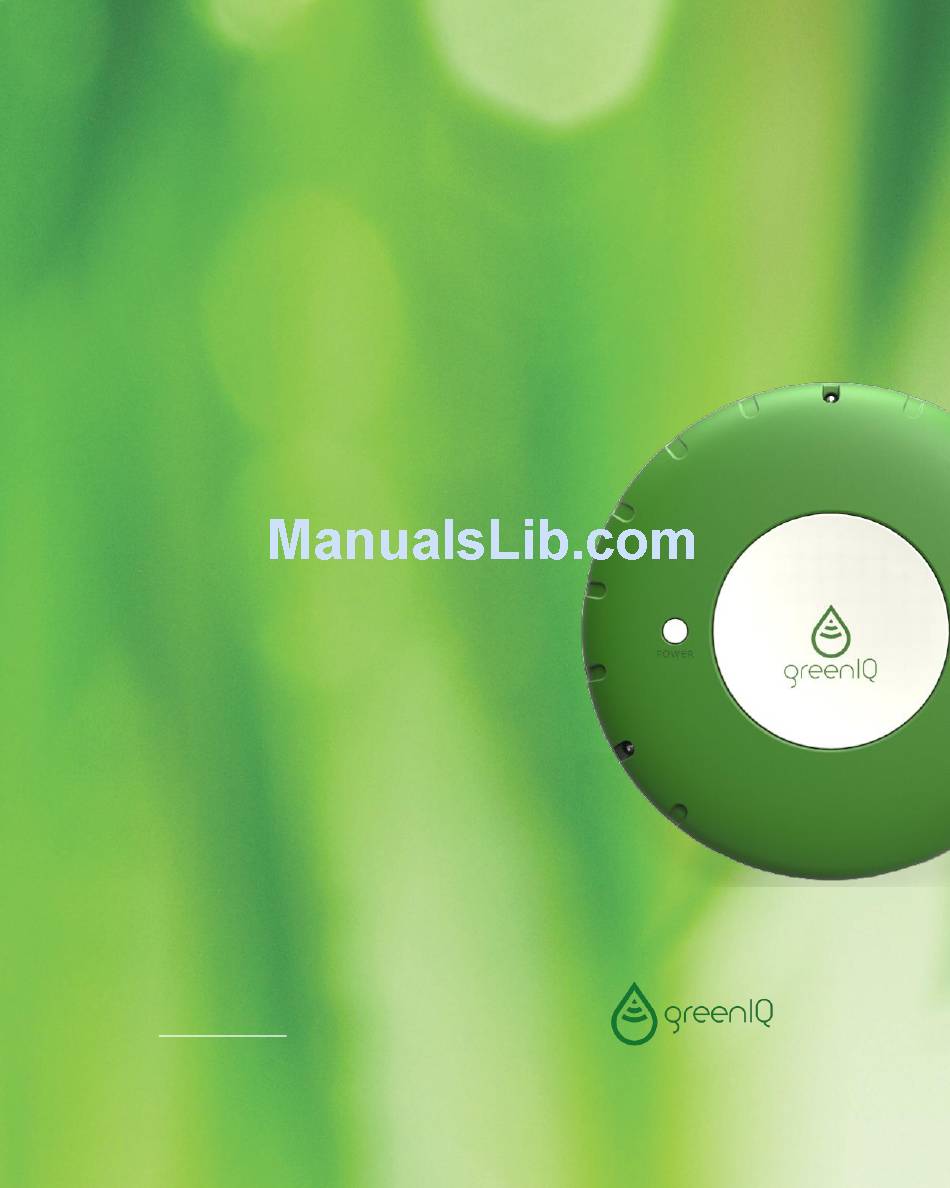

- Page 1 Smart Garden Hub User Guide Revision 2.x, September 2015 www.greeniq.co...
-
Page 2: About This Guide
Evapotranspiration and rainfall indicators. The Green IQ Web App makes it easy for you to control of your GreenIQ Smart Garden Hub via your iPhone, iPad, Android smartphone/tablet, PC, Mac and other web-enabled devices. For more details please visit our web site. -
Page 3: Before You Begin
1.3. Before you begin Before you can use the GreenIQ web app, the following prerequisites must be met: You must have a registered GreenIQ Cloud account. Internet connection must be set up (Wi-Fi mode only). The GreenIQ Smart Garden Hub must be connected to power and the Internet. -
Page 4: How It Works
2.2. How it works Using the app, you define the start time and end time for each zone (up to four different programs per zone). Then, you can just sit back while GreenIQ Smart Garden Hub takes it from there. -
Page 5: Response Time
Only A-grade platforms from this list can run the GreenIQ web app. 3.1.2. Response time When you send a command via the app to the GreenIQ Smart Garden Hub, there is a delay of a few seconds between: ... - Page 6 Smart Home – View your Smart Home solution settings, if applicable. (Contact Green IQ support for details.) Status – Check your system’s status or reset your Smart Garden Hub. For details, see Managing Your System and Account Settings About –...
- Page 7 3.1.7. Managing your Internet connection The GreenIQ Smart Garden Hub must have a constant Internet connection to work properly. Internet connection is defined once during installation. Refer to the “GreenIQ Smart Garden Hub Installation Guide”...
- Page 8 The Program screen includes the following functions: Zone menu, listing the six irrigation zones (Zone 1 to Zone 6) and the lighting control channel (Zone 8), including visual indicators of the zone states: Irrigation zone enabled Irrigation zone disabled Irrigation in progress (manual) Lighting zone enabled Irrigation zone disabled...
-
Page 9: Zone Properties
3.2.2. Zone properties You can view and edit properties of a zone in the Zone screen when you select a zone on the Program screen. The Zone screen includes the following parameters: Zone identifying properties: Zone Picture – An image of the zone (optional). You can upload or replace the picture ... - Page 10 4. Select one of the four programs. The irrigation program screen is displayed. 5. Turn on the Program Enable switch. 6. (Optional) Turn on the Consider Weather switch. – Turn on this switch to allow the GreenIQ Smart Garden Hub to adjust the irrigation duration based on the local weather.
- Page 11 Tip: When selecting Weather Mode, you need to program watering schedules to match the watering needs during the hottest days of the year. To save water, the GreenIQ Smart Garden Hub adjusts these schedules based on actual and forecasted weather.
- Page 12 2. Type values in the fields or drag the sliders to the required settings. 3.2.7. Creating a lighting program You can program your GreenIQ Smart Hub to automatically operate your outdoor lighting. You configure up to four lighting programs. To create a lighting program: 1.
- Page 13 3. Select one of the four programs. 4. Click and expand the Lights On area. 5. Select the Start Time Mode: If Clock mode is selected, set the Start Time. If Dusk or Sunset mode is selected, set the number of minutes after dusk or sunset to wait before turning the lights on.
-
Page 14: Viewing Reports
3.2.8. Viewing Reports Select Report from the main menu to view a report of each zone’s activity during the past 7 days. You can also choose to receive the report by e-mail on a daily or weekly basis. The report includes ... -
Page 15: Working With Sensors
3.3. Working with Sensors The Smart Garden Hub currently supports these sensors: Flow sensor: This sensor physically connects to pipeline and to the Smart Garden Hub. It can indicate the real amount of water irrigation at a given time, and we generate analytics about the irrigation accordingly. - Page 16 3.3.1. Setting up a flow sensor The GreenIQ Smart Garden Hub supports the use of the GreenIQ flow sensor. To set up a flow sensor: 1. Connect it to the hub and install it on the garden pipe line. 2. On the Sensors screen, expand Flow Sensor.
- Page 17 If you are not at home or Bluetooth is not enabled, the data will not be uploaded to the cloud. GreenIQ will identify that there is no valid data and will ignore sensor’s information.
-
Page 18: Smart Home
Control4 Crestron For additional information, contact GreenIQ. 3.5. Managing your system and account settings 3.5.1. System status To check your system’s status, select Status from the main menu. In case of an error or a warning, wait a few moments for the problem to be resolved. - Page 19 3.5.2. Managing your GreenIQ account From the main menu, select My Account to edit your account settings. Important: A valid e-mail address should be entered. This enables GreenIQ to send you important alerts. Important: Make sure that the location on the map is your garden’s location. If not, click the Locate Me button.
- Page 20 2. When prompted to confirm that you want to reset and reboot the Hub, click OK. Important: The remote reset works only if the GreenIQ Smart Garden Hub is connected to the Internet. If the Internet connection is down, the only way to reset the unit is by disconnecting it from...
- Page 21 We invite you to visit our web page for updates, tips and support: http://greeniq-system.com/ You’re welcome to join our Facebook page, share your tips, photos of your garden, and interact with other GreenIQ users. https://www.facebook.com/greeniq.systems Follow us on Twitter for latest updates, events and news coverage.
- Page 22 PartNumber: GIQ-USWIF-001/EN: Wi-Fi Smart Garden Hub with 120VAC Adapter GIQ-EUWIF-001/EN: Wi-Fi Smart Garden Hub with 230VAC Adapter GIQ-USCEL-001/EN: Cellular Smart Garden Hub with 120VAC Adapter GIQ-EUCEL-001/EN: Cellular Smart Garden Hub with 230VAC Adapter GIQ-0019-02/EN © 2016 All Rights Reserved to GreenIQ LTD...
