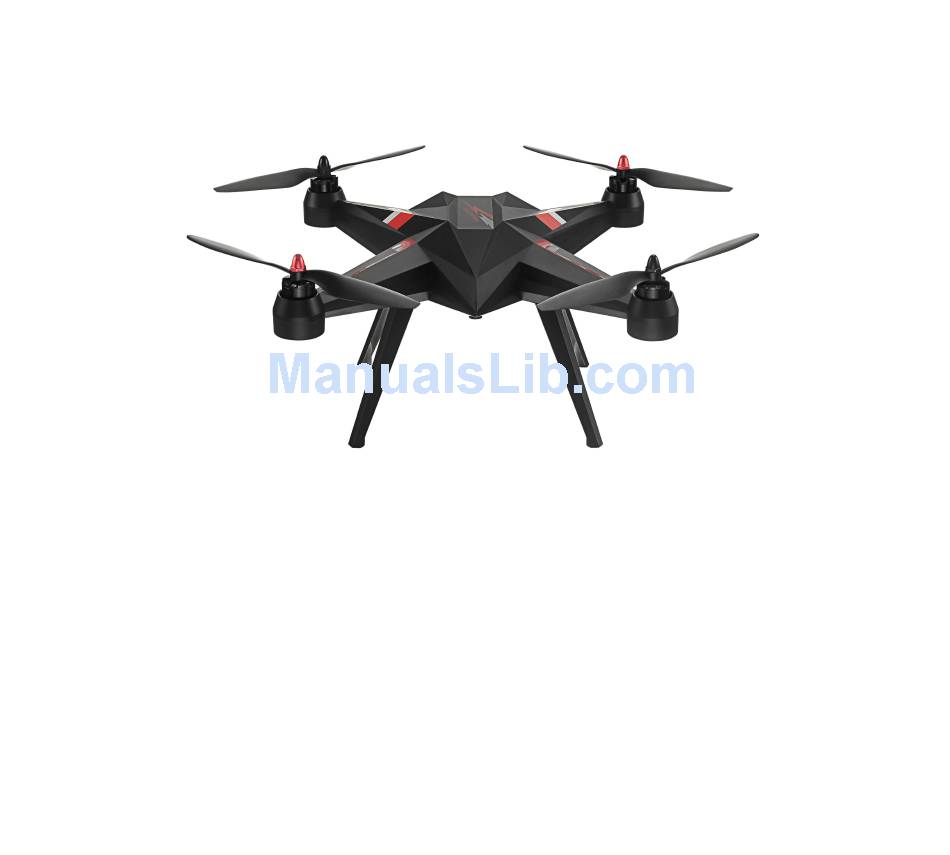

Page 1 Meknic Flydrone User Manual...
Page 2 About this Guide Thank for purchasing Meknic Brand product. We made every effort to ensure that this User Guide is accurate and complete. Due to the unforeseen changes or product upgrades, the information contained in the manual is subject to change without notice.
Page 3: Table Of Contents
If you have any problem that cannot solve during installation, please contact official authorized dealer or customer service. Content Quality Statement......................Disclaim & Warning......................Trademarks........................Cautions For Product Use....................Battery Usage & Charging Cautions................In The Box........................Introduction........................Aircraft & Transmitter Basic Operation................Before Flying........................
Page 4 Aircraft Parameters....................... FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 5  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 6: Disclaim & Warning
.Despite Meknic Flydrone having a built-in autopilot system and our effects in making the operation of the controller as safe as possible when the main power battery is...
Page 7 Product in the following conditions : 1. Damages or injure incurred when users are drunk ,taking drugs drug anesthesia, dizziness, fatigue ,nausea and any other conditions no matter physically or mentally that could impair your ability . 2. Damages or injure caused by subjective intentional operations. 3.
Page 8: Trademarks
22. Other losses that are not covered by the scope of our company’s innovation liability. Trademarks Meknic is the registered trademarks of the innovations in USA and EU countries .Names of the product, brand, etc. appearing in this manual are trademarks or registered trademarks of their respective Daten Group Company.
Page 9: Cautions For Product Use
reserved .no part of this product or manual shall be reproduced in any form without the prior written consent or authorization of our innovations .no patent liability is assumed with respect to use of the product or information contained herein. Cautions for Product use Please check the following steps every time before flight 1.
Page 10 equipment. 6. Make sure that the transmitter battery and flight battery are fully charged. 7. Make sure to switch on the transmitter first, and then power on multi-rotor before takeoff! （power off the multi-rotor first, and then switch off the transmitter after landing）...
Page 11 11. Do not use the transmitter (receiver) with the third party remote control equipment. 12. Make sure to use the assistant software of 1.2 version (or above 1.2) to carry out firmware upgrade and parameter configuration .Do not use the assistant software below 1.2version.
Page 12: Battery Usage & Charging Cautions
the WIFI function is disabled ,to avoid the interference on the transmitter ,which may cause the product to Fail safe, crack or even to fly away. 18. For Mac user, please install windows parallel to ruin assistant software. Battery usage and charging cautions Do not put the battery in the water, store the battery in a cool and dry environment.
Page 13 9. Do not let the battery terminals touch together to cause short circuit. 10. Do not transport or store the battery and together with metal objects. 11. DO not hit or throw the battery. 12. Do not weld the battery terminals together. 13.
Page 14 deformation, change in color or other abnormal phenomenon, if the battery is in use or charging, you should stop the charging or using immediately. 19. If the battery terminals get dirty, please clean it with dry cloth before using .otherwise it will cause a poor contact, thus causing the energy loss or cannot charge.
Page 15: In The Box
In the box Please check the package items before using. Name Diagram Qty. Instruction Aircraft 2.4G RC Landing Gear 15 |...
Page 16 Each pairs including a positive and counter paddle, Propeller pay attention to the paddle direction Assistant Wrench LiPo Battery The battery for aircraft AA Battery Battery for RC 110-240V auto-adaptation Adapter power supply Balance Charge for lithium battery Charger Plug Adaptor CE, SAA, BS, optional 16 |...
Page 17: Introduction
Accessory Screw M2.5X20(6pcs) Introduction Meknic Fly drone is an all-in-one small Quad copter designed for multi-rotor enthusiasts. Before shipping from the factory, it has been configured and fully tested, which means you have no configuration to do. Aircraft 17 |...
Page 18 [1] Propeller [2] Brushless Motor [3] Battery Cover [4] Landing Gear [5] Battery Power Indicator(Red) [6] GPS Signal Lights(Blue) [7] Tail Shield Piece 18 |...
Page 19 [8] Nose Lights(Red) [9] Gimbal Fixed Hole [10] Gimbal Control Port(*) [11] Micro USB Port [12] Tail Light(Green) Gimbal Control Port(*)，from the nose direction as follows：①+12V power output, ②Roll, ③Pitch, ④GND, ⑤GND, ⑥Null 19 |...
Page 20 Aircraft Built-in Aircraft operating mode APM Flight Control Stabilize Mode System Barometer Altitude Hold GPS Module Loiter Mode Magnetic Module RTL Mode RC Receiver Fail-Safe Protection Flight Power System Low Voltage Protection Aircraft Indicator Remote control 20 |...
Page 21 [1] Antenna [2] RTL Switch [3] Power Indicator [4] Signal Transmission Indicator [5] Left Stick(Throttle: up & down, Yaw: rotation) [6] Neck Strap Attachment [7] power switch 21 |...
Page 22 [8] control mode switch [9] Right Stick(Roll: left & right, Pitch: front & back) [10] External Power Port [11] Handle [12] Battery Cover [13] Simulator Port(Simulate CD to use) [14] Gimbal pitch control RC parameters Working Frequency:2401MHz–2479MHz > >Transmit Power:≤70mW >Communication Distance（widen outdoor):500m–1000m >(Under different circumstance, affected by magnetic environment, the communication distance will be different.)
Page 23: Aircraft & Transmitter Basic Operation
>AA battery（5#）:4 pieces >External power supply:6V Aircraft & transmitter basic operation Definitions： Stick neutral position and stick released means the stick of transmitter is pushed to the central position. Common stick means the stick of transmitter is pushed away from the central position.
Page 24 throttle stick into the neutral position, the aircraft can take off from the ground. Yaw stick is for aircraft rudder control. Common stick controls the angular velocity of the aircraft, with the maximum rudder angular velocity of 200.left stick command gives counter clock-wise rotation of the aircraft, vice versa.
Page 25 the aircraft maintain the level. Stick corresponded to the title angle of the aircraft, the larger the stick, the larger the title angle (the max is 45˚), the quicker the flying speed. Roll stick is used to control the left and right flying of the aircraft.
Page 26 the tilted angle（Max is 30˚）, the quicker the flying speed. Control mode switch Change switch can choose different control mode .factory default: stabilize, Stabilize AltHold Loiter Alt Hold, Loiter. When GPS signal The software can indicator flashes, Do not switch to GPS customize three gesture mode.
Page 27: Before Flying
Gimbal control knob, twist the knob can change pitch angle of gimbal. The frequency method for RC and receiver This product built-in 2.4GHz receiver, the frequency interface is located in the aircraft cabin. When shipping from the factory, RC and receiver have already completed the frequency, it can be used after connecting to the power.
Page 28 ③ Please use the correct typed battery to avoid the explosion. ④ Please dispose wasted battery according to the battery instruction. ⑤ Remove the battery after using it. 2. Prepare the aircraft battery Please use the fully charged 3S Li Po battery(recommended parameters for battery：1143145 - 7000MAH - 20C －11.1V)。...
Page 29 4. Sticker posted method 5. Install the tripod Put the stickers stick on the product according to the illustration direction. 6. Switch on the RC ⑴ Put the model control switch and return switch into the top. ⑵ Push up the power switch to turn on the RC. 7.
Page 30: Flying Test
⑵ Turn on the battery compartment cover of the aircraft. ⑶ Put the battery into the battery compartment with the power cord facing outwards. ⑷ Connect the power line of battery and aircraft, make sure that four ESC beep is normal, the green tail indicator of the aircraft bottom start to flash at this moment, Do not move the RC, Keep the aircraft stationary，the system quickly into the self-test status，green light flashes quickly, when the green light start to flash slowly, the system self-test is complete.
Page 31 (3)Please release the stick after the motor starts，the flight stick will automatically return to the middle when the throttle stick located in the lowest position ,at this moment green tail indicator flashes all the time.（if you find the green light is flashing, it indicates that the unlocked time is too long ,the aircraft starts to automatic calibration balance mode)；push the throttle stick away from the lowest position （the throttle stick does not away from the bottom at a period of time, motor stop rotating, if (this is the case,...
Page 32 ground. and use the stick to adjust the movement state of the aircraft. (5) After reaching the desired position, pull the throttle in to the neutral position （keep the roll/pitch/yaw stick is in the neutral position），change the control switch ,change the flight mode of aircraft . 4.
Page 33 takeoff the aircraft, lock the aircraft and then unlock again, confirm the green tail light flashes, the aircraft start to normal state. ② If the battery voltage is too low during the flight, the aircraft starts to low voltage alert, the red nose indicator flashes, please landing the aircraft as soon as possible to avoid the serious consequences.
Page 34 The flowchart of fail safe and how to regain control Complete uncontrolled return process Return point ： when the main controller find 6 or more satellites （ GPS signal indicator flashes） ,the first time you start the motor, the main controller records the aircraft position to the return point.
Page 35 2. GPS normally work and has a good signal（ six satellites or more, corresponded GPS signal indicator state blue light flashes） If signal cannot connect in 2 seconds, Once the FCS the FCS will start to uncontrolled receives the signal, Aircraft fly away, return.
Page 36: Low Voltage Alert
(3)If GPS has a poor signal or GPS does not work，out of control will not return. Note ： After starting the motor, but it does not let the aircraft take off, it is dangerous to turn off the RC in this case, the aircraft may take off, so please do not try this.
Page 37 official website. according to each step. Assistant software supports Win7, Win8（32 or 64 ）operating system. Assistant software 1. Turn on the computer, give power to the product (some function adjustment need not give the power to the aircraft) connect to your computer through Micro-USB ，do not disconnect the USB before the parameter testing.
Page 38 For more information, please refer to our website or APM official website about APM Copter detail introduction. 38 |...
Page 39 Aircraft parameters Parameters Range Operating Temperature -10°C ～ 50°C Supported Battery Only 3S LiPo Takeoff Weight <1400g Hovering Accuracy（GPS mode） Vertical：± 0.8m ；Horizontal：± 2.5m Max Yaw Angular Velocity 300°/s Max Tilt Angle 30° up：6m/s；down：2m/s Max Ascend/Decline speed Max Flight Velocity 20m/s Diagonal distance (motor center to 400mm...
