User Manual
Installation Guide

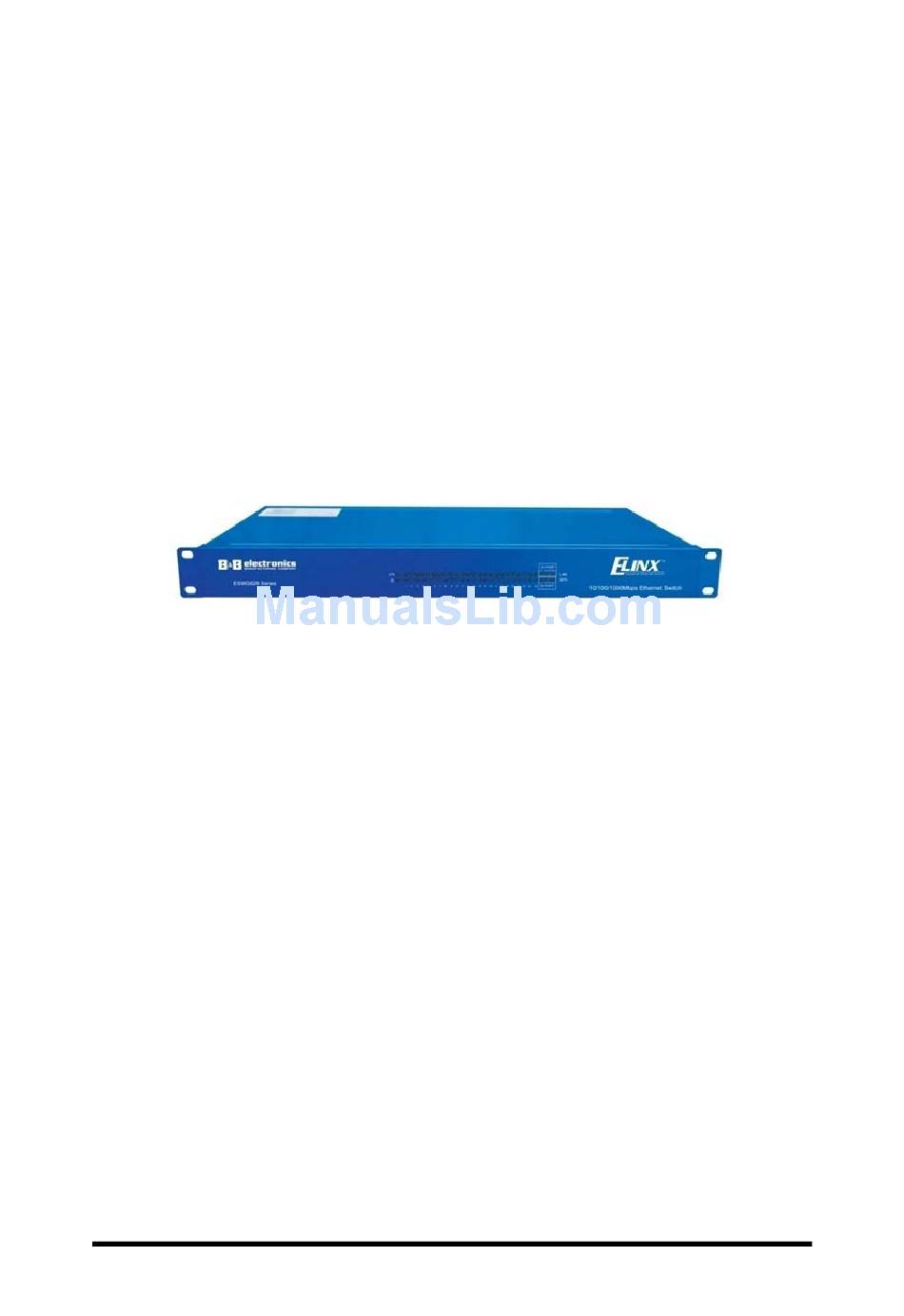

Elinx ESW726 Family
26 Port 19 inch
Managed Rackmount Ethernet Switch
ESW726series-1211ig
Installation Guide Documentation Number:
1
B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com
B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com
Advertisement
Table of Contents
Related Manuals for Elinx ESW726
Summary of Contents for Elinx ESW726
-
Page 1: Installation Guide
Installation Guide Elinx ESW726 Family 26 Port 19 inch Managed Rackmount Ethernet Switch ESW726series-1211ig Installation Guide Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com... - Page 2 ESW726 Series Documentation Number: ESW726series-1211ig International Headquarters: 707 Dayton Road Ottawa, IL 61350 USA Phone (815) 433-5100 Website: www.bb-elec.com Sales e-mail: orders@bb-elec.com Technical Support: support@bb.elec.com – European Headquarters B&B Electronics Westlink Commercial Park Oranmore, Co. Galway, Ireland Phone +353 91-792444 Website: www.bb-europe.com...
-
Page 3: Table Of Contents
Table of Contents OVERVIEW ..............1 PACKAGE CHECKLIST ..........2 ESW726 FAMILY ............2 Features ....................... 2 Front Panel ....................2 Back Panel ....................3 LED Description ..................3 Mounting Options ..................4 Dimensional Drawing ................. 4 PORTS ................4 RJ45 ...................... -
Page 4: Specifications
Default Security ..................11 SPECIFICATIONS ............11 ESW726series-1211ig Installation Guide Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com... -
Page 5: Overview
Industrial communication requirements. The ESW726 Managed family offers a variety of Industrial models. The switch configurations range from 26 ports RJ45 copper to RJ45 copper with multi mode, single mode, and or SFP gigabit ports. -
Page 6: Package Checklist
Package Checklist The ESW726 will ship with the following items. • B&B Managed Switch • AC Power Cord (AC Models only) • Serial cable for console port • Installation Guide • CD-with User’s Manual ESW726 Family Features • 10Base-T, 100BaseTX, 100BaseFX,1000BaseSX/LX/LHX/ZX，... -
Page 7: Back Panel
Back Panel On / OFF Switch Fault Relay 10. Power Input 11. RJ45 Port 12. Combo SFP or RJ45 Port LED Description Status Description Green Power Applied No power Green System Ready System down Green 100Mbps 10/100 Copper Upper LED 10Mbps Green Link... -
Page 8: Mounting Options
Mounting Options Dimensional Drawing Ports RJ45 The RJ45 copper ports support auto MDI/MDIX operation. This feature allows network connections to computers, servers, or other switches using straight-through or crossover cables (See Figure below). Straight-through cable connections: pins 1, 2, 3 and 6, at one end of the cable, are connected straight-through to pins 1, 2, 3 and 6 at the other end of the cable. -
Page 9: Gigabit Copper/Sfp (Mini-Gbic) Combo Ports
Gigabit Copper/SFP (mini-GBIC) COMBO ports The ESW726 can be ordered with up to two auto-detect Gigabit copper/SFP combo ports. The Gigabit Copper (10/100/1000Mbps) ports use Category 5e or above UTP/STP cable for connection. The SFP slots can be used to connect the network segment with single or multi-mode fiber. - Page 10 ESW726series-1211ig Installation Guide Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
-
Page 11: Sfp Installation And Connection
SFP Installation and Connection The SFP module is terminated with LC connectors. For installation, the module needs to be adjusted so as to be aligned correctly and then moved into the SFP slot until a click is heard. ESW726series-1211ig Installation Guide Documentation Number: B&B Electronics Mfg Co Inc –... - Page 12 SFP Module Inserted LC Fiber Cable Connection ESW726series-1211ig Installation Guide Documentation Number: B&B Electronics Mfg Co Inc – 707 Dayton Rd - PO Box 1040 - Ottawa IL 61350 - Ph 815-433-5100 - Fax 815-433-5104 – www.bb-elec.com B&B Electronics – Westlink Commercial Park – Oranmore, Galway, Ireland – Ph +353 91-792444 – Fax +353 91-792445 – www.bb-europe.com...
-
Page 13: Cabling
To remove SFP modules lower removal bar and firmly pull transceiver out. Cabling Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable. 10Mbps: Category 3, 4, 5 or great cable 100Mbps: Category 5 or great cable 1000Mbps: Category 5e or great cable Maximum cable length: 100 meters (328ft.) 100Base FX SC Fiber The use of fiber optics has become prevalent in Industrial Ethernet network... -
Page 14: Fiber Connection Illustration
Fiber connection illustration Power Input Connections The ESW726 series accepts 18V～36VDC input voltage using terminal blocks. DC Power Connections Fault Relay +Vin FG –Vin Relay (Normally Open) Default Settings Console Port (DB9 Male) • Serial baud rate: 115200 • Data Bits: 8 •... -
Page 15: Serial Cable Pin Out
Serial Cable Pin out PC Serial Console Port Port DB 9 Network Settings • IP address: 192.168.118.100 • Subnet Mask: 255.255.255.0 • Gateway: 192.168.118.1 Default Security • User Name: admin • Password: admin VLAN • All Ports are members of VLAN 1 (management VLAN Specifications Power Requirements Voltage Range... - Page 16 Wavelength 1310 nm Cable 62.5/125 um TX power -23.5 to -14dbm RX Sensitivity <-35dbm Connector Type Single Mode Fiber 100Base-FX Distance 20 km Wavelength 1310 nm Cable 9/125 um TX power -15 to -8dbm RX Sensitivity < -35dbm Connector Type SFP Ports Mini-GBIC SFP Ports Connector Type...
- Page 17 EN61000-4-3 (RS), level 3 10V/meter EN61000-4-4 (EFT), level 3 Signal ports +/- 1kV D.C. Power ports +/- 2kV A.C. Power ports +/- 2kV Earth ground ports3 EN61000-4-5 (Surge), level Signal ports +/- 1kV D.C. Power ports +/- 0.5kV A.C. Power ports +/- 2kV EN61000-4-6 (CS), level 3 Signal ports...
