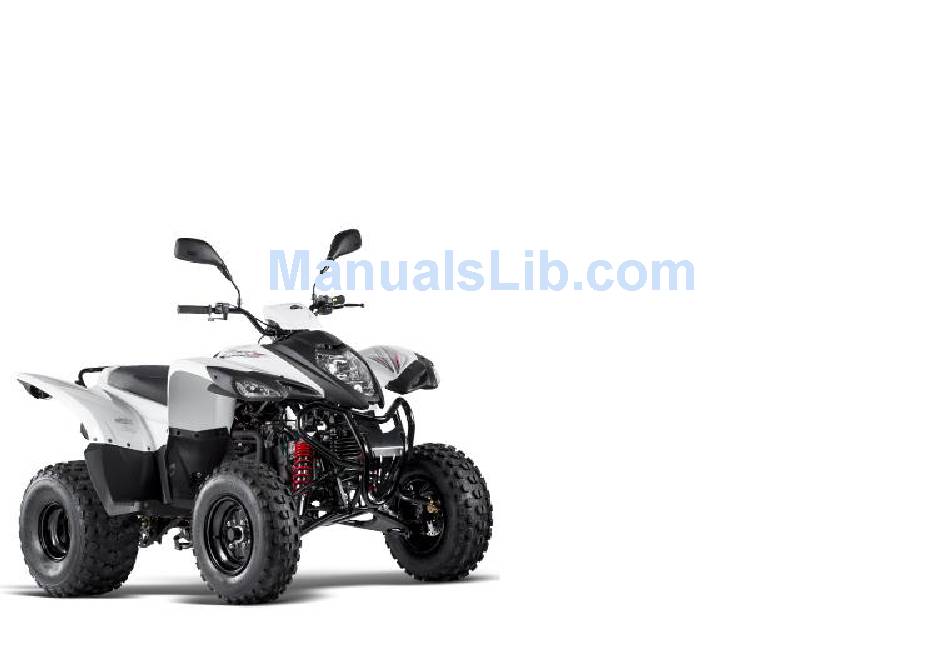

HERCHEE ATV-150S Owner's Manual

Road version
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H
E
R
C
H
H
E
R
C
H
H
E
R
C
H
M
O
T
O
R
S
C
O
O
M
O
T
O
R
S
C
O
O
E
E
E
E
E
E
T
E
R
T
E
R
A
T
V
-
1
5
A
T
V
-
1
5
R
O
A
D
R
O
A
D
V
E
R
S
I
V
E
R
S
I
O
W
O
W
1
0
S
/
U
0
S
/
U
V
E
R
S
I
V
E
R
S
I
O
N
O
N
N
E
R
'
S
M
N
E
R
'
S
M
O
N
O
N
A
N
U
A
L
A
N
U
A
L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATV-150S and is the answer not in the manual?

Questions and answers

Summary of Contents for HERCHEE ATV-150S

  • Page 1 ’ ’...

  • Page 2: Table Of Contents

    CONTENTS Page 1. Foreword 2. Warning 3. Safety Notes 4. Specifications 5. Periodical Check and Services 6. Check Period to Operate 7. Operation 8. Correct Way of Driving 9. Abnormalities and Trouble Shooting 10. VIN number and service record 11. Assembly Instruction 12.

  • Page 3: Foreword

    FOREWORD May we, the manufacturer, take this opportunity to thank you for choosing our ATV to serve you. This Owner’s Manual is prepared for you the details as to operate and maintenance necessarily to perform in safety. Therefore, we would like you to read the manual before operate the vehicle.

  • Page 4: Warning

    WARNING ˙OPERATOR ONLY This vehicle load limit and seating configuration is designed for operator only. It is not safe for carrying a passenger. ˙ADULT SUPERVISION AND INSTRUCTION ARE REQUIRED ˙ALWAYS WEAR A HELMET ˙READ THIS OWNER’S MANUAL CAREFULLY ˙DO NOT OPERATE THIS VEHICLE IN THE NIGHT. IT’S DANGEROUS TO DRIVE ON AN UNCLEAR ROAD CONDITION.

  • Page 5: Safety Notes

    SAFETY NOTES ★ Don’t allow your child to ride without your supervision. ★ Keep a safety distance between your vehicle and other vehicles. ★ This vehicle is designed to be operated only on level, off road surfaces, free of obstacles. ★...

  • Page 6: Specifications

    SPECIFICATIONS ENGINE CAPACITY ATV-150S ATV-150U TYPE OIL-COOLED，4 STROKE STARTING ELECTRIC LUBRICATION Wet sump, Oil Pump TRANSMISSION CVT with reverse SPARK PLUG NGK, CR8E BATTERY 12V-7AH OIL CAPACITY 1.2 Liter FUEL TANK 8.2 Liter OVERALL LENGTH 1770 mm 1790 mm OVERALL WIDTH...

  • Page 7: Periodical Check And Services

    PERIODICAL CHECK & SERVICES Maintenance Schedule The maintenance intervals in the following table are based upon average riding conditions. Riding in unusually dusty areas, require more frequent servicing. Time of service Initial Service Monthly Quarterly Yearly Items (first week) (1000km) (3000km) (6000km) Air cleaner...

  • Page 8: Check Period To Operate

    CHECK PRIOR TO OPERATE Inspect your vehicle every day before you run it. It only takes a few minutes to check and may save your life. ★ Check the tires condition and pressure. ★ Check the nuts, bolts and other fasteners. ★...
  • Page 9 CHECK PRIOR TO OPERATE (1) Check and / or Refill Oil ： CAUTIONS ＊ Be sure to have sufficient oil, and the cap is installed correctly. ＊ Total oil capacity：1.0Liter ＊ Prescribed oil: 4-stroke engine oil only, synthetic type is recommended. ＊...

  • Page 10: Rear 21X10

    CHECK PRIOR TO OPERATE (1) Check tires pressure ＊ Check tire pressure if they are normal. Tire size: front 21 x 7-10 Rear 21x10-8 Recommended tire pressure: 10 psi (0.7 kgf/cm Max. pressure : 15 psi (1.05 kgf/cm Min. pressure : 3.5 psi (0.245kgf/cm ※...
  • Page 11 CHECK PRIOR TO OPERATE (2) Check battery ＊ Open the seat. ＊ Remove positive and negative terminals (negative first). ＊ Remove battery and check voltage. ＊ Normal voltage：12V and above ＊ Keep terminals clean constantly. ＊ Charge the battery base on the instruction. (3) Check front and rear shock absorbers.
  • Page 12 CHECK PRIOR TO OPERATE Loosening the fastening screw of swing arm. Swing the rear axle-bearing holder back and force to reach suitable chain tension. Loosening the lock nuts and moving the chain tension plate by the both screws on the plates evenly which can adjusts the chain tension at more or less 10-20mm space of the deviates ion from horizontal.
  • Page 13 CHECK PRIOR TO OPERATE PREVIOUSLY INSPECTION FOR THE SAKE OF SAFETY AND TO PREVENT VEHICLE DAMAGE, THE PREVIOUSLY INSPECTION IS ABSOLUTELY REQUIRED. CAUTION： The temperature of engine and exhaust muffle is very high. Be careful while checking engine oil to avoid burns. A.

  • Page 14: Operation

    OPERATION MAIN SWITCH ＊ To turn off the engine. ＊ The key can be extracted. ＊ To start the engine. ＊ The key can not be taken out. ＊ To operate the head light. ＊ The key can not be taken out.
  • Page 15 OPERATION ELECTRIC STARTER ＊ Cranks the engine. ： CAUTIONS ※ Don’t push down again the starter button as the engine is running. ※ Don’t press the starter button more than 10 seconds when start up. HEADLIGHT BEAM SWITCH Low beam ＊...
  • Page 16 OPERATION HORN BUTTOM ＊ Turn on main switch and press down the horn buttom, the horn will sound. SIGNAL LIGHT SWITCH  Right signal light flashing indicates turning to the right.  Left signal light flashing indicates turning to the left. ：...
  • Page 17 OPERATION HAZARD WARNING AWITCH HAZARD ＊ The 4 direction lights will start blinking together. ˙ STOP...
  • Page 18 NOMENCLATURE & OPERATION INSTRUMENTPANEL HIGH BEAM INDICATOR SIGNAL INDICATOR SIGNAL INDICATOR SPEED ODOMETER REVERSE Drive INDICATOR Neutral...
  • Page 19 OPERATION The operation way for two mode override switch Option 1. Press the bottom to (ON) position to perform reverse override function...
  • Page 20 OPERATION The operation way for two mode override switch Option 2. Press the bottom（ON） to perform reverse override function...
  • Page 21 OPERATION FRONT / REAR BRAKE The foot brake pedal is located on the right side in front of the foot rest. When step on the brake pedal, 4 wheels will stop at same time. Break pedal...
  • Page 22 OPERATION REVERSE GEAR NEUTRAL REVERSE FORWARD SHIFT ROD Note：Please stop on brake pedal (apply foot brake) before shifting the lever.
  • Page 23 OPERATION PARKING BRAKE 1. Pull the left brake lever firmly. 2. Press the lever downward to the fixed brake position. 3. As brake position is fixed, rear wheels will lock. Brake Release Parking ＊ Pull the brake lever tightly, the fixed lever brake will bound off.
  • Page 24 OPERATION ENGINE START-UP & CAUTIONS ＊ Check oil and fuel prior to start-up. 1. Turn “Main Switch” on. 2. Start engine Use of electric starter, throttle lever should be at the “close” state and pull the left brake lever. Then press the starter button to start. ：...
  • Page 25 ＊ When the arrow mark on the lever pointed at “ON” position, the fuel is supply under normal condition. ＊ When the arrow is pointed at “OFF”, the fuel can not supply. ＊ When arrow mark pointed at “RES”, ATV-150S please refill the gasoline as soon as possible.

  • Page 26: Correct Way Of Driving

    CORRECT WAY OF DRIVING START OF DRIVING Press the throttle lever slowly to control your speed. ＊ Acceleration is to increase the speed. Slowly press the throttle lever while driving on a slope. It will activate the engine power. ＊ Deceleration is to decrease the speed. Turn off the accelerator backward will do.
  • Page 27 CORRECT WAY OF DRIVING STOP OF THE VEHICLE Approaching to the parking point. ＊ Release the accelerator and apply both front and rear wheel brakes while the vehicle is stopped. Complete stop ＊ Engine will stop as the main switch turns to “ OFF ” . ＊...

  • Page 28: Abnormalities And Trouble Shooting

    ABNORMALITIES AND TROUBLE SHOOTING If the engine fails to start. Engine fails to keep running. Try to diagnose these malfunctions yourself first as follows. ＊ Check the gas tank if fuel is available and sufficient. ＊ Whether the procedure for engine start-up is correct Contact the local dealer as soon as possible for checking on any abnormality of your vehicle.

  • Page 29: Vin Number And Service Record

    PRODUCT IDENTICIFICATION NUMBER Please record the frame and engine number for reference. The frame number (VIN) is stamped on the The engine number is engraved on bottom of right side of frame. left crankcase. FRAME NO. RFL ENGINE NO._________________________ FRAME NUMBER ENGINE NUMBER...
  • Page 30 INSPECTION AND SERVICE DATE PURCHASED: _________________ AUTH. DEALER:______________________ INSPECTION(1) INSPECTION(2) INSPECTION(3) DATE:__________________ DATE:__________________ DATE:__________________ ___________________ ___________________ ___________________ DEALER DEALER DEALER INSPECTION(4) INSPECTION(5) INSPECTION(6) DATE:__________________ DATE:__________________ DATE:__________________ ___________________ ___________________ ___________________ DEALER DEALER DEALER...
  • Page 31 INSPECTION AND SERVICE INSPECTION(7) INSPECTION(8) INSPECTION(9) DATE:__________________ DATE:__________________ DATE:__________________ ___________________ ___________________ ___________________ DEALER DEALER DEALER INSPECTION(10) INSPECTION(11) INSPECTION(12) DATE:__________________ DATE:__________________ DATE:__________________ ___________________ ___________________ ___________________ DEALER DEALER DEALER...

  • Page 32: Assembly Instruction

    ASSEMBLY INSTRUCTION （For ATV-150） 1. Take out the battery and fill with acid liquid. Pre-charge the battery will extend its life. The preparation and charge procedure is based on the battery’s instruction. 2. Install the rear wheels and parts in the following order: A.
  • Page 33 5. Set the handle bar into the steering base. Tie-up the 4 hex-socket bolts. 6. Pull the seat-lock and remove the seat. Install the battery with the red wire to positive (+) and the black wire to the negative (-). 7.

  • Page 34: Pre-Delivery Inspection

    P.D.I. (Pre-Delivery Inspection) (For ATV-150)  1. Record the frame and engine number into the owner’s manual.  2. Check that all tires have correct pressure specified on the tire or in the owner’s manual.  3. Engine oil ( 4 stroke, 10W/40 or Grade SAE40 ) is enough ...

This manual is also suitable for:

Atv-150u
