Summary of Contents for Gold Medal Simply Sno 1813
- Page 1 Part No. 22136 September 2009 Simply Sno Instruction Manual Model #1813 Cincinnati, OH 45241-4807 USA...
- Page 2 Simply Sno SAFETY PRECAUTIONS #1813...

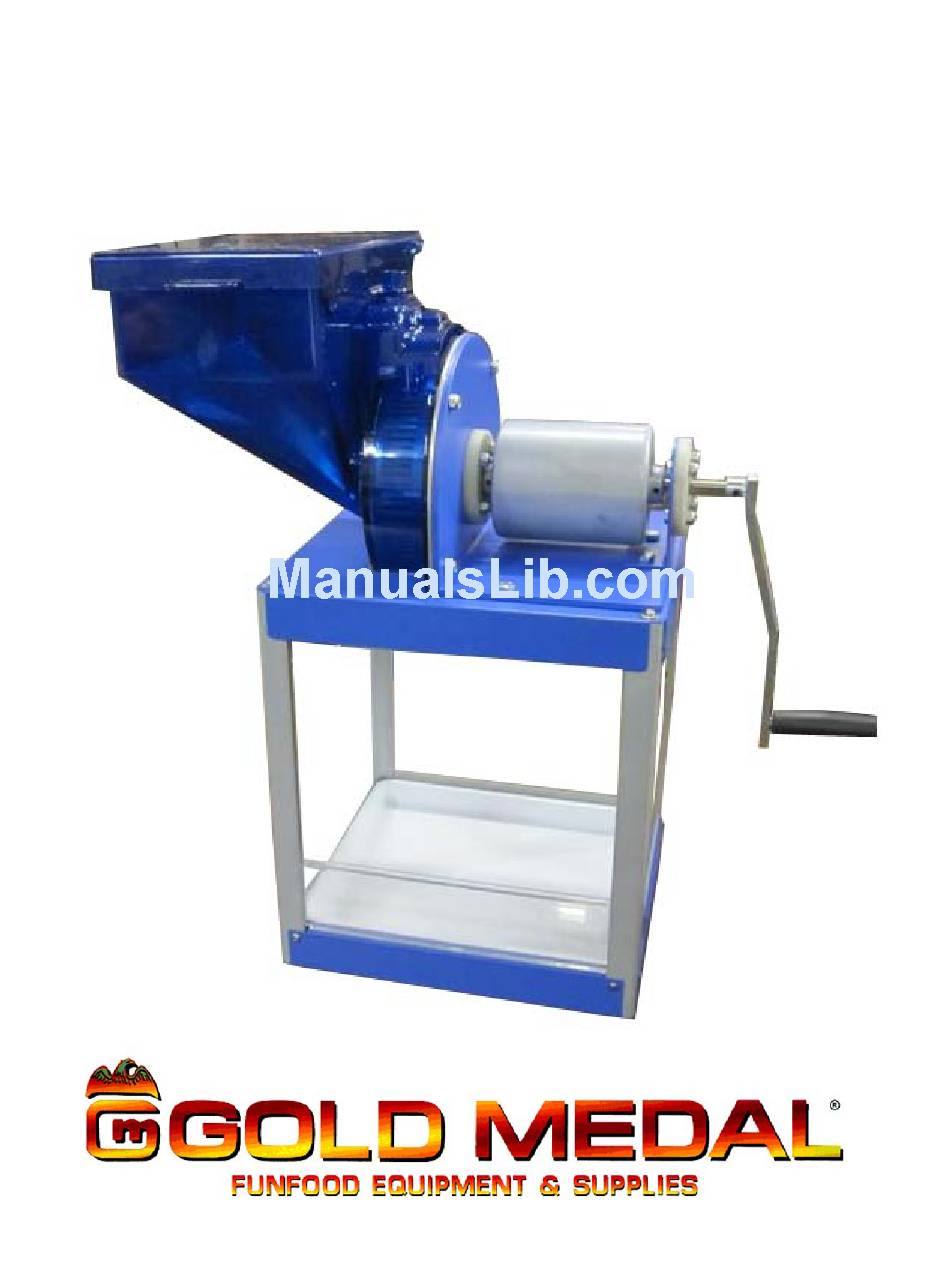

- Page 3 Simply Sno INSTALLATION MACHINE DESCRIPTION The Simply Sno Shaver is a manual ice shaver. The Shaver consists of the hopper, which houses the band shaving blade, impeller, hopper lid, counterweight, and the base cabinet. ICE REQUIREMENTS The Simply Sno Shaver can take ice cubes small or medium in size if you break the block into pieces approximately 2 to 3 inches in size.
- Page 4 Simply Sno MAINTENANCE INSTRUCTIONS #1813...
- Page 5 3. Please include the machine’s model name, serial number, and date of manufacture (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 (800) 543-0862...
- Page 6 Simply Sno INSTALLING NEW SHAVER BLADES Inspect your equipment before replacing the blades. Use a flashlight to examine the blades in the shaver body. If the blades appear to be nicked or bent, then the blades should be replaced. Follow this procedure: 1.
- Page 7 Simply Sno MODEL 1813 ASSEMBLY Hopper Lid p/n 12734B Elec B cover p/n 12735B Counter Weight p/n 23245 Set Screw Crank And Handle Hopper p/n 23246 p/n 12729B Shave Band Blade p/n 12728 Sno Pan p/n 23241 Drain Hose p/n 23257 Side Glass p/n 23251 Ice Shield...
- Page 8 Simply Sno WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
