Summary of Contents for EMIX EMKP-8001

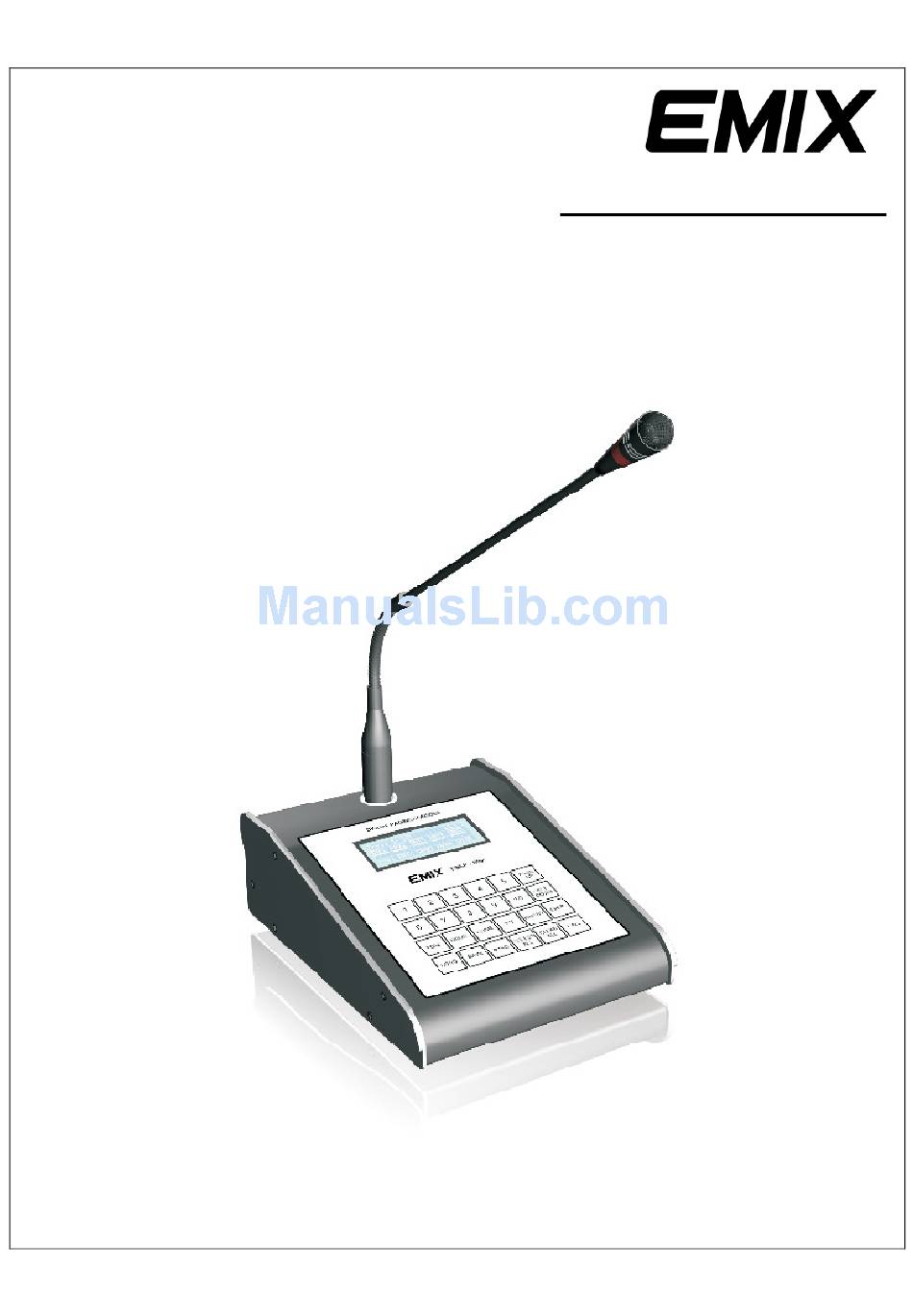

- Page 1 OPERATIONAL MANUAL EMKP-8001 180 Zones Paging Microphone Version 1.4...
-
Page 2: Product Overview
Furthermore, this EMKP-8001 equipped with a cardioid condenser microphone which offers minimum sensitivity at an angle of 180 degrees, reducing pick up of sounds from the rear. - Page 3 • 9nos of grouping can be saved and recalled from the internal memory. • By pressing the Synchronize button and send all the setting to other EMKP-8001 except priority level. • Cardiod condenser microphone with tightly controlled unidirectional polar pattern provides excellent ambient noise control allowing the wanted speech stand out from the background of noisy confusion.
- Page 4 Top View and Rear View Figure 1.1 Top view of the digital paging console Figure 1.2 Rear view of the paging console...
- Page 5 Figure 1.3: Bottom view of the Digital Paging Microphone...
- Page 6 Keypad and Rear Panel Indication EMKP-8001 Digital Paging Microphone 1.1 Keypad Indicator LCD Display – 4 X 20 Characters LCD to display system status & message easy for reading. Zones setting and zone grouping are displayed in multi pages for easy viewing Keypad –...
-
Page 7: Rear Panel Indicator
Zone Selection – To select zone within every page menu. 1 page contain 10zones for example 1 page is zone 1 to zone 10, press Page Down (3) will be next 10 zones e.g. zone 11 to zone 20. 1.2 Rear Panel indicator Mic sensitivity –... - Page 8 2.0 Installation Diagram / Schematic Diagram Figure 1.3: There are 4nos of 180zones paging console connected up with 2nos of 12CH Zone selector EMZS-8012 through RJ45 to line converter. All of the paging consoles have a loop through connection from the last paging console to zone selector. From the single line shown above, there is total 7nodes taken up for the system.
- Page 9 Unit Setup - Zone configuration onfiguration Press Zone button to enter zone setting to enter zone setting menu as below:- Figure: Zone setting. By default, number of zone is set to 180 zones. Figure: Zone setting. By default, number of zone is set to 180 zones. Press Page Up or Page Down button to select total usage number of zone in the system to select total usage number of zone in the system...
- Page 10 3.1 Unit Setup - Delay (Paging period timer) configuration Delay (Paging period timer) configuration The purpose of setting up the timeout delay to prevent the microphone accidently turned on and left The purpose of setting up the timeout delay to prevent the microphone accidently turned on and left The purpose of setting up the timeout delay to prevent the microphone accidently turned on and left unoccupied after an announcement has been made.
- Page 11 3.2 Unit Setup - Chime configuration Chime configuration This unit has built-in 7type of different different chime, usually user given to choose their desire of chime through this chime, usually user given to choose their desire of chime through this menu.
- Page 12 3.3 Unit Setup - PTT configuration PTT configuration To select momentary (press to talk) or toggle press to on and press to off when the user used for paging. to talk) or toggle press to on and press to off when the user used for paging. to talk) or toggle press to on and press to off when the user used for paging.
- Page 13 3.4 Unit Setup - Priority configuration configuration This is to set the priority level of the paging microphone. level of the paging microphone. Priority 1 is the highest while 7th is the highest while 7th is the lowest priority. Press Priority button to set device priority: to set device priority: Once confirm the Priority level setting press CALL button it will shown as below:- Once confirm the Priority level setting press...
- Page 14 3.5 Unit Setup - Group SAVE setting setting Zone grouping consider a pre-configured action which means user can select the require zone and configured action which means user can select the require zone and configured action which means user can select the require zone and group the selected zone together.
- Page 15 3.7 Unit Setup - Synchronize setting setting Press SYNC button to synchronize device setting with other devices. to synchronize device setting with other devices. There are 2 different different settings for user to select for synchronize: Press numeric keypad [No.1 or No.2] ] to select which setting is wanted to be sending to another paging ng is wanted to be sending to another paging console.
- Page 16 4.0 - Emergency (Immediate) paging Emergency (Immediate) paging user has to press EMERGENCY. All zones will be automatically selected and paging To do immediate paging, user has to press . All zones will be automatically selected and paging will be activated once EMER button has been pressed: ton has been pressed: Notes: This is the highest priority, no matter what is your paging console priority level setting was set Notes: This is the highest priority, no matter what is your paging console priority level setting was set...
-
Page 17: Technical Specifications
Technical Specifications Input voltage 24VDC Max. Power consumption 100mA Zoning Capacity >180Zones Data Communication RS485 protocol Input connectors Double RJ-45, via CAT-5 cable Operation distance up to 1.2KM data communication Chimes Settings 8nos type of chime selection Display 4 x 20CH LCD with blue back light Frequency response 100 Hz to 12 KHz S/N ratio... - Page 18 Only EMIX Technical Service Centers are allowed to make warranty repairs. Send the equipment directly to AV Electronics Marketing Sdn Bhd, or contact us for a list of Emix Technical Centers. This warranty is not valid if repairs are performed by unauthorized personnel or service centers.
- Page 19 EMIX products must only be used for the purpose they were intended by the manufacturer and in conjunction with this operating manual. AV ELECTRONICS MARKETING SDN BHD cannot accept any liability whatsoever for any loss or damages caused by service, maintenance or repair by unauthorized personnel, or by use other than that intended by the...
- Page 20 Professional Public Address System www.emix.com.my...
