HOW TO CONTROL

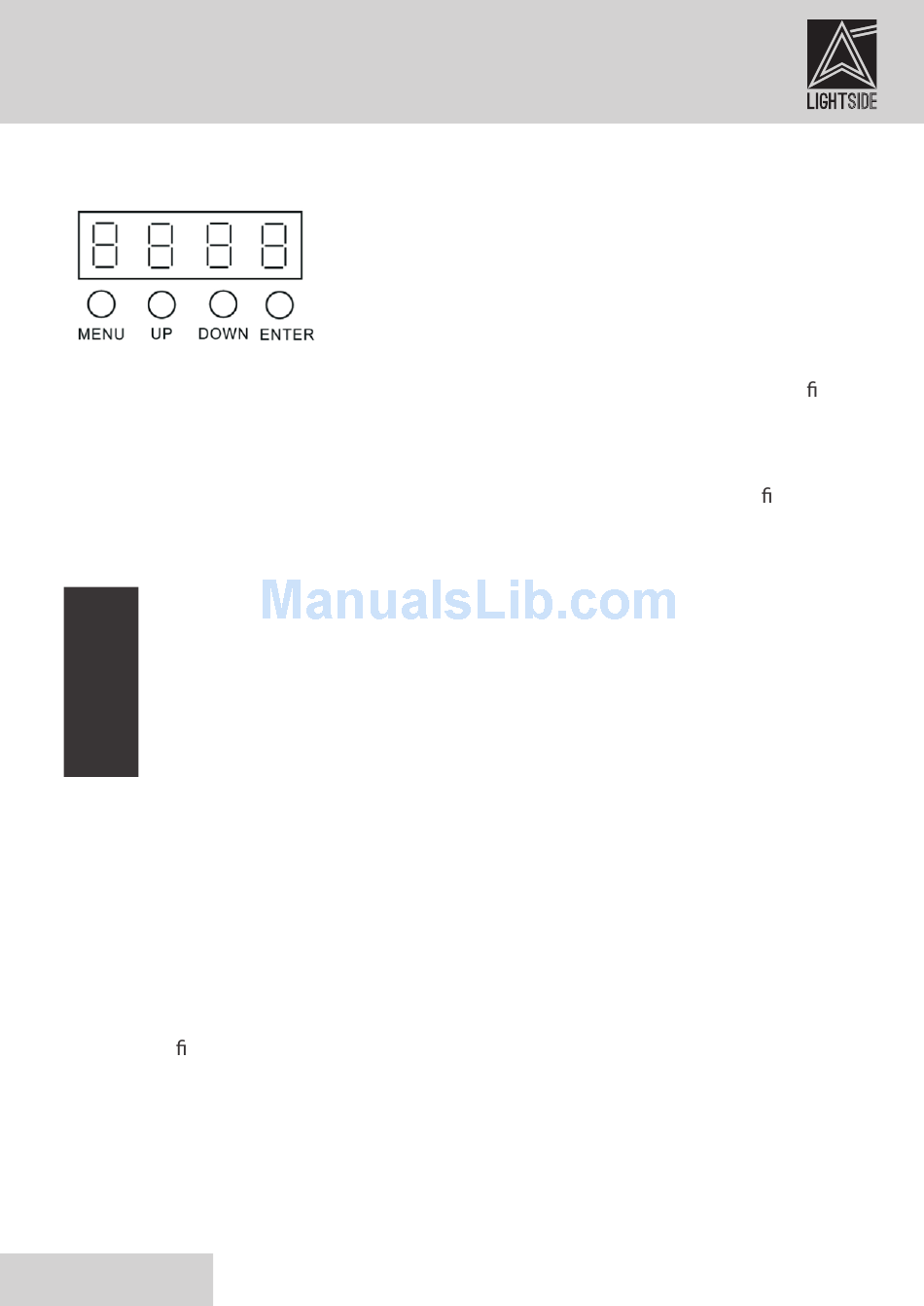

Press the MENU button until you get to the desired mode and press enter to con rm your
selection.
Use the UP & DOWN buttons to either set the DMX address (If you have selected one of
the DMX modes), or the speed of the AUTO modes (If you have selected one of the auto
modes), or the color (If you have selected manual mode). Press enter to con rm the
setting.

FUNCTION TABLE

d001
d512 4ch Mode
A001
A512 8ch Mode
FF01
A512 Auto Mode 1 (RGB Color Gradual Change)
CC01
CC99 Auto Mode 2 (RGB Color Jump Change)
EE01
EE99 Manual Mode (Program Color Selection)
dEoo
dEoo Demo Mode
SoUd
SoUd Sound Mode

MASTER/SLAVE OPERATION

In Master/Slave mode you can link a maximum of 32 units together in a daisy-chain. You
must choose one of the units as a Master and the other units will follow it in synchronous
operation.
Master unit: In Auto mode or music controlled
SLAVE units: DMX address should be set from 001

DMX512 OPERATION

Signal connection:
The unit is tted with 3-pin XLR in & output sockets
The pins are assigned as follows
Pin 1: Ground shield
Pin 2: Data(-) signal
Pin 3: Data(+) signal
