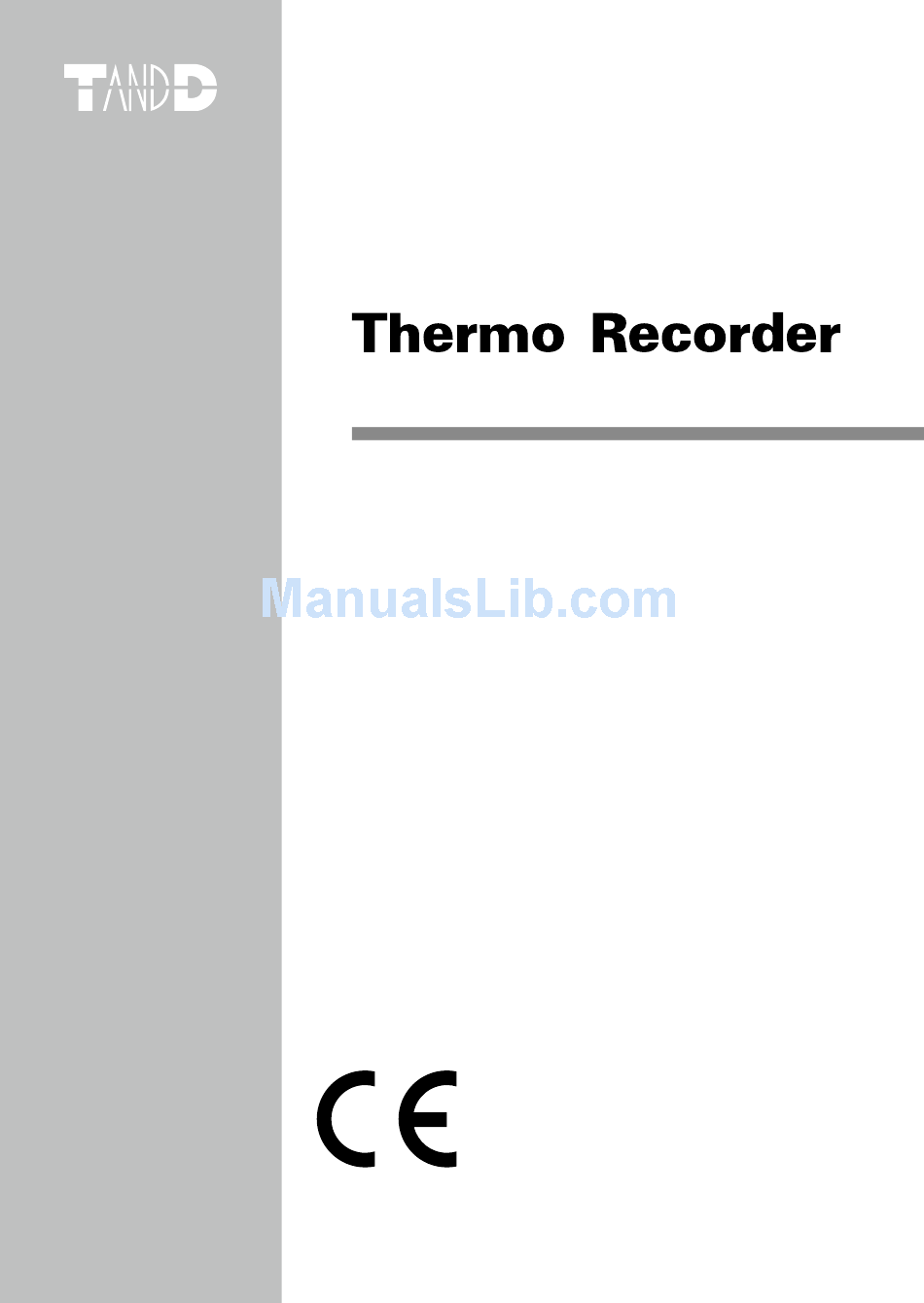

- Page 1 TR-73U User’s Manual Thank you for purchasing our product. Carefully read this instruction manual before using this unit. © Copyright T&D Corporation. All rights reserved. 2015.09 16504480007 7th Edition...
-
Page 3: Notices About This User's Manual
Important Notices and Disclaimers In order to properly use this product, please carefully read this manual before using. T&D Corporation accepts no responsibility for any malfunction of and/or trouble with this product or with your computer that is caused by the improper handling of this product and will deem such trouble or malfunction as falling outside the conditions for free repair outlined in the attached warranty. -
Page 4: Compliance Information
Compliance Information Radio, EMC and Safety Regulations This device complies with Part 15 of the Federal Communications Commission (FCC) rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Table Of Contents
Compliance Information ................2 Safety Precautions and Instructions ............4 To ensure safety obey all of the following warnings........4 Explanation of Symbols ................4 About Thermo Recorder TR-73U ............10 Outline ......................10 Basic Functions ..................10 Package Contents .................. 12 Before Using….................. -
Page 6: Safety Precautions And Instructions
Safety Precautions and Instructions To ensure safety obey all of the following warnings The following items should be strictly obeyed for the safe usage of this unit, and for protecting yourself and other people from bodily harm and/or damage to property. Before using make sure to carefully read, understand and follow the safety rules and precautions for our products as outlined below. - Page 7 WARNING When installing and using this product, make sure to follow all warnings and directions from your computer manufacturer. Do not take apart, repair or modify the main unit. Doing so may cause fire or electrocution. If water or a foreign body enters into this unit, immediately remove the batteries and stop using.
- Page 8 CAUTION This unit is not water-resistant. If the unit gets dirty, wipe it with a clean cloth and a mild detergent. Do not expose the unit to harmful gases or chemicals. It may cause corrosion and/or other danger to the unit and to people handling the unit. Do not use batteries other than specifies.
- Page 9 Do not use or store the Thermo Recorder in any of the following places. Doing so may cause electrocution, fire and/or other adverse effects to the device and/or your computer. -Areas exposed to direct sunlight This will cause the inside of the device to become overheated and may cause fire, deformation, and/or other damage including malfunction.
- Page 10 Cautions about using the Sensors Cautions about using the temperature-humidity sensor TR-3100 The sensor can measure temperature within the range of 0 to 50°C and humidity within the range of 10 to 95%RH. Only use the sensor within these ranges. If extremely severe temperature changes occur, the humidity measurements may appear abnormal.
- Page 11 Cautions about using the Sensors [Handling the temperature-humidity sensor] - The service life of humidity sensors can vary greatly depending on operating environment.Periodic calibration may be required. During use the temperature-humidity sensor will accumulate impurities (dirt) on the surface of the sensor is being used in a bad environment (smoky or dusty places) it may be necessary to change the sensor sooner.
-
Page 12: About Thermo Recorder Tr-73U
-Temperature Measuring Range: 0 to 50°C (with supplied temp-humidity sensor) The TR-73U with the internal temperature sensor can measure and record in a range of -10 to 60°C, but by purchasing one of our optional temperature sensors it is possible to measure and record in the wider range of -40 to 110°C. - Page 13 NOTE: - Battery life varies depending upon the type of battery, the measuring environment, the frequency of communication, and the ambient temperature in which it is used. Specifications and explanations used in this User's Manual are based on operations carried out with a new battery and are in no way a guarantee of your actual battery life.
-
Page 14: Package Contents
Package Contents Thermo Recorder TR-73U x 1 MS-Windows 2000/Xp MS-Windows 98SE/Me Copyright 1995-2006 TandD Corporation. All rights reserved. for TR-7U,RTR-5,RVR-52,RTR-57C/57U TR-5,TR-7,TR-57C/57U Temperature-Humidity Sensor T&D Recorder for Windows TR-3100 x 1 Software CD-ROM x 1 User's Manual (Warranty) x 1 Software User's Manual x 1... -
Page 15: Before Using
T&D Recorder for Windows. In order to use a USB connection to communicate between the TR-73U and a PC, it is necessary to install the software and the USB driver. Before connecting the TR-73U to the computer with a USB cable, make sure to first install the software. -
Page 16: Part Names And Functions
INTERVAL : Pressing this button will display the currently set recording interval. REC/STOP : Pressing this button will start or stop recording. LEFT SIDE RIGHT SIDE Sensor Jack USB Cable Jack Power Switch Serial Cable Jack *1 *1: Not supported in TR-73U. -
Page 17: Lcd Display
LCD Display 1. Recording Mark The recording condition will appear. ON : Recording in progress. BLINKING : Waiting for programmed start. 2. Data Capacity Scale After every 2000 readings the scale will be marked from left to right. 3. COM Mark This will appear when data is being sent or received. -
Page 18: Installing The Battery
Installing the Battery Remove the battery cover form the back of the unit. Insert 1 AA alkaline battery, making sure that the + and – are in the correct direction. *Always use a new battery. Replace and close the battery cover. [Changing the Battery] When battery power becomes low, a battery life warning signal will appear in the unit's LCD display. -
Page 19: Turning On The Power
Turning ON the Power By holding in the POWER switch at the left side, the unit will turn on. POWER Switch [Turning OFF the Power] By holding in the POWER switch, the unit will turn off. - During recording, the power cannot be turned off. Please stop recording first and then turn off the power. -
Page 20: Connecting The Sensors
Connecting the Sensors Connect the Sensor *To avoid poor connections, be sure to push the sensor connector securely into the jack. * When using the temperature-humidity sensor in environments where the temperature is 0 to 15 and humidity under 30 RH, there may occur changes in measurement readings. -
Page 21: Starting Recording From Main Unit Button
Starting Recording from Main Unit Button By pressing the <REC/STOP> button on the main unit you can start a recording session immediately. * If you wish to make changes to the device name, channel name, recording mode or to any other recording conditions, you must make those settings by connecting the device to your computer. -
Page 22: Setting Recording Interval From Main Unit Button
Button You can make or change recording interval settings from the <INTERVAL> button on the front of the TR-73U main unit. * During recording or while waiting for a programmed recording to start via the provided software, there are not settings to be made. -
Page 23: Changing The Lcd Display Mode From Main Unit Button
Unit Button You can make or change the LCD display settings from the <DISPLAY> button on the front of the TR-73U main unit. By pressing the <DISPLAY> button on the front of the unit, you can change the screen display. -
Page 24: Specifications
Specifications Device Type TR-73U Sensor TR-3100 (External) (*1) Barometric Pressure Sensor (Internal) Thermistor Polymer Resistance Measurement Temperature 1ch Humidity 1ch Barometric Pressure Channels Units of °C, °F Measurement Measurement 0 to 50°C (Supplied 10 to 95 %RH 750 to 1100 hPa... - Page 25 Software T&D Recorder for Windows (TR-5, 7xU) Compatible OS (*4) Microsoft Windows 10 32/64 bit Microsoft Windows 8 32/64 bit Microsoft Windows 7 32/64 bit Microsoft Windows Vista 32 bit (SP1 or later) Display Languages English (*5) Other The Microsoft .NET Framework 3.5 SP1 is required. *1: It is also possible to measure temperature with the internal sensor.
-
Page 26: Optional Accessories
Optional Accessories TR-07K2 Wall Attachment Wall Attachment Included: screws x 2 double-sided tape x 1 US-15C USB Communication Cable Cable Length about 1.5 m... -
Page 27: Product Information
A list of distributors can be found at: http://www.tandd.com/about_tandd/contactus/ Product Information Product information can be found at: http://www.tandd.com/product/ Thermo Recorder TR-73U User's Manual T&D CORPORATION 817-1 Shimadachi, Matsumoto, Nagano 390-0852, Japan Website : http://www.tandd.com/ FAX : +81-263-40-3152... - Page 28 Thermo Recorder TR-73U Warranty Warranty Period 1 year from date of purchase Date of Purchase Customer's name Address Phone No. Distributor's name Address Phone No. Object of Repair Main Unit (excluding accessories.) Method of Repair Send in for Repair Provisions for Free Repair 1.
