Summary of Contents for md.lab AM-80.4DSP

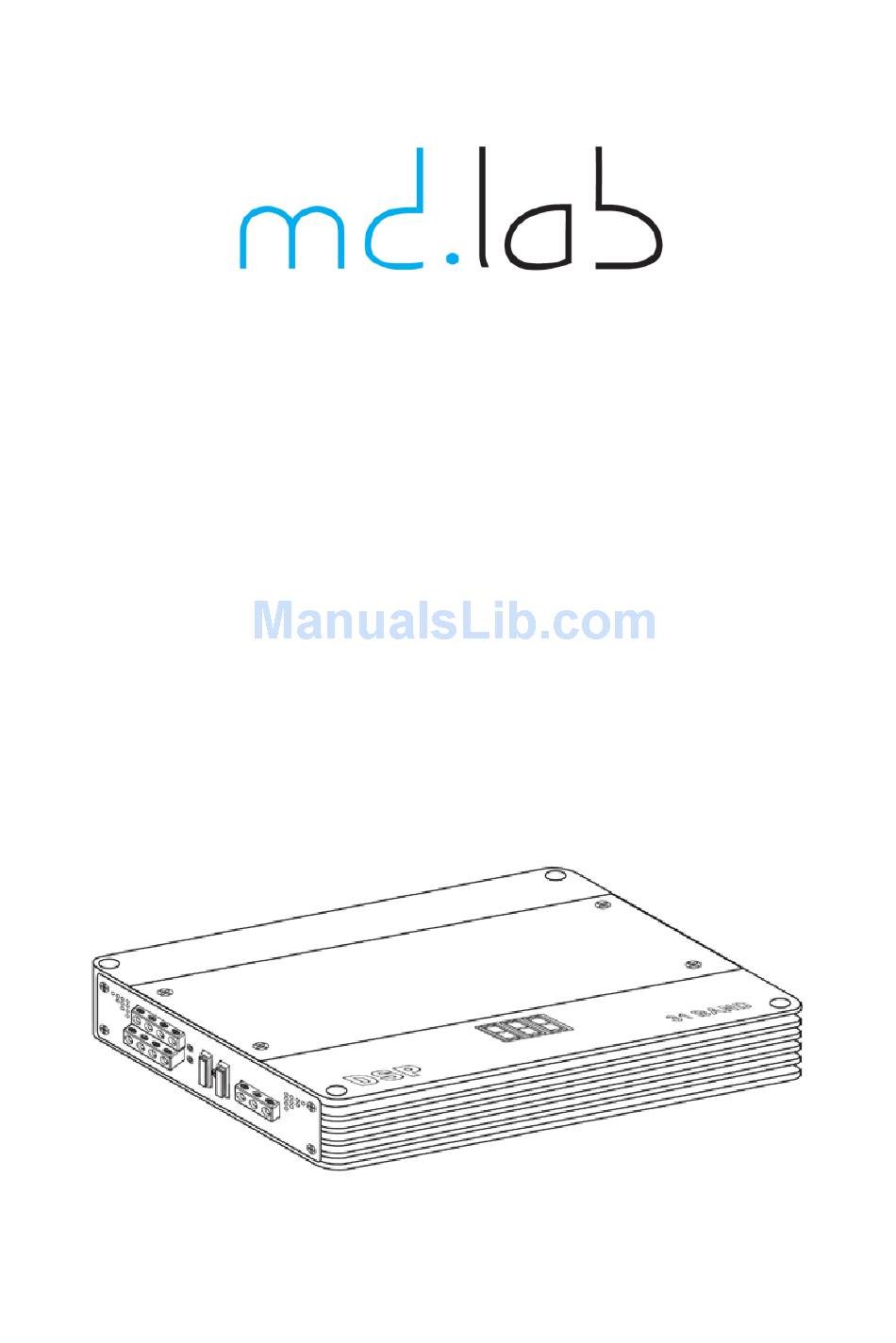

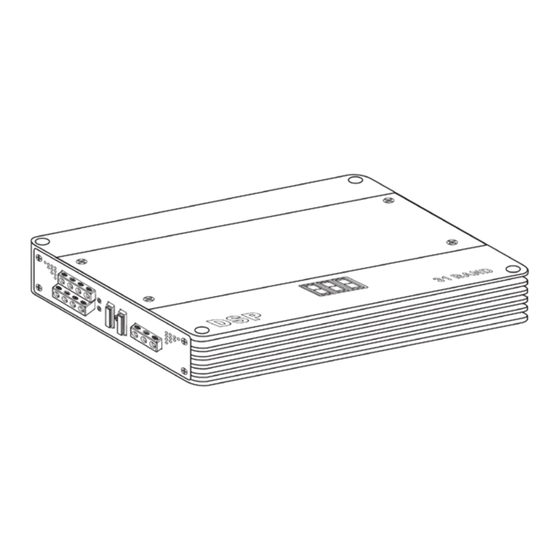

- Page 1 AMPLIFIERS with DSP AM-80.4DSP / AM-100.4DSP / AM-1000.1DSP User Manual...
- Page 2 Congratulations on purchasing the High Performance Power Amplifier. The amplifier has been designed using the latest electronic technology available, allowing you to produce high quality stereo reproduction in mobile applications. This system provides you with low harmonic distortion, a huge considerable amount of reserve voltage and high temperature stability.
- Page 3 Power connection IMPORTANT! Before making any connections, disconnect the car’s battery until the installation is completed to avoid possible damage to the electrical system. The +12V DC power cable should be heavy gauge stranded copper cable with heavy insulation, since it draws power directly from the positive battery terminal. Select the cable gauge at least 10mm2.
- Page 4 Connectors 1. FUSE 2. BATTERY +12V 3. REMOTE 4. GROUND 5. PROGRAM INDICATOR 6. POWER INDICATOR 7,8. SPEAKER OUTPUT CH1, CH2, CH3, CH4. CONTROL AM-CONT socket 10. SW MCU CONTROL adjust type switcher 11. USB 12. PC-LED PC connect indicator 13.
- Page 5 INPUT CONNECTIONS * This amplifier has RCA connections for low level inputs. Low level signal is carried through RCA cables, it is preferred to use low level inputs to the amplifier if the head unit is equipped with the low level outputs. SPEAKER OUTPUT CONNECTIONS You do not need to make any adjustment for the input connection of amplifier before you connect the speaker output.
- Page 6 4-channel mode Bridged mode (4 Ohm) 3-channel mode (bridge 4 Ohm) Specifications...
- Page 7 AM-1000.1DSP AM-80.4DSP AM-100.4DSP Input sensitivity 0,2-6 V Setting method MD.Lab AM-CONT or PC Filters HP/LP/BP Power (RMS) @ 1Ohm,W 1 x 1000 Power (RMS) @ 2 Ohm,W 1 x 800 4 x 120 4 x 150 Power (RMS) @ 4 Ohm,W...
- Page 8 www.md-lab.eu Vasiliy Petushkov str. 3/1, Moscow, Russian Federation 125476 Phone +7 (495) 540-51-80 info@md-lab.eu...
