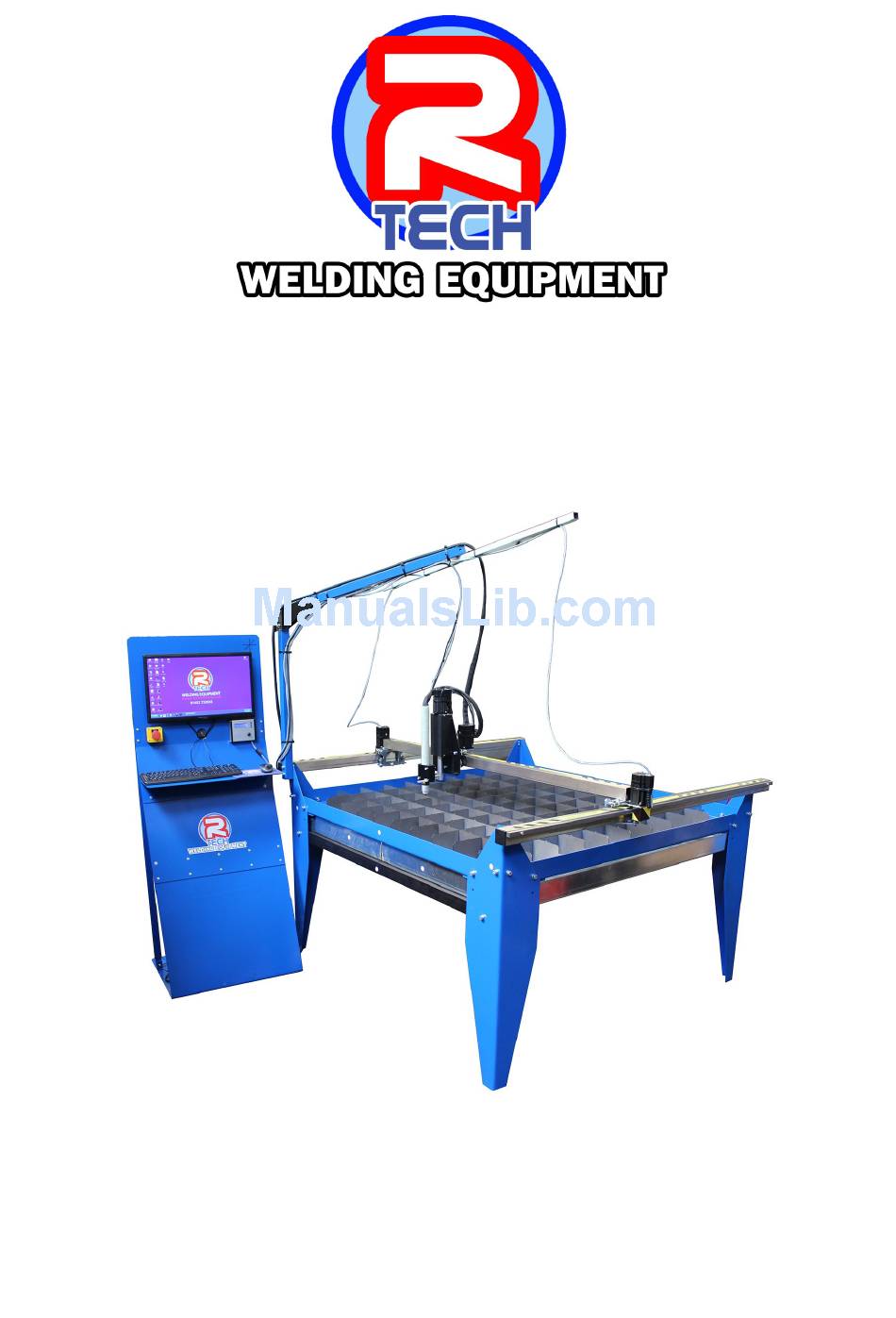

CNC PLASMA CUTTING SYSTEM KIT

ASSEMBLY INSTRUCTIONS

www.r-techwelding.co.uk
Tel: 01452 733933 Fax: 01452 733939
Email: salesdept@r-techwelding.co.uk
Version 2016-1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CNC and is the answer not in the manual?

Questions and answers

Summary of Contents for R-Tech CNC

  • Page 1: Assembly Instructions

    CNC PLASMA CUTTING SYSTEM KIT ASSEMBLY INSTRUCTIONS www.r-techwelding.co.uk Tel: 01452 733933 Fax: 01452 733939 Email: salesdept@r-techwelding.co.uk Version 2016-1...
  • Page 2: Safety Precautions

    Safety Precautions Read entire section before starting assembly WARNING! Electric Shock can kill. Only qualified personnel should perform this installation. Turn off input power at the fuse box before working on this equip- ment. Do not touch electrically live parts. Always connect the machine to an earthed mains supply as per national recom- mended standards.
  • Page 3 B: RH SIDE ASSY - Inc 2 x legs, main beam, drive motor & rail C: CENTRE BEAMS x 2 D: CENTRE MOTOR RAIL - beam, rail and drive motor & CNC torch bracket & motor Support arm (for torch cable and motor cables) - not shown.
  • Page 4 Step 1. Build main table assembly using LH and RH side assy and 2 x centre beams. Note: Ensure white dots are at front when assembling. Ensure ground is flat, if need-be use shims to ensure table I level. Ensure white dots at front Fit 4 x Allen key bolts, nuts and washer at points show per each corner...
  • Page 5 Step 2. Fit main centre beam assy Centre beam comes fitted with rail & motor and torch holder & motor. Locate each end bracket onto side rails ensuring torch holder is towards the front. Fit 4 x Allen head bolts, nuts and washers - DO NOT TIGHTEN YET You now need slowly bring centre beam forward so each side motor bracket touches the front arms of frame.
  • Page 6 Left side fitted - Shows option water table front beam (A) Right side fitted - Shows option water table front beam (A)
  • Page 7 Step 3. Fit cable support arm Fit the cable support beam using the 2 long allen head bolts, buts and washers to the front left leg of main table. Step 4. Fit table slats Fit table slats as per picture above, ensure gloves are worn to avoid injury. Note: Picture shows optional water table and support beams fitted.
  • Page 8 Step 5. Fit torch to torch bracket on centre beam Torch head comes with bracket fitted as above Fit torch bracket to mounting point on centre rail. Note: Do not overtighten bolt B as this can cause restriction to electrode movement - See below After fitting torch bracket to centre torch mounting - move the centre electrode up and down, when pushed up and let go it...
  • Page 9 After fitting torch head assy, ensure torch alignment is true by adjusting either point A or B Step 6. Fit wiring to CNC Controller CNC Control Box...
  • Page 10 Connect two wires from centre torch bracket to point A -it does not matter which way wires go as they are not polarity dependant. Connect two wires from safety stop button on console to B -it does not matter which way wires go as they are not polarity dependant.
  • Page 11: Step 7. Console Setup

    Plug keyboard, mouse and monitor into PC unit The CNC table, console and PC assembly is now complete, all you need to do now is connect the CNC interface cable A to rear of R-Tech Plasma Cutter, then setup the Plasma Cutter as per the owners manual instructions supplied with P50HF.
