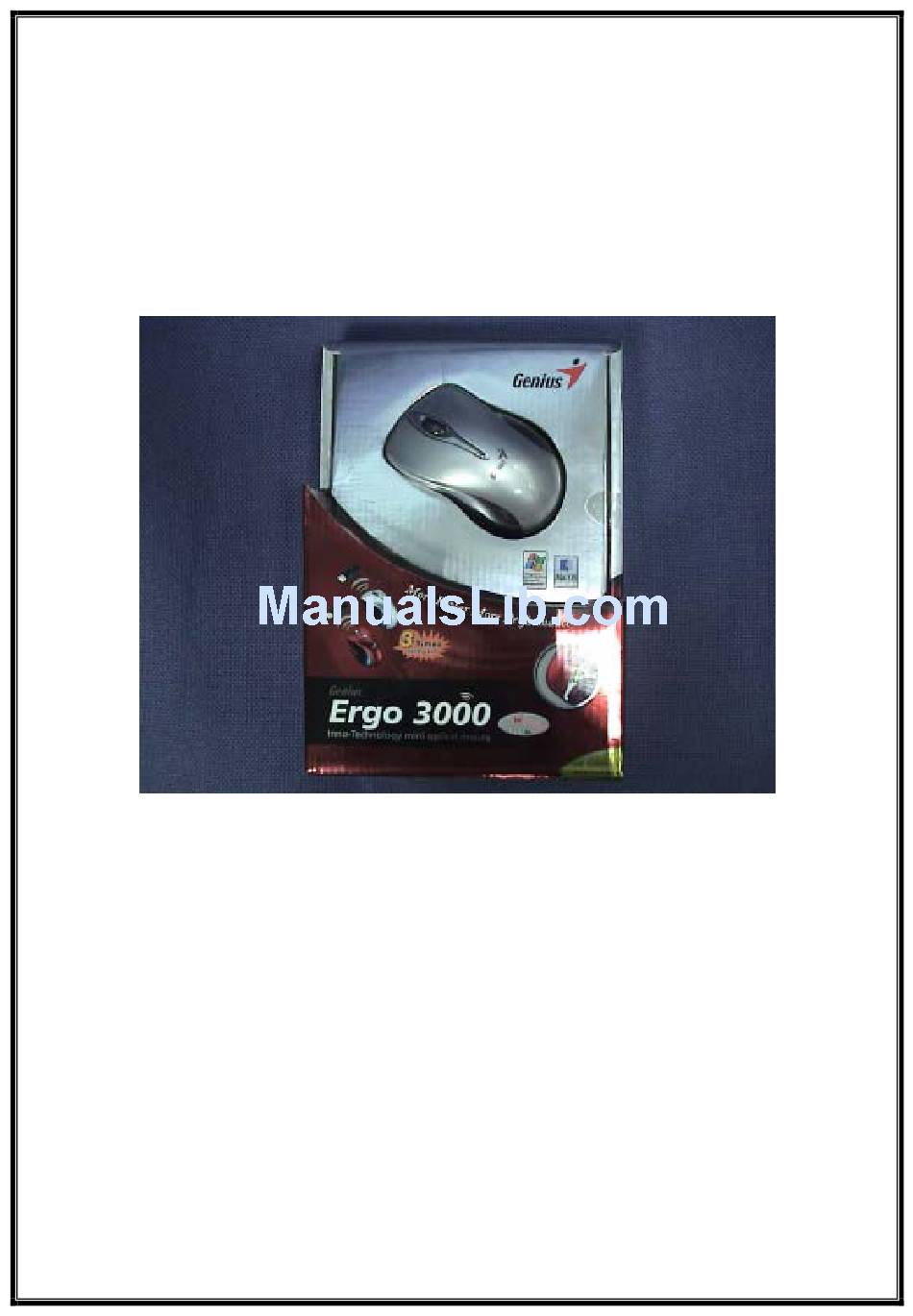

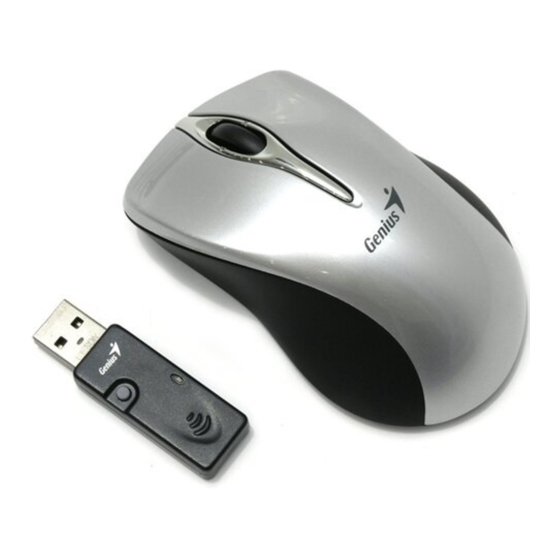

- Page 1 Service Manual Ergo 3000...
-
Page 2: Table Of Contents
Service Manual Ergo 3000 Table of Contents Chapter 1. Introduction ........................2 a. System Requirements....................2 b. Support Windows..................... 2 Chapter 2. Troubleshooting.......................3 Chapter3. Testing Procedures……………………………………………………………..4 a.Testing Flow Chart……………………………………………………………………4 b.Check Receiver ………………………………………………………………….5 c.Check Mouse Button………………………………..………………………………6 d.Check Cursor…………………………………………………………………………7 e.Check Connecting between PC and Mouse…………………………………………8 Chapter 4. -
Page 3: Chapter 1. Introduction
Service Manual Ergo 3000 Chapter 1. Introduction a. System Requirements ♦ IBM PC Pentium 233 compatible or higher ♦ Windows XP/Me/2003/2000/98SE,Mac OSX or later ♦ Available USB port b. Support Windows ♦ XP/Me/2003/2000/98SE Version 1.0 Page 2... -
Page 4: Chapter 2.Troubleshooting
Service Manual Ergo 3000 Chapter 2.Troubleshooting Item Condition Probable Reasons Solutions 1. Mouse can’t 1. Cursor can’t work 1. Receiver or mouse Change Receiver or work failed mouse PCBA 2. Button can’t 1.Press button no respond 1. Mouse PCBA Change SW1,2,3,4,5 or... -
Page 5: Chapter3. Testing Procedures
Service Manual Ergo 3000 Chapter 3. Testing Procedures a. Testing flow chart START Check Receiver Replace Receiver Replace buttons Check Mouse or mouse PCBA buttons Replace battery or Check Cursor sensor or mouse PCBA Replace receiver Check Connecting or mouse PCBA... -
Page 6: B.check Receiver
Service Manual Ergo 3000 b.Check receiver. If cursor can not work or can not move smoothly ,please use another new good receiver with original mouse to check whether the cursor can function or not, if yes it means the former receiver is bad so please replace receiver. -
Page 7: C.check Mouse Button
Service Manual Ergo 3000 Check mouse buttons If the mouse buttons do not function, please replace mouse SW1,SW2,SW3,SW4,SW5. Mouse SW1,2,3,4,5 Version 1.0 Page 6... -
Page 8: D.check Cursor
Service Manual Ergo 3000 d.Check cursor If cursor is unstable or does not move smoothly, please replace new battery. If still does not work after replacing new battery please replace sensor U2 or mouse PCBA. Mouse PCBA Sensor U2 Version 1.0... -
Page 9: E.check Connecting Between Pc And Mouse
Service Manual Ergo 3000 e.Check connecting between PC and mouse If depress channel connect button the mouse still can not function, please replace mouse PCBA or receiver. Mouse PCBA Receiver Version 1.0 Page 8... -
Page 10: Chapter 4. Removal And Replacement
Service Manual Ergo 3000 Chapter 4. Removal and Replacement Step Description Picture 1. Turn over To disassemble the mouse, mouse you have to turn over mouse and open the upper plate. Red arrows pointed are screws. 2. Loose Using screwdriver to loose... - Page 11 Service Manual Ergo 3000 3. Take apart Pick PCBA directly from bottom Bottom cover PCBA cover. The PCBA is the most important part of mouse. PCBA Version 1.0 Page 10...
-
Page 12: Chapter 5. Parts List
Service Manual Ergo 3000 Chapter 5. Part list Item Parts number Description 25000354100 Receiver 20000682101 Mouse PCBA 10300190100 Sensor U2 10900001200 SW1,SW2 10900075000 10900129100 SW4,SW5 Chapter 6. Tools 1. Screwdriver cross Version 1.0 Page 11...
