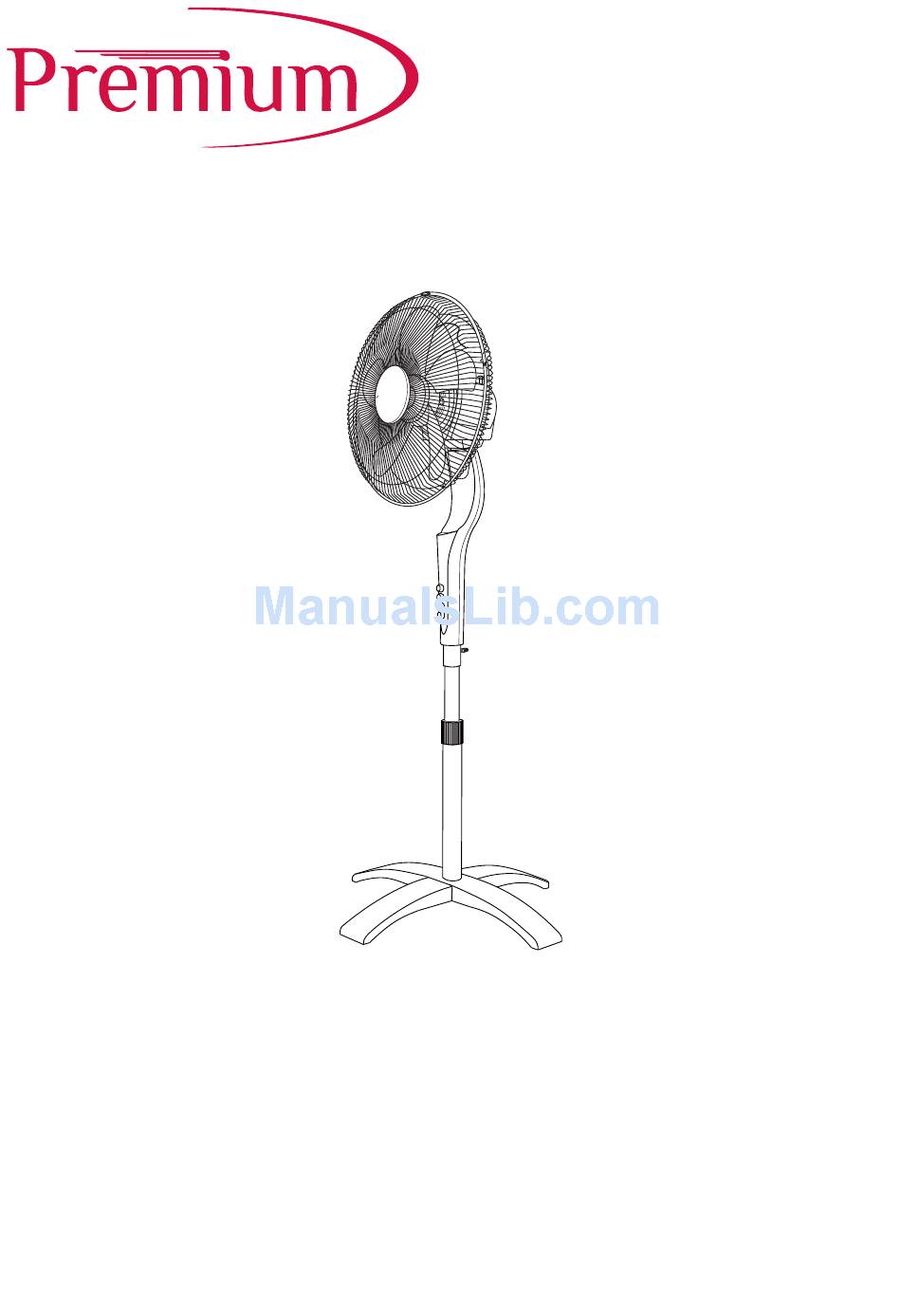

MANUAL
HI
ME
LO
OFF
MODEL: PFS16360
16˝(40cm) Adjustable Stand Fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFS16360 and is the answer not in the manual?

Questions and answers

Summary of Contents for Premium PFS16360

  • Page 1 MANUAL MODEL: PFS16360 16˝(40cm) Adjustable Stand Fan...
  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using electrical appliances, basic safety precautions should always be followed including the following: • Please read all instructions before using this fan. • Use fan only for intended use as described in instruction manual • Install fan only in strict adherence to these instructions. Failure to do so might create a safety hazard or result in property damage.
  • Page 3 FRONT REAR GRILL HANDLE FAN BLADE GRILL HOOK GRILL NUT MOTOR SHAFT BLADE KNOB MOTOR ASSEMBLY FRONT GRILL CLIPS (4) FRONT GRILL THUMB SCREW HEIGHT ADJUSTMENT KNOB POLE CENTER COVER POLE ASSEMBLY PLASTIC CROSS BASE (2) POLE NUT ASSEMBLY 1.) Remove all parts from the carton: •...
  • Page 4 2.) Assemble the fan head: HANG FRONT GRIL L HOOK OVER TOP OF REAR GRILL • Remove the Grill Nut and Blade Knob from the Motor Assembly. Note the Blade Knob is “reverse” threaded and should be turned “clockwise” to remove it from the motor shaft. •...
  • Page 5 OPERATION OSCILLATING • Place the assembled fan on a flat, level, firm and KNOB dry surface. • Plug the power cord into a polarized 120 volt AC wall outlet. • Turn the fan on and select the desired running speed with the Speed Control Switch conveniently and safely located at the front of the PIANO fan below the Front Grill.
