- Page 1 Infrared Forehead Thermometer User Manual Reorder No. 5613...
- Page 2 Introduction • Thank you for purchasing this non-contact Infrared Forehead Thermometer. Please read this User Manual carefully to ensure safe and proper use of the thermometer. • Please read and fully understand the Safety Precautions before use. • Keep this User Manual with the thermometer for easy reference.
-
Page 3: Table Of Contents
Contents Safety Precautions ................. 4 Warning ....................5 Symbols....................6 Body Temperature Basics............... 7 Product Description ................8 Features ....................9 Structure ....................10 Display and Operating Instructions ............11 Measurement Process ................. 16 Replacing Batteries ................18 Cleaning and Disinfection..............19 Maintenance .................. -
Page 4: Safety Precautions
Safety Precautions Read the following precautions carefully before using the thermometer. Attention • Take care of the temperature probe lens, which is fragile. • Dispose of used batteries with care. To safeguard the environment, you are recommended to send the used batteries to a designated collection point. -
Page 5: Warning
Warning Warning The thermometer is not intended to diagnose or treat any health • problem or disease. The measurement results are for reference only. It is dangerous to make a self-diagnosis or self-treatment based on • the obtained measurement results. For such purposes, please consult a physician or other medical professionals. -
Page 6: Symbols
Symbols Symbol Description Type BF applied part. Attention must be paid. The action is prohibited. Information about a manufacturer, such as name and address. Waste electrical materials should be sent to a dedicated collection point for recycling. A personal injury or thermometer damage may Warning occur if the thermometer is not correctly used. -
Page 7: Body Temperature Basics
Body Temperature Basics Take the body temperature on the forehead. The temperature measured at different parts of the body may differ slightly. Body Part Normal Temperature Range* Forehead 35.8°C–37.8°C/96.4°F–100°F *The normal body temperature range slightly varies with age and gender. Generally, newborns or children have higher body temperatures than adults, and adults have higher body temperatures than the elderly. -
Page 8: Product Description
Product Description 1) Overview Non-contact Infrared Forehead Thermometer measures human body or object temperature based on the infrared energy emitted from the forehead or object (such as milk and water). You can quickly get measurement results after pointing the temperature probe to the target. -
Page 9: Features
Features Good safety ● Passive infrared receiving technology, without radiation ● Non-contact measurement, preventing cross-infection Easy operation ● Handheld design, facilitating ergonomic operation ● One-click automatic temperature measurement Quick response 1-second measurement. High accuracy ● Advanced infrared temperature sensor, with high sensitivity ●... -
Page 10: Structure

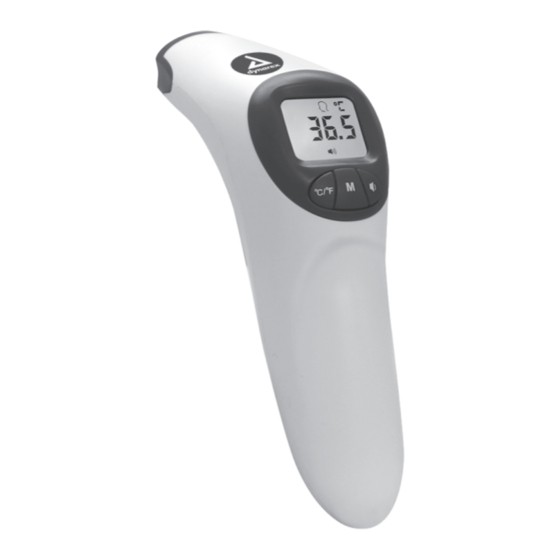

Structure Infrared temperature probe Measure button Battery cover Mute/Un-mute button Mode button ˚C/˚F button... -
Page 11: Display And Operating Instructions
Display and Operating Instructions Screen Display Operating Instructions Description /Displayed State In power-off mode, press the Forehead mode: Measure button to power on a. The default fever the thermometer. The alert threshold is temperature reading is 37.6ºC. displayed. For effective b. - Page 12 Display and Operating Instructions (continued) Screen Display Operating Instructions Description /Displayed State In forehead mode, temperature The thermometer reading > 42.2ºC (109.9ºF) sounds two short beeps. In object mode, temperature The thermometer reading < 0ºC (32.0ºF) sounds two short beeps. In forehead mode, temperature The thermometer reading <...
- Page 13 Display and Operating Instructions (continued) Screen Display Operating Instructions Description /Displayed State Switching between ºC and ºF Hold the ºC/ºF button for a short while to switch between ºC and ºF. Switching between forehead and object Hold the Mode button for a short while to switch between forehead ( ) and object...
- Page 14 Display and Operating Instructions (continued) Screen Display Operating Instructions Description /Displayed State Switching between mute and un-mute Hold the Mute/Un-mute symbol is button for a short while to displayed in mute switch between mute and mode and disappears un-mute. in un-mute mode. Querying 20 readings Hold the Mode button for more Press the Measure...
- Page 15 Display and Operating Instructions (continued) Screen Display Operating Instructions Description /Displayed State Querying 20 readings (continued) If no temperature reading has been taken, “- - - M” is displayed. Temperature compensation settings When “F-1” is displayed, press Press the Measure the Mode button.
-
Page 16: Measurement Process
Display and Operating Instructions (continued) Screen Display Operating Instructions Description /Displayed State Fever alert threshold settings (continued) Press the ºC/ºF or button. The default fever alert The fever alert threshold is threshold is 37.6ºC. displayed. The threshold value increments by 0.1ºC/ºF every time the ºC/ºF button is pressed, and decrements by 0.1ºC/ºF every time the... -
Page 17: Continuous Measurement
When taking object temperature, point temperature probe to the object with a distance of 1-5 cm in between, and press the Measure button. 04. Continuous measurement Hold the Measure button. Move the temperature probe while keeping the distance between the thermometer and the target unchanged. -
Page 18: Replacing Batteries
Replacing Batteries Slide the battery cover off along the marked direction. Put two AAA batteries correctly into the compartment (batteries included). If the low-battery symbol is displayed on the screen, replace the batteries. Ensure that the batteries are installed correctly. Otherwise, the thermometer may be damaged. -
Page 19: Cleaning And Disinfection
Cleaning and Disinfection Cleaning 1) Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab. 2) Wipe the thermometer body with a slightly damp soft cloth, and gently dry the body with a piece of tissue paper. Keep water off the lens during the cleaning process. -
Page 20: Troubleshooting
The thermometer is faulty. If the warranty period does not expire, contact Dynarex or a local distributor. Only the battery symbol The battery level is low. Use new batteries of is displayed after the the same model or thermometer powers on. -
Page 21: Specifications
Specifications Product Name Infrared Forehead Thermometer Product Model Reorder No. 5613 Power Supply Mode Internal power supply Operating Voltage DC 3V Battery Model AAA x 2 Battery Life Alkaline dry battery for around... -
Page 22: Security Category
Specifications (continued) Weight (g) 97.4 g (with batteries) Operating Environment Temperature: 10°C–40°C (50°F–104°F) Humidity: 15%–85% RH, non-condensing Atmospheric pressure: 86–106 kPa Storage and Transportation Temperature: –10°C to +50°C (14°F–122°F) Humidity < 93% RH, non-condensing Atmospheric pressure: 50–106 kPa Waterproof level IPX0 Security Category Anti-electric shock type: internally powered device. -
Page 23: List Of Accessories
List of Accessories Name Quantity Remarks Non-contact Infrared Thermometer Storage bag Dry-cell battery (AAA) Consumable User Manual See the label for the manufacture date. The service life of the thermometer is 2 years after leaving factory. - Page 24 DYNAREX CORPORATION 10 GLENSHAW STREET ORANGEBURG, NY 10962...
