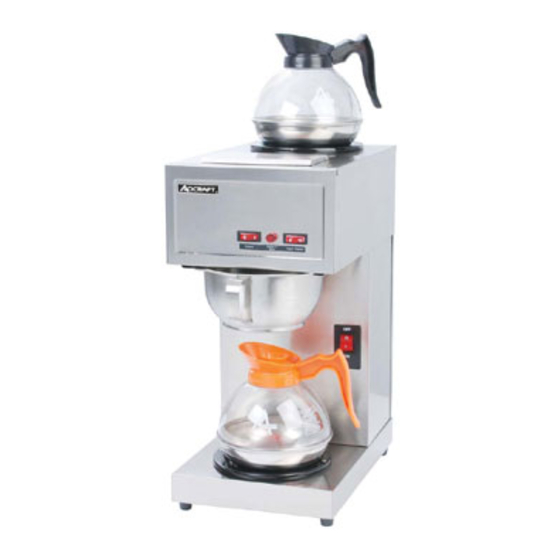

CBS-2
Coffee Brewer
This manual contains important information regarding your
Admiral Craft unit. Please read this manual thoroughly prior to
equipment set-up, operation and maintenance. Failure to comply
with regular maintenance guidelines outlined in this manual may
void the warranty. MUST READ!!!
Advertisement
Related Manuals for Adcraft CBS-2
Summary of Contents for Adcraft CBS-2
- Page 1 CBS-2 Coffee Brewer This manual contains important information regarding your Admiral Craft unit. Please read this manual thoroughly prior to equipment set-up, operation and maintenance. Failure to comply with regular maintenance guidelines outlined in this manual may void the warranty. MUST READ!!!
- Page 2 Please refer to the following parts and diagram when reading the remainder of this manual. 1 Body of Machine 2 Power Switch 3 Filter Basket 4 Water Entrance 5 Coffee Pot ( **Not Included**) 6 Heating Plate 7 Heating Plate Power Switch 8 "Ready"...
-
Page 3: Electrical Requirements
Installation: (When the machine is used for the first time) ELECTRICAL REQUIREMENTS The brewer has an attached cord set rated 120 volts AC, 60 Hz, 15 Amps, single phase, and with a grounding pin. Improper electrical installation will damage electronic components. CAUTION: The brewer must be disconnected from the power source throughout the initial set- up, except when specified in the instructions. -
Page 4: Coffee Brewing
COFFEE BREWING Make sure the “Spring” is wedged well at the bottom of 3 Filter Basket. Insert a 12 cup filter into the Filter Basket. Pour selected coffee grounds into the filter and shake it gently to level the bed of grounds. Slide the Filter Pan into position, and ensure that there is an empty pot or server on the base (or on the Lower Hot Plate). - Page 5 CLEANING 1. Use of a damp cloth with a mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces of Brewer. 2. Check and clean the “spray head”, ensure that the spray head holes remain open. 3. You may open the “spray head” to clean if water-scales (limestone) have covered the holes.
-
Page 6: Adjustment Instructions
Adjustment Instructions Adjust the temperature: Warning: This adjustment should be process by qualified technician or service person only. Adjustment Water Temperature: The temperature of machine has been set between 94 – 96 º C. To adjust this setting; Open the top cover of machine so that the temperature controller can be seen. - Page 7 C B S - 2 V E R 8 1 1...
- Page 8 C B S - 2 V E R 8 1 1...
- Page 9 Coffee Brewer - CBS-2 Reference Number Part Number Description CBS-1 Foot Bottom Cover Base Frame Power Cord Ring CBS-5 Plug , Power Cord, Strain Releif, Power Cord Clip CBCP-6 Indicator Light, Red CBS-10 Power Switch Outside Switch Holder Inside Switch Holder...
- Page 10 ACE Equipment One Year Limited Warranty Admiral Craft Equipment Corp. (ACE) warrants its equipment against defects in materials and workmanship, subject to the following conditions: ACE Equipment is warranted for one year, effective from the date of purchase by the original owner. A copy of the original receipt or other proof of purchase is required to obtain warranty coverage.
