Alecto PAS-350 User Manual

Active sound set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

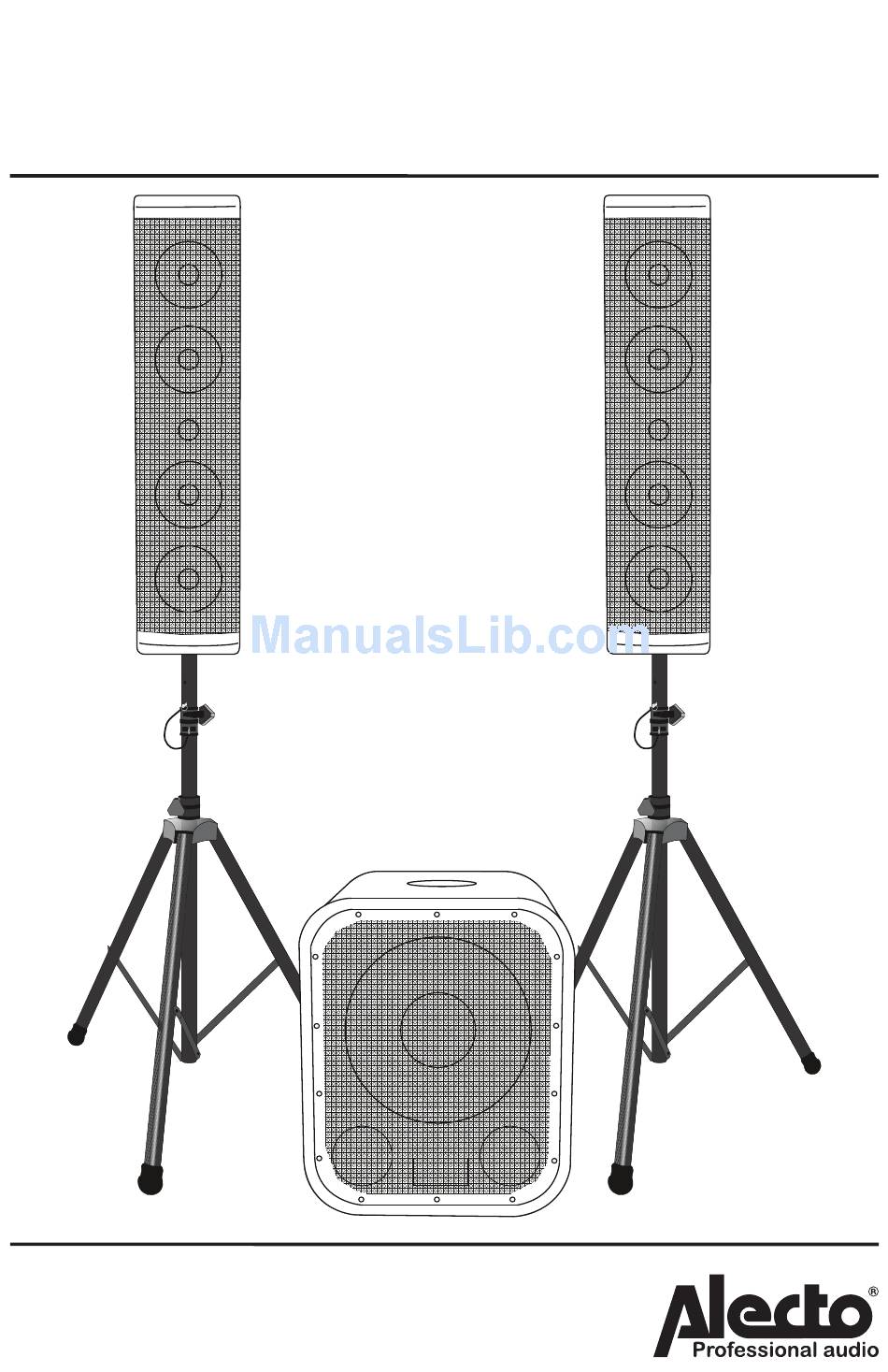

USER'S MANUAL
Active sound set
PAS-350
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAS-350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alecto PAS-350

  • Page 1 USER’S MANUAL Active sound set PAS-350...
  • Page 2 PAS-350 PEAK PEAK PEAK STATUS PAIR SUBLEVEL INPUT RIGHT LEFT LINK OUT SUB500Watt SAT2x150Watt SAT OUT Tripod Satellete Connection Panel SATELITE PAS-350 INPUT 8Ω 1+ = positive 150Watt rms 1- = negative 2+ = no connection 2- = no connection...
  • Page 3 APPLICATION The PAS-350 is a sound system with 1 subwoofer and 2 satellite speakers. The PAS-350 is powered through a mixing panel or master output from another amplifier or audio source. The subwoofer contains three separate speakers. 1 for the subwoofer and 2 (left and right) for the satellite speakers. The satellite speakers may be placed onto the supplied tripods.

  • Page 4: Before Use

    Speakon plugs. MAINS VOLTAGE: Only connect the PAS-350 subwoofer to a mains voltage of 230 Volt. The mains in most European countries works on 115 Volt. Use the supplied power cord to connect the PAS-350 with the mains.
  • Page 5 6. Depending on the type of device that contains the music, you might have to set this device to send its audio signal to the PAS-350 and not to the headphones output or its own speaker; please refer to the user instructions of the external device.

  • Page 6: Technical Specifications

    TECHNICAL SPECIFICATIONS PAS-350: Voltage: 230V~50Hz Fuse: T 3.15A 230V Woofer: 12” Satellite: 6,5” Mediant x 2 and 3,2” Neodymium Tweeter Impedance Satellite: 8Ω System Freq. Resp.: 35Hz~20KHz +/-3dB Subwoofer Freq. Resp.: 35Hz~140Hz +/-3dB Satellite Freq. Resp.: 140Hz~20KHz +/-3dB System Power:...
  • Page 7 CONNECTION DETAILS BALANCED/UNBALANCED Stereo headphones: balanced mono: unbalanced mono: Tip is left signal Tip is signal Tip is signal + Ring is right signal Ring is signal - Sleeve is mass, Sleeve is mass, Sleeve is mass, earth or shielding earth or shielding earth or shielding Ring...
  • Page 8 Service Help WWW.ALECTO.NL SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief) BE 03 238 5666 (Lokaal tarief) (Tarif local) DE 0180 503 0085 Lokale Festnetzkosten Hesdo, Australiëlaan 1 5232 BB, ‘s-Hertogenbosch The Netherlands WWW.ALECTO.NL Service SERVICE@ALECTO.NL NL 073 6411 355 (Lokaal tarief)
