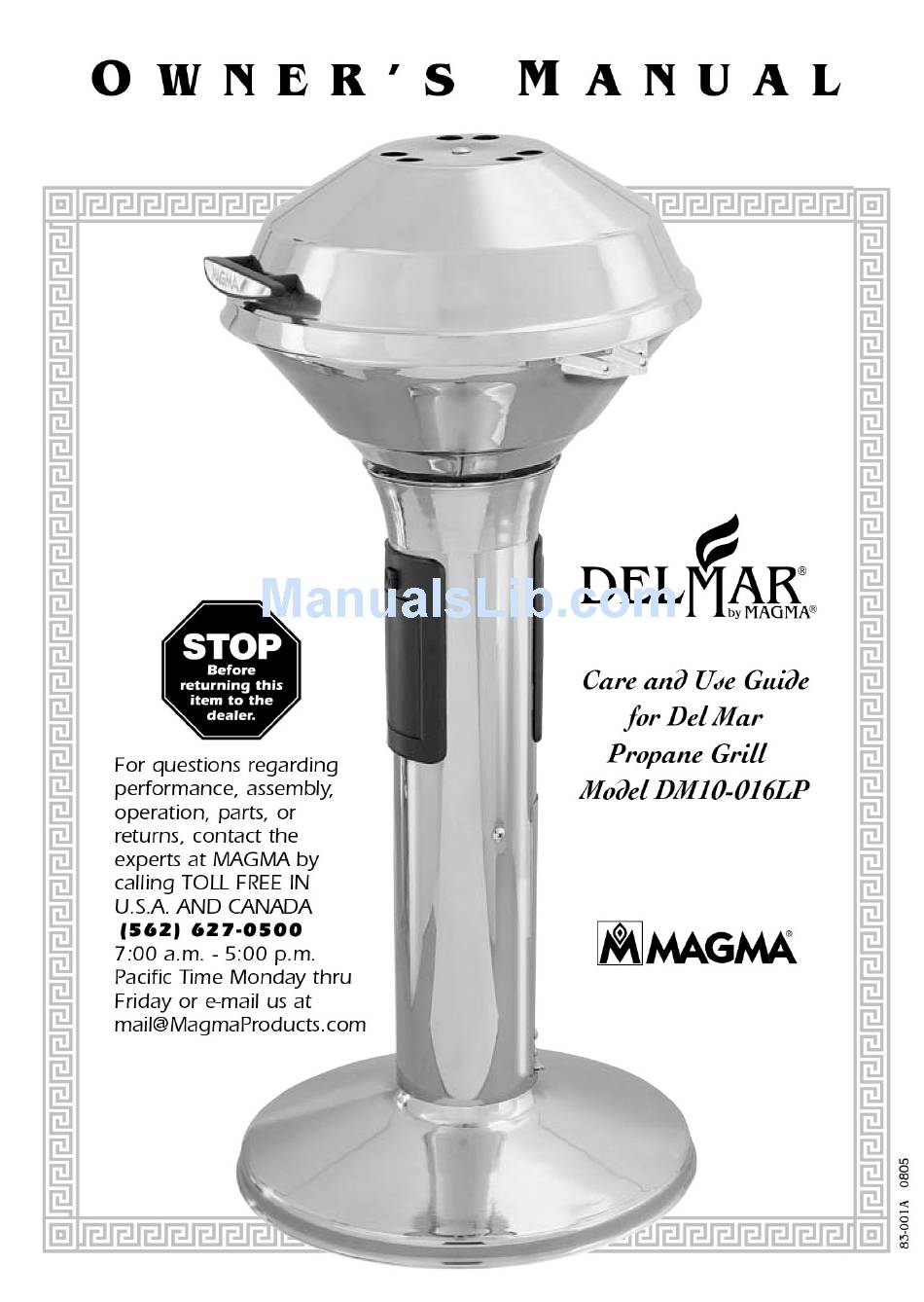

DELMAR DM10-016LP Care And Use Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the DM10-016LP and is the answer not in the manual?

Questions and answers

Summary of Contents for DELMAR DM10-016LP

Page 2: Important Safety Warnings
IMPORTANT SAFETY WARNINGS PLEASE READ THE FOLLOWING BEFORE OPERATION OF YOUR DEL MAR BBQ GRILL. ™ FOR YOUR SAFETY AVERTISSEMENT S’il y a une odeur de gaz: If you smell gas: 1. Coupez l’admission de gaz de 1. Shut off gas to the appliance. l’appariel.
Page 5 FEATURES Stainless steel grill grate Stainless steel 16” diameter, double lined lid 201 sq. inches (Inside) Stainless steel Radiant Burner Plate “Easy Lift” and Dome System hinged lid permits use of the Del Mar as a BBQ, a stove, or as an oven Double lined Stainless steel Bowl-design to...
Page 6: Removing Packing Materials
REMOVING PACKING MATERIALS 1. Remove the grill 2. Take out the 4. Place the radiant 5. Replace the grill grate by depressing cardboard packaging plate and dome grate ensuring the grate at the tabs that includes the in to the fire pan that the tabs are and turning the radiant plate and...
Page 7 INSPECTION OF HOSES 1.Visually inspect all 3. Lift the panel 4. Using a flashlight if hoses prior to each clear of the necessary, inspect the gas column. delivery hose, and the upper of the grill. end of the gas supply hose, 2.
Page 8: Inspection For Spiders
INSPECTION FOR SPIDERS Spiders, Earwigs, and other insects find the venturi tube and burner of barbeques to be ideal nest building areas. Webs, or the insects themselves, can block the flow of gas, which may cause flash- back (a fire in the venturi tube). Always inspect these areas prior to operation of the grill. Inspection Procedure: Igniter Electrode 1.
Page 9: Leak Test
LEAK TEST • Do not test indoors. Always test outdoors in a well-ventilated area. • Test for leaks each time the propane canister is replaced. • Use a solution of mild soap (liquid dish soap works well) and water for testing •...
Page 10: Changing The Fuel Canister
OPERATION OF THE ”HIDEAWAY” CONTROL PANEL 1. Depress the 2. This will open the 3. Control panel will only close if release button. “hideaway” control the knob is in the “off” position. panel. Note: Since Never force the control panel the speed at which closed.
Page 11: Lighting Instructions
LIGHTING INSTRUCTIONS Igniter Lighting Your Del Mar Grill is equipped with a Piezo crystal ignition that is activated through the valve control knob. For proper operation, the igniter/electrode should be clean and free from debris. Regular inspection and cleaning is recommended, (see“Maintaining you Grill”). 6.
Page 12: Operation
OPERATION Cooking on the Grill The Del Mar Grill is highly efficient. For this reason, it is recommended that you do most of your grilling on the “LOW” setting. The grill will come to temperature very quickly. A common mistake is to use too high of a heat setting. The grill will continue to become hotter as you cook.
Page 13 USING THE DEL MAR AS A STOVE Using the Del Mar as a Stove The unique design of the Del Mar allows it to be used as a conventional stove in your outdoor setting. This permits you to fry, saute, boil, wok, etc. • Remove the grill grate. • Remove the radiant dome •...
Page 14: A Word About Stainless Steel
A WORD ABOUT STAINLESS STEEL Stainless Steel, contrary to popular belief, can rust. Most commonly, deposits on the surface of the product will trap moisture. It is this moisture that robs the stainless steel of oxygen. Oxygen is the element that reacts with the stainless steel to form a protective layer of chrome oxide. Robbed of oxygen this reaction does not take place and “crevice corrosion”, or “surface rusting”, occurs.
Page 15: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Problem Possible Cause Possible Solution Burner will not light Igniter electrode covered with Clean igniter electrode with igniter grease or residue Igniter/electrode wire loose or Check connection and reconnect disconnected Wire is shorted causing spark Replace igniter wire from wire before electrode No spark being generated Replace valve assembly...
Page 16: Expanded View
EXPANDED VIEW 11-001 Handle & Outer Lid Assembly 11-002 “Magma” Name Plate w/ Adhesive 11-003 11-017 Internal Fire Lid Handle with Mounting Hardware 10-453 Cooking Grill 10-765 Radiant Plate & Dome 10-657 Burner with Igniter Strap 11-009 11-018 Long Pivot Pin Lid Pivot 11-005 with Clip &...
Page 17 DEL MAR BY MAGMA Manufacturer Magma Products, Inc. Model Name Del Mar Model Number DM10-016LP UPC Code 88379100163 Fuel Propane Fuel Supply Disposable 1 lb. Propane canisters Fuel Burn Time 2-4 Hours at recommended temperatures Construction Materials Exterior 100% Mirror Polished 18-9 Stainless Steel...
Page 18 DEL MAR ACCESSORIES BBQ Covers Forest Green Pacific Blue Burgundy Jet Black Toast 100% All 18-8 Stainless Steel Wok Fish & Veggie Grill Tray Stainless Steel Finish or Stainless Steel with DuPont ® Teflon Select Non-Stick Finish ® OTHER MAGMA ACCESSORIES Gourmet 9 Piece “Nesting”...
Page 19: Quick Reference Chart
QUICK REFERENCE CHART * Approximate Cooking Times and Temperatures Approximate Cooking Times (Total) and Meat Temperatures Type of Cut of Size of Recomm. Meat Meat Fire Temp. Rare Medium Well Done Comments Steak 1” - 1-1/2” Med - Hot 10-12 Min/140º 12-14 Min/160º...
