Summary of Contents for Tele Columbus DH3200
-
Page 1: Operating Instructions

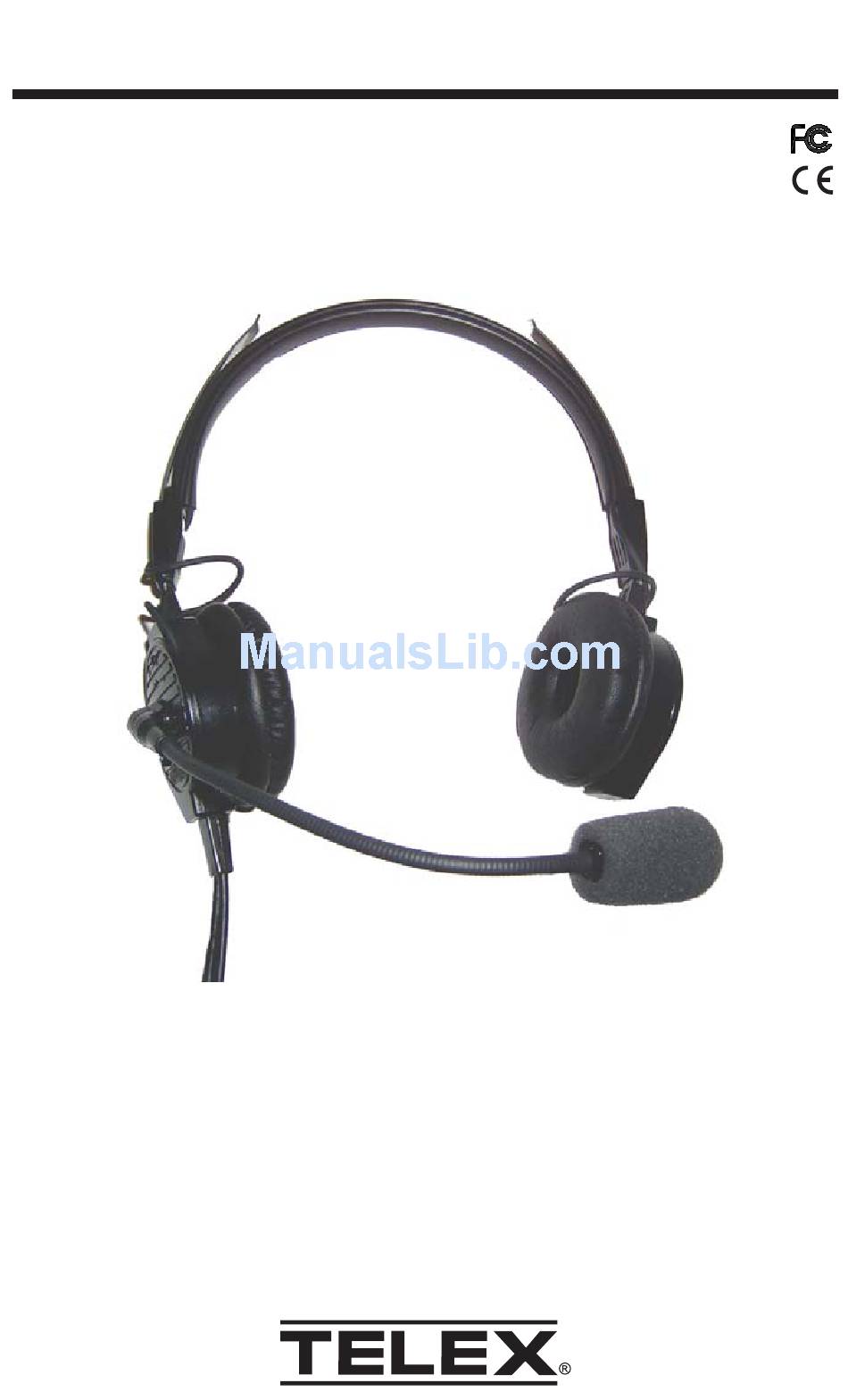

Telex ® Operating Instructions Dispatch Headset DH3200 (Shown) DH3000... -
Page 2: General Description
The DH3200 is a dual-sided headset while the DH3000 is equipped with a single earphone accompanied by a comfortable temple pad on the opposite end on the headband. - Page 3 Ear Cushions Flexible Boom Permits Precise Mic Placement Boom Rotates Overhead for Noise Canceling Mic Placement on Either Electret Microphone Side of Head Figure 1 DH3200 Reference View (Dual-Sided Model Shown) Note: See Page 7 for Available Replacement Parts Page 2...
-
Page 4: Design Features (See Figure 1)
Design Features (See Figure 1) Fit and Comfort An adjustable headband gives the wearer two inches (51mm) of up and down earphone adjustment per side, while the gimbal mounting improves the headset’s side-to-side comfort. Boom Microphone The DH3000 Series Headset features a miniature, amplified, noise canceling electret microphone that provides superior ambient noise rejection. - Page 5 The DH3000 Series Dispatch Headset is designed to be used with the following Telex PTT/Lower Cord Assemblies: • LC1500 15 Foot Extended Cord Length ..(TELEX PN 302068000) • LC2500 25 Foot Extended Cord Length ..(TELEX PN 302068001) Figure 2 Headset Connections The DH3000 Series Headset in conjunction with the LC1500/2500 PTT Assembly, is designed to function properly with the VEGA HB-3 Plus...
-
Page 6: Headset Operation
Headset Operation 1. Connect the headsets quick disconnect to the quick disconnect on the LC1500/2500 PTT Assembly. 2. Rotate the entire boom overhead to wear the microphone on either the right or left side of the head (Note the two stops below the boom housing). -
Page 7: Microphone Gain Adjustment
Figure 4 Microphone Gain Adjustment Ordering Information DH3000 Single-Sided Headset ....Catalog no. PRD000021-100 DH3200 Dual-Sided Headset ...... Catalog no. PRD000021-000 Replacement Ear Cushions (Pair) ....... Catalog no. 800456-020 Replacement Windscreen ........Catalog no. 800456-019 Page 6... -
Page 8: Limited Warranty
LIMITED WARRANTY TELEX Communications, Inc. (“Telex”) warrants to the user, who originally purchased the product delivered with this card, that the product will be free from defects in material and workmanship for the following periods after such date of purchase: Material 24 months, workmanship 24 months. -
Page 9: Customer Service
CUSTOMER SERVICE For information or technical assistance, call or write to Telex at: Customer Service Department Telex Communications, Inc. 12000 Portland Ave. So. Burnsville, MN 55337 U.S.A. (952) 884-4051 or (877) 863-4168 When returning equipment for repair, please enclose an explanation of the problem. - Page 10 Notes Page 9...
- Page 11 Notes Page 10...
- Page 12 LIT000052 Rev A 06/2006...
