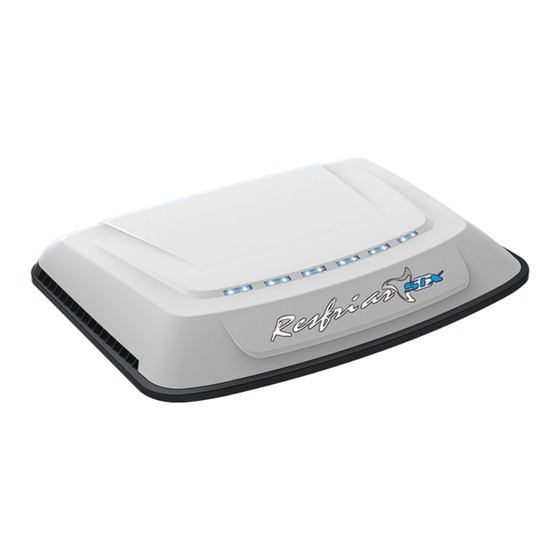

- Page 1 Owner´s Manual Resfri ar 6 Series Roof Air Coolers.
- Page 2 Latin America to Europe. From east to west, from north to south, wherever you stay, you will be among friends, because when you buy a Resfri ar product there will always be a skilled professional to serve you.
-
Page 3: Main Components
Main Components Top Cover Main Panel External Light Control Panel Straw Filter Assembly Motor Cover Motor Bracket Fan Motor Internal Basin Filter Base pre-filter Water Pump Base Sealing profile Internal Lamp Main Air Diffuser Panel Control Panel Finishing Frame... -
Page 4: Control Panel
Control Panel Internal (cabinet) lamp intensity control: Press the internal lamp If the button is pressed again, the led will stay on to show that the sleep button during 5 seconds, then the lamp brightness will vary in 5 function is not programmed. To get a new programming, just follow the levels. - Page 5 Lack of WATER: The Control Panel has a sensor to detect lack of You will note that the fan reaches its maximum or minimum speed levels water inside the tank. Whether the water level is lower than minimum, when you hear a longer beep coming from the panel. the yellow led starts blinking to notice the user to refill the tank with the water.
- Page 6 Control Panel Internal (cabinet) lamp intensity control: Press the internal lamp Sleep Function: It´s possible to program the time the fan will turn on/off. button during 5 seconds, then the lamp brightness will vary in 5 levels. To program the sleep function you must program the alarm clock first, then Release the button when you get the best intensity for your press again the button .
- Page 7 Water Function: To On/Off the water function (ventilation with the EXTERNAL light : Press the button to On/Off the external light in the cooling process) press the button . The water function symbol will placard. The symbol will appear in the display to show this function is appear in the display.
-
Page 8: Maintenance
Important parts for A periodical maintenance is essential for the Maintenance best performance of your Resfri ar roof air cooler Base internal filter: Located in the base, it is Motor: Located in the center of the responsible for filtering the water excess that b a s e , i t i s re s p o n s i b l e fo r t h e decants from the straw filter. -
Page 9: Technical Assistance
They control all the product functions and can be used for roof air coolers in two voltages: 12 and 24V. It doesn´t have a defined life time, since this Resfri ar is always worried with the proper functioning of its products, depends on the maintenance and regular checks done. This product is equiped with an internal safety circuit against motor, lamps and pumps during its whole life time. -
Page 10: Technical Characteristics
Technical Characteristics Battery consumption in amperes/hour according to the fan speed and the control panel model, including water pumps consumption: Dimensions: Universal Roof Universal Roof Height: 9,7 cm air cooler 24V air cooler 12V Width: 84,4 cm Minimum 0,05 A/h 0,05 A/h Length: 63,9 cm Medium... -
Page 11: Warranty Certificate
Warranty Certificate Customer: _________________________________________ ________________________________________________ Authorized dealer - stamp and sign Vehicle:_________________________________________ Model: __________________ License: _________________ Sale/installation date: ___/___/20____ Warranty valid until ___/___/20____ Product Series number: ________________________________________________ Invoice number __________________________________ Bar Code label Dealer copy... -
Page 12: Warranty Conditions
Usage of no original Resfri ar pieces and maintenance in no authorized services or technicians; j) Remote control battery. In no case, Resfri ar will change the product for a new one only because it has a defective component. In case of any doubt, call to: +55 54 3511.1111. - Page 13 Warranty Certificate Customer: _________________________________________ ________________________________________________ Authorized dealer - stamp and sign Vehicle:_________________________________________ Model: __________________ License: _________________ Sale/installation date: ___/___/20____ Warranty valid until ___/___/20____ Product Series number: ________________________________________________ Invoice number __________________________________ Bar code label Customer copy...
- Page 14 Usage of no original Resfri ar pieces and maintenance in no authorized services or technicians; j) Remote control battery. In no case, Resfri ar will change the product for a new one only because it has a defective component. In case of any doubt, call to: +55 54 3511.1111.
- Page 15 Technical Assistance +55 54 3511.1111...
- Page 16 Certified Certified Empresa C o m p a n y C o m p a n y Certificada RESFRI AR CLIMATIZADORES E EQUIPAMENTOS LTDA. Phone: +55 54 3511.1111 - Vacaria - RS- Brazil resfriar@resfriar.com.br...
