Robertshaw RS311N Installation And Operation

Installation and Operation
Instructions for
RS311N
1-Heat / 1-Cool
Non-Programmable
Setback Thermostat
for Gas, Electric, & Heat Pump Systems
www.robertshawclimate.com

TABLE OF CONTENTS

Introduction.........................................................

Standard Features................................................

Button Operations................................................

Thermostat Locations............................................

Removing The Thermostat From The Backplate.........

Description Of The Dip Switch Functions..................
Features And Settings..........................................
Cover Lock.........................................................
Replacing The Thermostat On The Backplate............
Button Press Combinations....................................
Keypad Lockout...................................................
Temporary Override.............................................
Setback Input Terminals – Special Functions.............
Changing Fahrenheit (°F) To Celsius (°C).................
Power Failures....................................................
Remote Sensors (Optional)....................................
Setup Menu........................................................
Wiring Diagrams..................................................
Specifications......................................................
Sensor Faults......................................................
Description Of Icons.............................................
Display...............................................................
Warranty............................................................. 19-20
1
INTRODUCTION
The RS300N family of Non-Programmable Setback Thermostats
represents the most advanced solid-state, microcomputer
temperature control on the market today. The thermostat
incorporates state-of-the-art technology packaged in an extremely
low profile designer series case. They are a direct replacement
for 300 series and DSL series non-programmable units. The
Ultra-Touch push-buttons are combined with an easy-to-read,
blue backlit full function liquid crystal display to provide the
ultimate in user friendly operation of the heating and air
conditioning, including gas, electric, oil and heat pump systems.
STANDARD FEATURES
No batteries required – always remembers setpoints
•
Integrated electronic heat anticipation and cooling droop with
•
built-in short cycle equipment protection
Intelligent Fuzzy Logic staging for efficient operation of
•
equipment, including auxiliary heat
Tamper proof electronic keyboard lockout with
•
programmable override ranges and time
Automatic, Manual and Recirculation Fan operation
•
Adjustable Fan Purge after Heating or Cooling Call
•
Automatic Heat/Cool Changeover, Cooling Only, or Heating
•
Only Mode Control
Adjustable Deadband between Heat and Cool Setpoint in
•
2
Auto Changeover
2
Dual Heating and Cooling Setpoints for Day (Occupied) and
•
3
3 Night (Unoccupied) operation
4
Adjustable Min/Max Setpoints for Heating and Cooling
•
5
Keypad Lockout with restricted +/-3°F(1°C) or +/-5°F(2°C)
6-7
•
7
setpoint adjustment and 0min to 24Hr override timer with
7
automatic return
8
9 Selectable Fahrenheit or Celsius temperature display
•
9
Adjustable Backlight Brightness
•
9
Integrated Installer Setup Menu
10
•
10
Occupancy Sensor Inputs (use RS-OSC or RS-OSW)
•
10
10
11-16
17
17
18-19
19
2

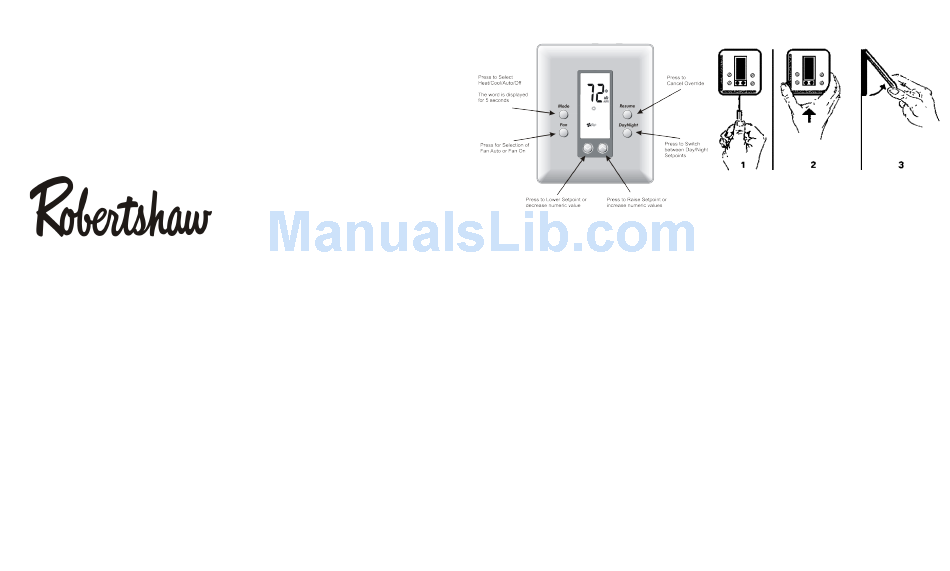

BUTTON OPERATION

THERMOSTAT LOCATION
To ensure proper operation, the thermostat should be mounted
on an inside wall in a frequently occupied area of the space. In
addition, its position must be at least 18" (46 cm) from any
outside wall, and approximately 5', (1.5 m) above the floor in a
location with freely circulating air of an average temperature.
Be sure to avoid the following locations:
Behind doors or in corners where freely circulating air is
•
unavailable
Where direct sunlight or radiant heat from appliances might
•
affect control operation
On an outside wall
•
Adjacent to, or in line with, conditioned air discharge grilles,
•
stairwells or outside doors
Where its operation may be affected by steam or water pipes
•
or warm air stacks in an adjacent partition, or by any
unheated / uncooled area behind the thermostat
Where its operation may be affected by lighting dimmers next
•
to it
Where its operation will be affected by the supply air of an
•
adjacent unit
Near sources of electrical interference such as arcing relay
•
contact
3
REMOVING THE THERMOSTAT FROM THE
BACKPLATE
1. Insert a flat blade screwdriver or coin 1/8" into the slot located
in the bottom center of the thermostat case and twist 1/4 turn.
When you feel or hear a click, grasp the case from the bottom
two corners and separate from the backplate as shown in the
diagram at the left. Some models require more force than
others when separating due to the number of terminals used.
2. Swing the thermostat out from the bottom.
3. Lift the thermostat up and off the backplate.
4. Place the rectangular opening in the backplate over the
equipment control wires protruding from the wall and, using
the backplate as a template, mark the location of the two
mounting holes
NOTE: There are several versions of the RS300N thermostat.
The wiring instructions for the equipment are identical.
5. Use the supplied anchors and screws for mounting on drywall
or plaster; drill two 3/16" (5mm) diameter holes at the marked
locations; use a hammer to tap the nylon anchors in flush to
the wall surface and fasten backplate using the supplied
screws. (Do not over tighten!)
6. Connect the wires from your system to the thermostat
terminals as shown in the wiring diagrams. Carefully dress the
wires so that any excess is pushed back into the wall cavity or
junction box. Ensure that the wires are flush to the plastic
backplate. The access hole should be sealed or stuffed to
prevent drafts from affecting the thermostat.
NOTE: This product must be supplied from a UL/CSA
LISTED Class 2 power supply. Operation from other supplies
may result in a potential fire risk.
4
250028-001
