Summary of Contents for DAVI & CIA DP LITE 2
- Page 1 USER’S MANUAL MA33-02/D 01/09/2016 www.davicia.com...
- Page 2 USER’S MANUAL MA33-02/D...
-
Page 3: Table Of Contents
USER’S MANUAL MA33-02/D INDEX 1. DESCRIPTION .......................... 4 2. PART LIST ..........................5 3. STARTING UP........................... 6 4. LOCATION AND ENVIRONMENT ................... 6 5. OPERATION ..........................6 6. LIGHT INDICATORS ........................ 7 6.1. DOCK INDICATORS ......................7 6.2. CAMERA INDICATORS ..................... 7 7. -
Page 4: Description

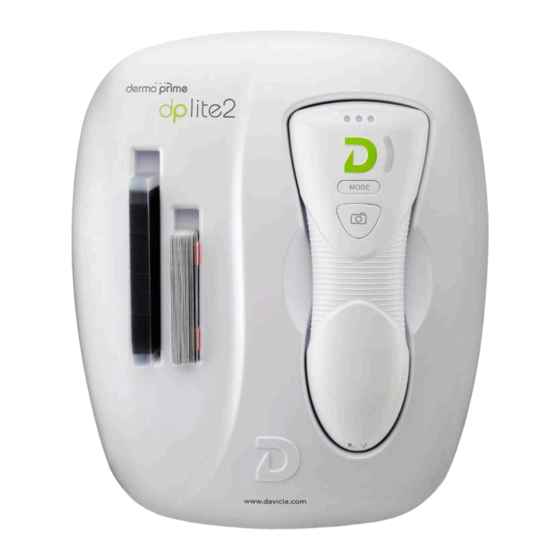

USER’S MANUAL MA33-02/D 1. DESCRIPTION Charging dock, top view Camera, back view Charging dock, back view Camera, front view (1) Housing for sebum indicators (9) ON / OFF Switch (2) UV Lamp (10) Hydration sensors (3) Battery charging connectors (11) Optics fastener (4) Indicators of the battery status (12) Battery charging connection (must make (5) Capture mode indicator... -
Page 5: Part List
2. PART LIST Charging dock (x1) Camera (x1) User’s manual Sebum indicators (x50) Power adaptor 12VDC (x1) Keratin indicators (x200) USB charger (x1) Cloth cleaner Air blower... -
Page 6: Starting Up
USER’S MANUAL MA33-02/D 3. STARTING UP o Connect the equipment to the power supply (8) o Switch ON the equipment (9) o Switch ON the Wifi Camera (7) o The battery LEDs (4) of the camera turn on automatically. o Then, you must wait until the Capture mode indicators of the camera (5), light up in orange, green and blue colors. -
Page 7: Light Indicators
USER’S MANUAL MA33-02/D 6. LIGHT INDICATORS 6.1. DOCK INDICATORS Power LED Power ON Power OFF 6.2. CAMERA INDICATORS Battery LED Very low battery Half battery Full battery (Blinking) On charging Capture mode Pink Moisture and Sebum Pores Green Wrinkles Blue Spots Yellow UV (Acne) -
Page 8: Maintenance And Cleaning
USER’S MANUAL MA33-02/D 7. MAINTENANCE AND CLEANING Please, follow the instructions: • Clean only with dry cloth. • Only use attachments/accessories specificed by the manufacturer. • NEVER insert any dry cloth or cleaning material into the optic, it can cause the malfunction of the device. -
Page 9: Technical Specifications
USER’S MANUAL MA33-02/D 8. TECHNICAL SPECIFICATIONS Model: DPLITE2 Manufacturer: DAVI & CIA C/Murcia 35 nave G E08830 Sant Boi de Llobregat Barcelona – SPAIN Weight: 0.8 kg (aprox.) – including the camera Max. external dimensions: 185 x 220 x 90 (mm) Power supply: 12 VDC Consumption:... -
Page 10: Warranty
USER’S MANUAL MA33-02/D 9. WARRANTY We provide a 1-year warranty from the date of purchase. The warranty covers manufacturing defects or defects occurring as a result of normal use and operation. It excludes all removable parts such as batteries, wires, power supply devices, etc. Faults falling within the warranty period shall be rectified free of charge upon presentation of the purchase receipt for the appliance. -
Page 11: Ce Declaration Of Conformity
USER’S MANUAL MA33-02/D 10. CE DECLARATION OF CONFORMITY FABRICANTE PRODUCTO: DAVI & CIA S.L. PRODUCT MANUFACTURER: DIRECCIÓN: C/ Murcia, 35, Nave G ADDRESS: Polígono Industrial Can Calderón E08830 Sant Boi de Llobregat BARCELONA - ESPAÑA DECLARAN BAJO SU RESPONSABILIDAD QUE EL PRODUCTO: DECLARE UNDER THEIR RESPONSIBILITY THAT THE PRODUCT Nombre DPLITE2... - Page 12 USER’S MANUAL MA33-02/D Download the dermoprime software manual from: http://www.davicia.com/images/manuals/MS05-02.pdf C/ Murcia, 35 Nave G Pol.industrial Can Calderón. Tel. +34 93 654 32 32 info@davicia.com E 08830 Sant Boi de Llobregat. Barcelona. Spain Fax. +34 93 654 16 62 www.davicia.com...
