Introduction

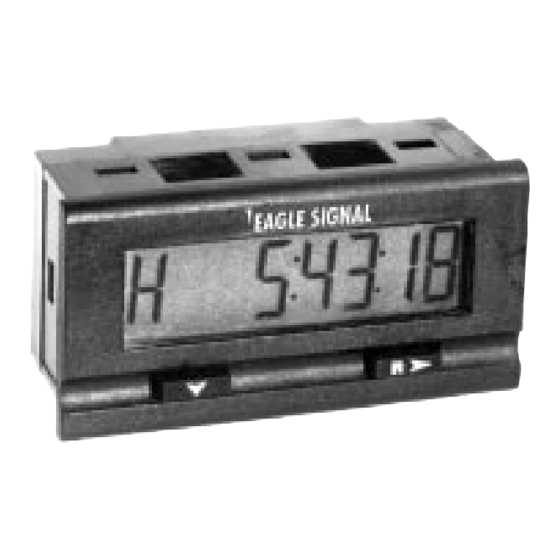

Within the Danaher Controls A103 family you'll find a product to meet nearly every
requirement for panel mounted control and indication. Housed in a DIN standard 36mm x
72mm case, the A103-006 is designed to accumualate elapsed time for applications such as
machine maintenance. The unit is field programmable to display the elapsed time in a
variety of units.
The supertwist LCD display with 6 digit display, plus time unit legend, provides easy viewing
at a glance. For conditions where ambient light is poor, the display can be backlit by
connecting an external DC (10-28 Volt) power supply. The time value can either be reset
through the front panel or via a remote signal.
Powered by either one or two replaceable 3V Lithium batteries, this unique design allows for
a new battery to be installed before removing the old one, thereby retaining count total and
program data. A low battery indicator appears on the screen to provide a warning several
weeks before the end of battery life. If two batteries are used simultaneously, the individual
expected life doubles to 10 years.
Setup is quick and simple as the two
front panel keys are used to scroll
through 2 menu choices. A NEMA 4X
front panel and noise immunity
tested to IEC 801 level 3 makes this
unit suitable for harsh environments.
Several option modules are also
available that provide added
functionality and convenience.
Features
•
Large, easy to read 6-digit supertwist LCD
display with backlighting capability
•
3 Volt lithium battery provides long life
and eliminates the need for external power
•
Elapsed time resettable remotely or from
the front panel (if enanbled)
•
Field programmable time units: Seconds,
Minutes, Hours, Hours:Minutes:Seconds
•
Option Modules provide added
functionality and convenience
•
Simple menu-driven setup
•
NEMA 4X rated front panel for use in
washdown environments
Index
Overview
Operation
page 2
Terminal Connections
page 2
Setup
Installation
page 3
Programming
page 3
General
Specifications
page 4
Warranty
page 4
Technical Manual
701954-0007
Eagle Signal
brand
A103-006
Elapsed Time
Indicator
1
Advertisement
Summary of Contents for Eagle Signal A103-006
-
Page 1: Elapsed Time
Housed in a DIN standard 36mm x 72mm case, the A103-006 is designed to accumualate elapsed time for applications such as machine maintenance. The unit is field programmable to display the elapsed time in a variety of units. - Page 2 O V E R V I E W OPERATION EAGLE SIGNAL VEEDER-ROOT 345678 1. Time Display 3. Next/Reset Key 2. Down Key 3. Next/Reset Key: Resets the accumulated time if Front Panel Reset 1. Time Display: Accumulates time when the timing start input is active.
- Page 3 S E T U P INSTALLATION Battery Slots Battery Installation - The unit is shipped with one battery, which is not installed. Remove the battery cover by pushing inward and down. Install the battery in either of the two slots. The unit runs on a single battery, and the second slot is provided to allow for installing a new battery before Front Panel Installation - Place the unit in the panel through the removing the old one, retaining count total and program data.
- Page 4 G E N E R A L SPECIFICATIONS Timing Start Input (Terminal 3): Power Source: Type: Single or dual 3V Lithium battery Type: NPN Signal or contact-closure Expected Life: 5 years typical-single battery, 10 Count Speed: 30 Hz max (50% duty cycle) years typical-dual batteries Logic: Low <...
