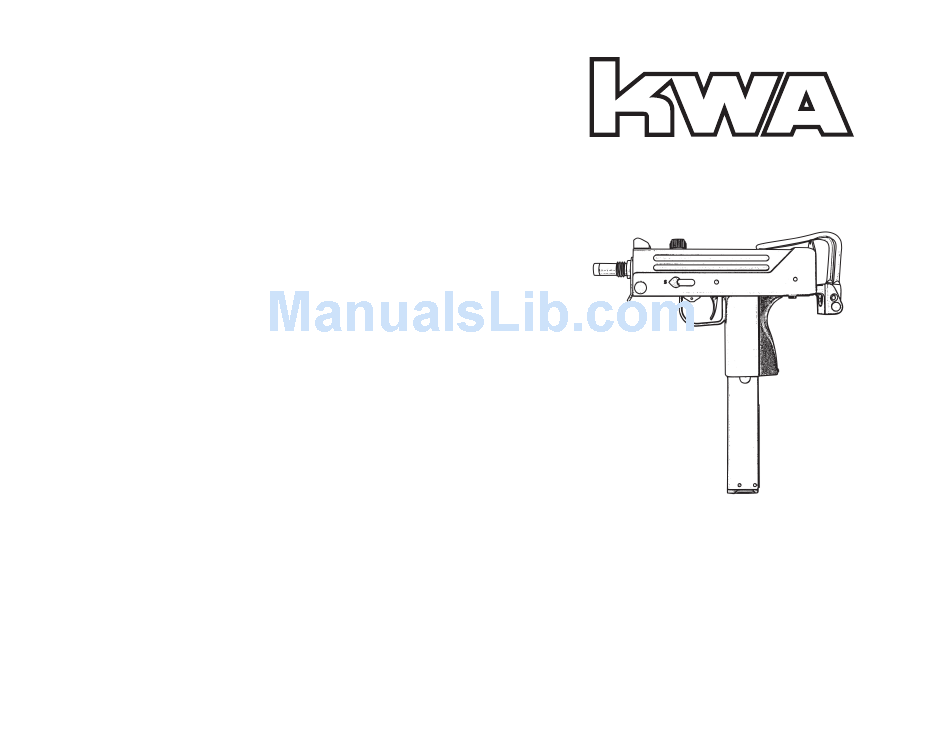

- Page 1 MMD09_M11A1 V02 R2012.09.06 ® OPERATOR’S MANUAL M11A1 NS2 KWA Performance Industries, Inc. Copyright © July, 2009 KWA Performance Industries, Inc. All Rights Reserved.
-
Page 2: Table Of Contents
M11A1 NS2 TABLE OF CONTENTS MAGAZINE DIAGRAM AND PARTS LIST Use of this Manual ...................3 Safety Guidelines ..................3-4 Specifications ....................4 Package Contents ..................4 Charging Gas ....................5 Loading BBs ....................6 Locking Bolt ....................7 Loading Magazine ...................7 Selector ......................8 Safety ......................8 Retractable Stock ....................9... - Page 3 M11A1 NS2 PARTS LIST USE OF THIS MANUAL Before operating the Airsoft gun, read this manual in its entirety. Important safety topics Parts # Description Parts # Description Parts # Description and tips are discussed throughout all of the chapters. It’s important that the operator know the principles of gun handling safety and operation prior to firing the Airsoft gun.
-
Page 4: Use Of This Manual
M11A1 NS2 SAFETY GUIDELINES Identify Your Target and Backstop Before you pull the trigger, make certain of your target and what is beyond it. The Airsoft gun should never be fired at surfaces such as rocks, glass, water, or other hard surfaces where BBs are likely to ricochet in unpredictable directions. -
Page 5: Specifications
• Adjustable hop-up *Individual test results may vary depending on brand of BBs, ambient temperature, and chronograph used. PACKAGE CONTENTS 1 M11A1 NS2 Airsoft gun 1 Bottle of Silicon Oil 1 Hi-Cap Magazine 1 Sample Bag of Airsoft BBs 1 Hop-Up Adjustment Tool... -
Page 6: Charging Gas
M11A1 NS2 CHARGING GAS OPERATING UNDER UNUSUAL CONDITIONS Unusual conditions are defined as any condition requiring special maintenance. Release the magazine by pressing the magazine catch. Perform maintenance outlined for the climate similar to your operational area Push the gas canister nozzle into the charging valve. (Make sure both the canister Extreme Cold: and magazine are inverted and in the vertical position when charging.) -
Page 7: Loading Bbs
Use only the recommended 100% silicone oil, available for purchase at the Airsoft dealer BBs should stack staggered for maximum round capacity. where you purchased your KWA products. Any other type of lubricant may damage the products. Make sure to have a 3mm clearance between BBs and the top lip of the magazine. -
Page 8: Locking Bolt
M11A1 NS2 Locking Bolt BASIC TROUBLESHOOTING GUIDE FOR SMG To lock the bolt, pull the bolt handle back to the rear of the gun. SYMPTOMS POSSIBLE CAUSE SOLUTIONS Bolt jams / Will not complete cycle Dry internals Add silicone to cylinder / main seal/ rails... -
Page 9: Selector
M11A1 NS2 ASSEMBLY SELECTOR Place the recoil spring onto the bolt assembly. The selector is located on the left side of the frame. Select (S) to fire semi-automatic (single shot) and select (F) to fire full automatic (continuous fire). Lock the bolt assembly onto the upper frame. -
Page 10: Retractable Stock
M11A1 NS2 RETRACTABLE STOCK Turn the bolt knob 90˚ “clockwise” and pull the knob upward and out. The bolt Push the wire handles inward. handle “cut-out” should be aligned parallel to the slide in order to remove the bolt handle. -
Page 11: Open Bolt
M11A1 NS2 DISASSEMBLY OPEN BOLT It is not recommended to disassemble the gun After the last shot has been fired and ejected. The bolt will lock halfway and the ejection unless for general maintenance, or to clear port will remain opened. -
Page 12: Hop-Up System
HOP–UP SYSTEM ADJUSTMENT POINT HOP UP BB TRAJECTORY PATTERN The Hop-Up device is one of KWA’s standard features, giving Airsoft BBs greater stability, ADJUSTMENTS EFFECTIVENESS further travel and increased accuracy. Airsoft BBs are light-weight and can be affected by TURN KNOB wind when fired.
