Purpose for use

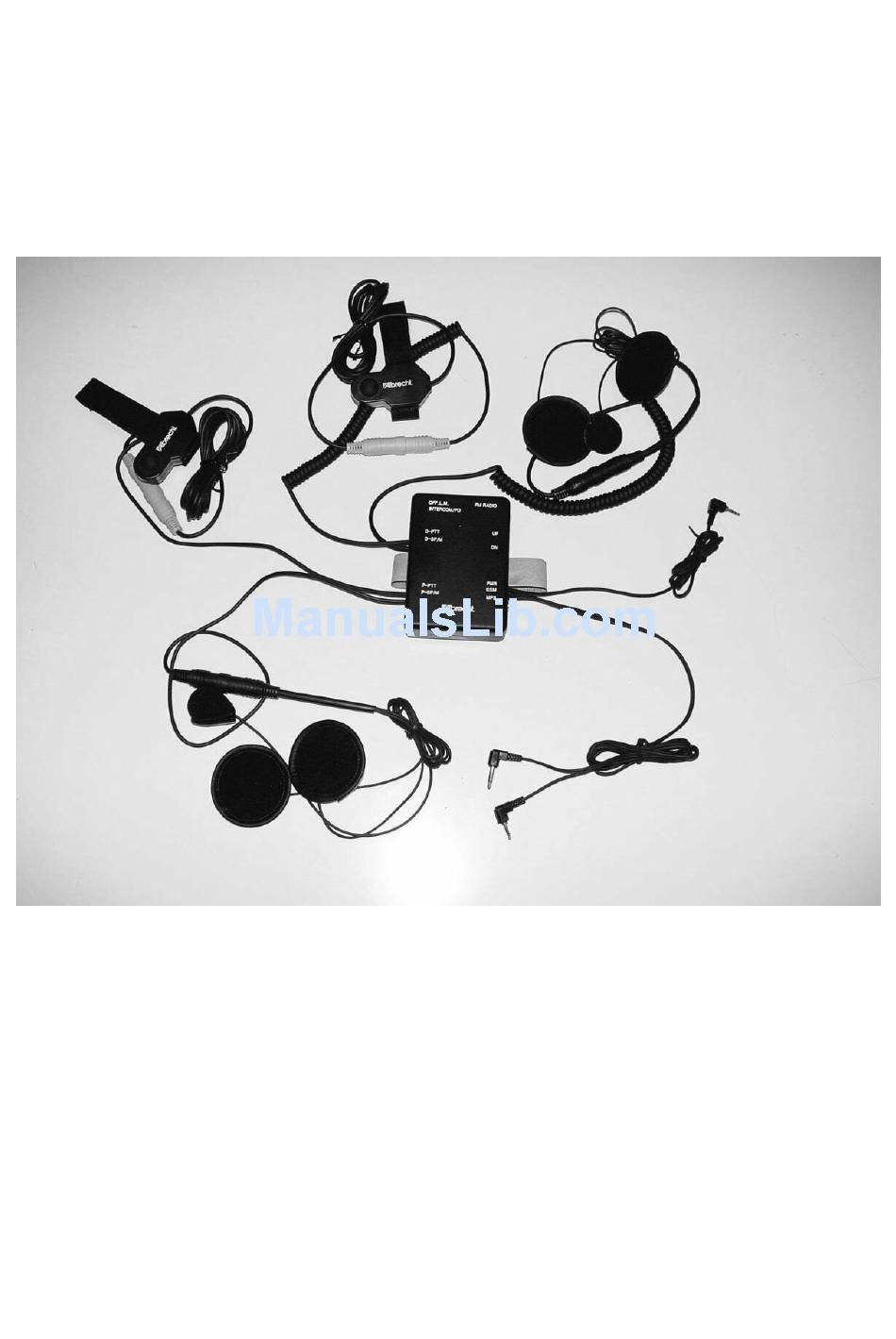

The communication system AE 500 has been designed for speech communication between motorbike driver

and passenger. To achieve this you use the supplied helmet speaker sets which have to be fitted into already

existing integral helmets (the set cannot be installed in jet helmets). The set gives you the opportunity for duplex

communication between driver and passenger and vice versa.

The integrated Mono FM radio can be switched over to radio reception. The talking connection has priority to

radio reception: while talking the radio volume will be automatically decreased.

Furthermore the following equipment can be connected:

• external MP 3 or CD/DVD player via 3.5 mm jack plug (instead of integrated radio)

• a radio with PMR 446 or LPD standard for driver and passenger in connection with supplied

transmit (push-to-talk) keys

• GSM mobile phone (automatic incoming call switching mode must be active) for driver.

The set is being operated with 2 x AA size Alkaline or rechargeable NiCd/ NiMH batteries independent from

vehicle power supply.

Operating manual / Hints for connection

Motorbike communication system

AE 500

Table of Contents

Do you have a question about the AE 500 and is the answer not in the manual?

Page 1 AE 500 Purpose for use The communication system AE 500 has been designed for speech communication between motorbike driver and passenger. To achieve this you use the supplied helmet speaker sets which have to be fitted into already existing integral helmets (the set cannot be installed in jet helmets). The set gives you the opportunity for duplex communication between driver and passenger and vice versa.
Page 2 CE- mark. Conditions for accessories Radio connection: The radio connection of the AE 500 fits to most of PMR with 2.5 mm / 3.5 mm plug combination.T he universal plug 2.5 mm for microphone and and 3.5 mm for the ear set is being supported by many other radios.
Page 3 The connections to the helmet set (black) and the talk buttons (yellow) are waterproof and cannot be mixed up. Connect the plugs with the markings facing each other. Apart from a possibly connected mobile phone the connections of driver and passenger have the same priority. Mobile phone calls can only be accepted at the driver`s head set as a standard.
Page 4 3.5 mm plug into the speaker/phone sockets of your radio and to conect the push-to-talk keys supplied with the AE 500 system. Please use the same switch position (L, M or H ) as for intercom. Because some commercial radio models can provide a very high loudness volume, you should initially check with lower receiving volume and increase only if necessary.
