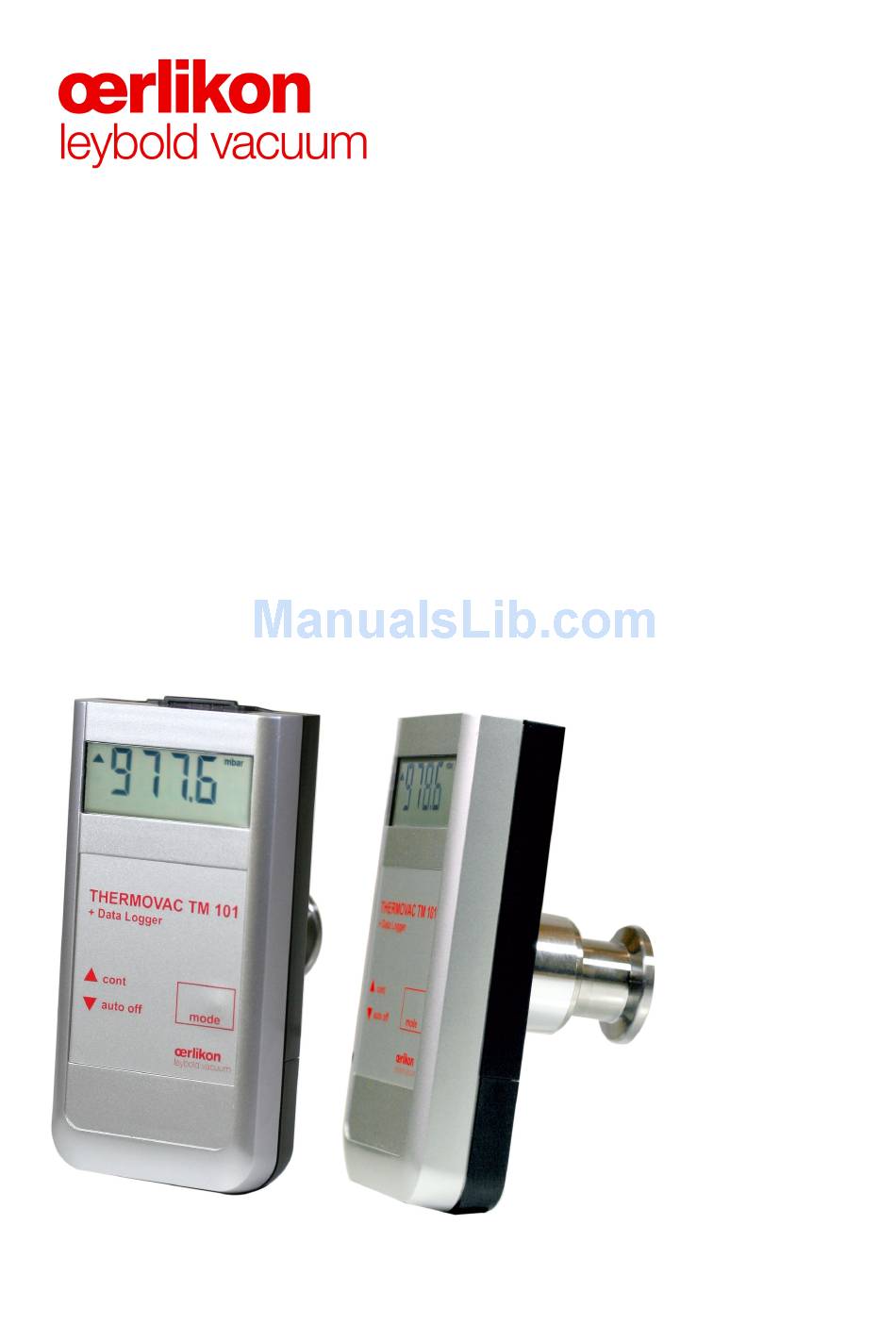

- Page 1 THERMOVAC TM101 Operating Instructions 300306186_002_A2 Part-No.: 230081V01 (TM101 incl. 9V battery) Part-No.: 230082V01 (accessory set)
-
Page 2: Table Of Contents
Logging Rate ................14 Adjustment................15 Pressure Units ................16 Maximum Operation Time ............17 Gas Correction Factor .............. 18 Maintenance and Service ............19 Technical Data ................20 Declaration of Conformity ..............21 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 3: Safety Instructions
Pictogram-Definition Danger of personal injury Danger of damage to the unit or system Important information about the product, it's handling or about a particular part of the documentation, which requires special attention 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 4: The Tm 101
Due to the integrated data logger functionality it is possible to store up to 2000 measurements in the vacuum meter. By means of the USB interface you can transmit the stored measurement data to a PC or record measurements online on PC as well. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... - Page 5 No liability or warranty will be accepted for claims arising from improper use. The user bears the responsibility with respect to the used process media. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum...
-
Page 6: Overview
Renew Battery "ur": < 5.0-4mbar Operation Mode Pressure Unit Mode Small Flange DN16 ISO KF USB Interface Connection f. Cover of Mains Adapter Battery 15V=, 50mA Compartment jack 2,5mm (+ on top) 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 7: Installation
KF flange connections with elastomer sealings cannot withstand pressures above 1.5 bar. Process media thus can leak and pos- sibly damage your health. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 8: Electrical Connection
The device still can be used. Only when the battery is flat the vacuum meter is switched off. Rechargeable batteries have to be removed for charging. Please use suitable, commercially available chargers. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 9: Usb Interface
The USB interface can be connected to a PC. In combination with the VacuGraph™ Windows™ software, for instance, you can read-out the data memory of your TM 101, transmit measurements online to the computer or configure the vacuum meter. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 10: Operation
5.1. Before a new data logging is started the internal memory of the gauge must be cleared! This means that only one continuous measuring process can be saved at a time! 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... - Page 11 Without further keystroke: return to 1) after 4s. 4) Delete Memory: "clr" flashes in the display. MODE On further keystroke the stored Min-/Max-values as well as the data memory are deleted. Without further keystroke: return to 1) after 4s. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum...
-
Page 12: Pc Mode
The separately saved values of minimum and maximum pressure cannot be transmitted to the PC. Further you can perform any parameter settings such as logging rate, display unit or gas correction factor easily by means of the VacuGraph™ software. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... - Page 13 The effect can be reduced by having the in- strument's flange connected to ground. After the USB cable is disconnected the TM101 switches into Auto-Off Mode. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum...
-
Page 14: Configuration
(e.g. MODE 2.5). Data volume is reduced this way and optimum memory utilization achieved. When data logging is active minimum and maximum pressure are recorded simultaneously. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 15: Adjustment
"Torr" MODE during the adjustment! Using the Mode-Key you can now adjust the mbar reference pressure: very keystroke changes MODE the displayed value for another 1mbar alter- nating up- and downwards. 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 16: Pressure Units
To set the displayed pressure unit, switch the TM 101 into Configuration Mode. For this the instrument must be switched-off. Hold the Mode-Key pressed then, until the display shows "rAtE". Then press Mode-Key several times, until the display shows "unit": MODE 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 17: Maximum Operation Time
Important note: If a maximum operation time other than "cont" is set, the gauge will be switched-off anyway after the selected time span has elapsed. An active data logging will be stopped! 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 18: Gas Correction Factor
The last setting of the gas correction factor is saved. If a correction factor different from 1,00 is mbar set, symbol "S1" is shown at the lower boundary of the display! 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 19: Maintenance And Service
>800mbar f. atmosphere adjustment, <4x10 mbar f. zero adjustment measurement error out of send unit for repair adjustment range error message "Err1" defective sensor send unit for repair 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 20: Technical Data
Li-battery: <100h, 6LR61 Alkaline:<40h Serial Interface Mini-USB, Type B, 5pin, female, Virtual Com Port protocol Vacuum Connection Small flange DN16 ISO KF Display LCD 12mm Protection Class IP 40 Weight 230g (incl. battery) 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... -
Page 21: Declaration Of Conformity
Declaration of Conformity 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum... - Page 22 Notes __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum...
- Page 23 Notes __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ 300306186_002_A2 - 12/2010 - © Oerlikon Leybold Vacuum...
- Page 24 Sales and Service Germany Europe Asia Japan Oerlikon Oerlikon Belgium Netherlands P.R. China Leybold Vacuum Leybold Vacuum GmbH Oerlikon Oerlikon Oerlikon Japan Co., Ltd. Bonner Strasse 498 Leybold Vacuum Nederland Leybold Vacuum Nederland Leybold Vacuum (Tianjin) Headquarter D-50968 Cologne B.V.
