318

298

323

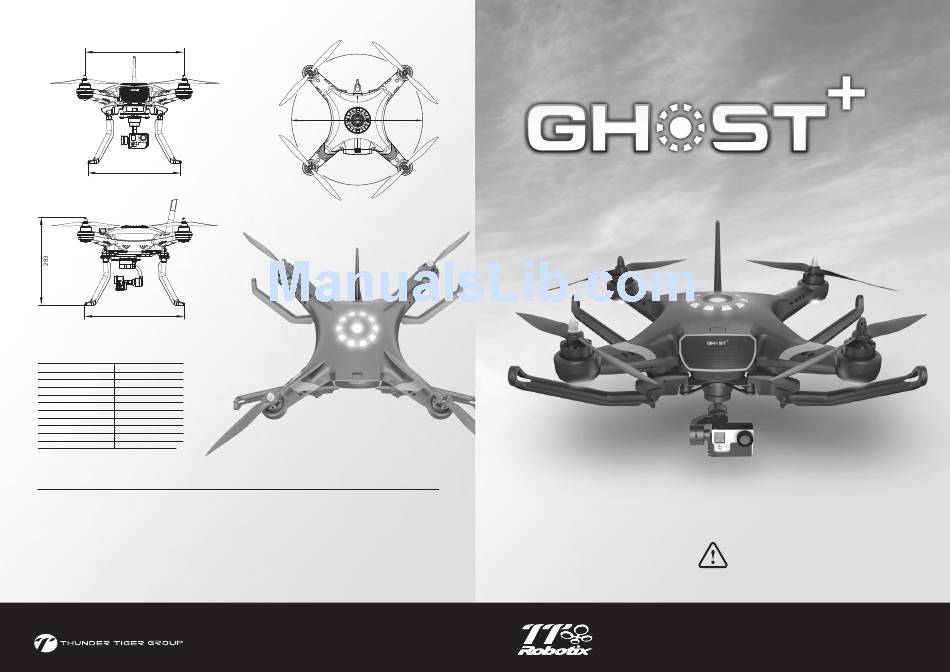

SPECIFICATIONS

Ghost +

Product Name

Quadcopter

Frame type

Diagonal distance

450mm

1.55Kg(motor,esc,prop. Inc'd)

Frame weight

28x14mm

Motor stator size

Motor KV

450rpm/V

30A

ESC current

6S Lipo(22.2V)

ESC voltage

Propeller size

11"x5"

2.25Kg(6S/6000mAh)

Takeoff weight

25mins(6S/6000mAh)

Max hover time (est.)

FEATURES

1. Enlarged frame space provides abundant assembly space for electron systems and easier to install various auxiliary equipment required for

aerial photography

2. Intelligent power display system on the surface provides battery capacity check and anti-spark design

3. Can use either proprietary battery or use standard LiPo batteries and saving cost

4. Compatible for major flight control systems & gimbals on the market

5. Built-in "Follow Me" function let your quadcopter can "Follow You" to everywhere

6. Retractable landing skids provide better view of the camera lens

7. High performance 3-Axis gimbal suitable for the GOPRO

8. High performance handycam carrier for the Sony PJ series(Optional)

Manufactured / Hersteller :

Thunder Tiger Corp.(Ningbo)

28 Jin-Feng Road, Liang Hui

Industrial Park, Yuyao, Zhejiang

thundertiger.com

315400 China

450

QUICK START GUIDE

JK6192

No.4030-F12

* Camera not included

This product is not a toy. Before you assemble and use this product, please

read this manual thoroughly.

This product and its contents may different from the graphics shown on this

manual and are subject to change without prior notice due to product

improvements and specification changes.

More information can view the tutorial videos on our TTR official website (www.ttrobotix.com)

or YouTube channel (https://www.youtube.com/user/ThunderTigerVideo)

Table of Contents

Need help?

Do you have a question about the 4030-F12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ghost 4030-F12

Page 1 No.4030-F12 SPECIFICATIONS Ghost + Product Name Quadcopter Frame type Diagonal distance 450mm 1.55Kg(motor,esc,prop. Inc’d) Frame weight 28x14mm Motor stator size Motor KV 450rpm/V ESC current 6S Lipo(22.2V) ESC voltage Propeller size 11”x5” 2.25Kg(6S/6000mAh) Takeoff weight 25mins(6S/6000mAh) Max hover time (est.)
Page 2: Warranty
Thank you for purchasing the TTR product. This product is a high-precision quadcopter. Any misuse may result in damage to property, injury, or even death. The user must conform to the law and use the equipment responsibly. This product is not suitable for people under the age of 18.
Page 3: Contents Included
CONTENTS INCLUDED GHOST 2.4G Radio GOPRO 3-Axis Gimbal Balance Charger for 11" Propeller 6S Li-Po Battery Smart Phone Holder Li-Po Battery 2.5mm 1.5mm Landing Skid Compass Holder Wrench Hex Wrench OPTIONAL PARTS & ACCESSORY Handycam Gimbal,SONY PJ Series FPV Set,5.8G...
Page 4: Top View
FEATURE TOP VIEW BOTTOM VIEW Battery Capacity Indicators Flight Status Indicators Micro-USB Port 24V Power Wire Out Binding Button Power Switch Battery Box Gimbal Signal Wire Out FRONT VIEW Propellers Compass Motors Direction Lights Retract Landing Skid 3-Axis Gimbal * Camera not included -03-...
Page 5: Basic Flight Operation
RADIO FUNCTION INTRODUCTION Reract Landing Skid Switch Antenna Intelligent Mode Switch Flight Mode Switch Gimbal Angle Knob(Roll/Pan) Gimbal Angle Knob(Tilt) Joystick Charger Jack Binding Button Power Switch Stick Mode Switch BASIC FLIGHT OPERATION Mode 1 Mode 2 Quadcopter Movement Front Left Right Aileron...
Page 6 COMMANDER TRANSMITTER MODE - 1 CH 9 Retract Landing Skid IOC OFF Take Off CH 5 CH 6 Landing Assist Intelligent Mode Flight Mode Return Home IOC ON CH 7 CH 8 Tilt Gimbal Trim Gimbal Trim Roll or Pan Forward 100% Full speed CH 2...
Page 7 COMMANDER TRANSMITTER MODE - 2 CH 9 Retract Landing Skid IOC OFF Take Off CH 5 CH 6 Landing Assist Intelligent Mode Flight Mode Return Home IOC ON CH 7 CH 8 Tilt Gimbal Trim Gimbal Trim Roll or Pan 100% Full speed Forward CH 3...
Page 8 INTRODUCTION The GHOST + is an all in one, ready to fly quadcopter designed for aerial photography.Before shipping from the factory, it has been configured and fully tested. It means you just need a few assembly steps as shown below, then you can enjoy your flight.
Page 9 COMPASS SET Put the compass set into the body as shown and secure screws tightly. DO NOT pull the connected wire too hard. Phillips Tapping Screw, M2.5 x 8 -08-...
Page 10 PROPELLER Install the propeller on the motor Diagram for Propeller FRONT shaft and use the adapter to tighten Assembly the propellers. Be sure to match the C.W. C.C.W rotate direction sign on propeller Please note the orientation and body arm. of the propeller.
Page 11: Smart Phone Holder
3-AXIS GIMBAL Connect wire built into the quadcopter, easier for the installation of the high performance 3-axis gimbal. Please refer to the gimbal manual for more detail. SMART PHONE HOLDER Assembly the smart phone holder as shown, and use the socket screws to correctly attach the smart phone holder on the radio.
Page 12: Battery Box
RADIO 1. Be sure Intelligent Mode, Flight Mode and Gear switched to the uppermost position. 2. Install 6 x AA batteries. CAUTION A continuous beeping sound emitted from the radio indicates LOW BATTERY VOLTAGE, please change battery. BATTERY BOX 2 pcs of 3S batteries link introduction 1 pcs of 6S battery link introduction 3S battery #1 3S battery #2...
Page 13: Power On And Off
0.05V. 2. When it is final stage urgent low Magnetic compass calibration Vertical Alignment voltage alert, the Ghost + will land LED solid in RED originally (user could adjust landing position during landing but CAN IMU Error LED solid in YELLOW NOT push the throttle stick).
Page 14 TTR HERO APP DOWNLOAD 1. Download the TTR HERO App from the Google Play Store. 2. You can also use the QR Code below to scan and download the TTR HERO App. DOWNLOAD APP FOR FREE NOW TTR HERO Scan QR Code above TTR HERO APP CONNECTION 1.
Page 15: Magnetic Compass Calibration
2. Select "Horizontal Alignment" in the dialog box, and click "OK" button to start Horizontal calibration. 3. Carefully rotate Ghost + horizontally two times. Ensure that the Green LED light remains ON during this procedure. 4. Click "Magnetic Compass" button again then select "Vertical Alignment" and click "OK" button to start Vertical calibration.
Page 16 ENJOY YOUR FIRST FLIGHT 1. Placing the Ghost+ on the ground and make sure the back side of the Ghost + towards to you. 2. Switch on the radio first then turn on the Ghost + power. 3. If you want to use your smart phone, please make sure TTR HERO App is well connected and switched on.
Page 17: Exploded View
EXPLODED VIEW Secure all screws shown on this page, the marked parts with dropping a few threadlocker especially. PV1804 AQ6469 PV1814 The “Front Arrow” MUST AQ6545 point towards the front side AT6203 PV1813 of the quadcopter. 8036 AQ6468 AQ6550 2390R AQ6551 PV1814 8047-G...
Page 18 EXPLODED VIEW Secure all screws shown on this page, the marked parts with dropping a few threadlocker especially. AQ6546 PV1812 PV1813 PV1813 PV1813 PV1813 PV1806 PV1813 PV1807 PV1813 PV1813 PV1813 -17-...
Page 19 EXPLODED VIEW Diagram for Propeller FRONT Assembly C.W. C.C.W Please note the orientation of the propeller. If they are not assembled properly as illustrated, quadcopter can not takeoff and result in C.C.W. C.W. unexpected damage 2850 PV1803 AC7180 AC7180 PV1811 2852 PV1805 AP0003...
Page 20: Spare Parts
AQ6546 POWER DISPLAY LED MODULE SET DIRECTION LIGHT MODULE SET GPS MODULE SET COMPASS MODULE SET AQ6550 AQ6551 AT6203 PV1803 WIFI MODULE SET,GHOST STATUS LED MODULE SET POWER CONNECTING WIRE BATTERY BOX PV1804 PV1805 PV1806 PV1807 POWER LIGHT COVER LANDING SKID...
Page 21 SPARE PARTS 2540 2850 2852 8036 6S CHARGER BATTERY,6S 6000mAh BATTERY SET(W/BATTERY BOX),6S 6000mAh HERO FLIGHT CONTROL SYSTEM,GHOST 8047-G 8901 ESC,30A OPTO 2.4G RADIO SET OPTIONAL PARTS & ACCESSORY AP0002 8034 8035 HANDYCAM GIMBAL,SONY PJ SERIES FPV SET,5.8G OSD SET...
Page 24 DISCLAIMER 產品聲明書 General Statement/一般聲明  All Thunder Tiger products are high-precision, which any misuse may result in damage to property, injury, or even death. The user must conform to the law and use the equipment responsibly. 本產品結構精密、高專業度，錯誤操作可能物體損害、人員受傷甚至死亡，用戶須遵守法律並負責任地使用產品。  This product is not recommended for people under the age of 18. User agrees that he/she is responsible for his/her own conduct and content while using this product, and for any consequences thereof.
Page 25 本產品僅限個人使用用途，嚴禁使用本產品進行任何違反國際及當地法律法規的行為。  User shall not use this product to: (a) defame, abuse, harass, stalk, threaten or otherwise violate the legal rights (such as rights of privacy and publicity) of others; (b) photograph people or their privacy area without their consent or photograph any non-photographing area without the prior authorizations;...
Page 26  If there is any problem that cannot be solved, please contact the Thunder Tiger authorized dealers. 如果遇到無法解決的問題，請與雷虎正式授權的代理商取得聯繫。 LIMITATION OF LIABILITY/責任限制 Thunder Tiger accepts NO liability for damage(s) or injuries incurred directly or indirectly from the use of this product in the following conditions: 使用本產品時，因下列原因造成人身傷害，財產損失等...
Page 27 背光、被障礙物遮擋，視線模糊，視力不良等不適合操控以及其它不適合操控的狀況下使用，造成的損害。  Damage(s) or injuries caused by using in bad weathers, such as a rainy day or windy, snow, hail, lightning, tornadoes, hurricanes etc. 在惡劣天氣下操控，如雨天或颳風、下雪、冰雹等不良天氣下使用。  Damage(s) or injuries caused when the product is in the following situations, collision, fire, explosion, floods, tsunamis, subsidence, ice trapped, avalanche, debris flow, landslide, earthquake, etc.
Page 28 Additional Information and Updates/其他說明與更新  Please see all attachments along with the products for more information, or visit the Thunder Tiger official website at www.thundertiger.com or www.ttrobotix.com to refer to relevant updates or information. 其他相關內容部分，敬請詳閱所有產品之附加文件，或直接登入雷虎官網查詢產品相關訊息。  This Disclaimer provides the instruments for user’s reference only, and shall not constitute as Thunder Tiger assumes any or all liabilities.
