Summary of Contents for Afresco AC881

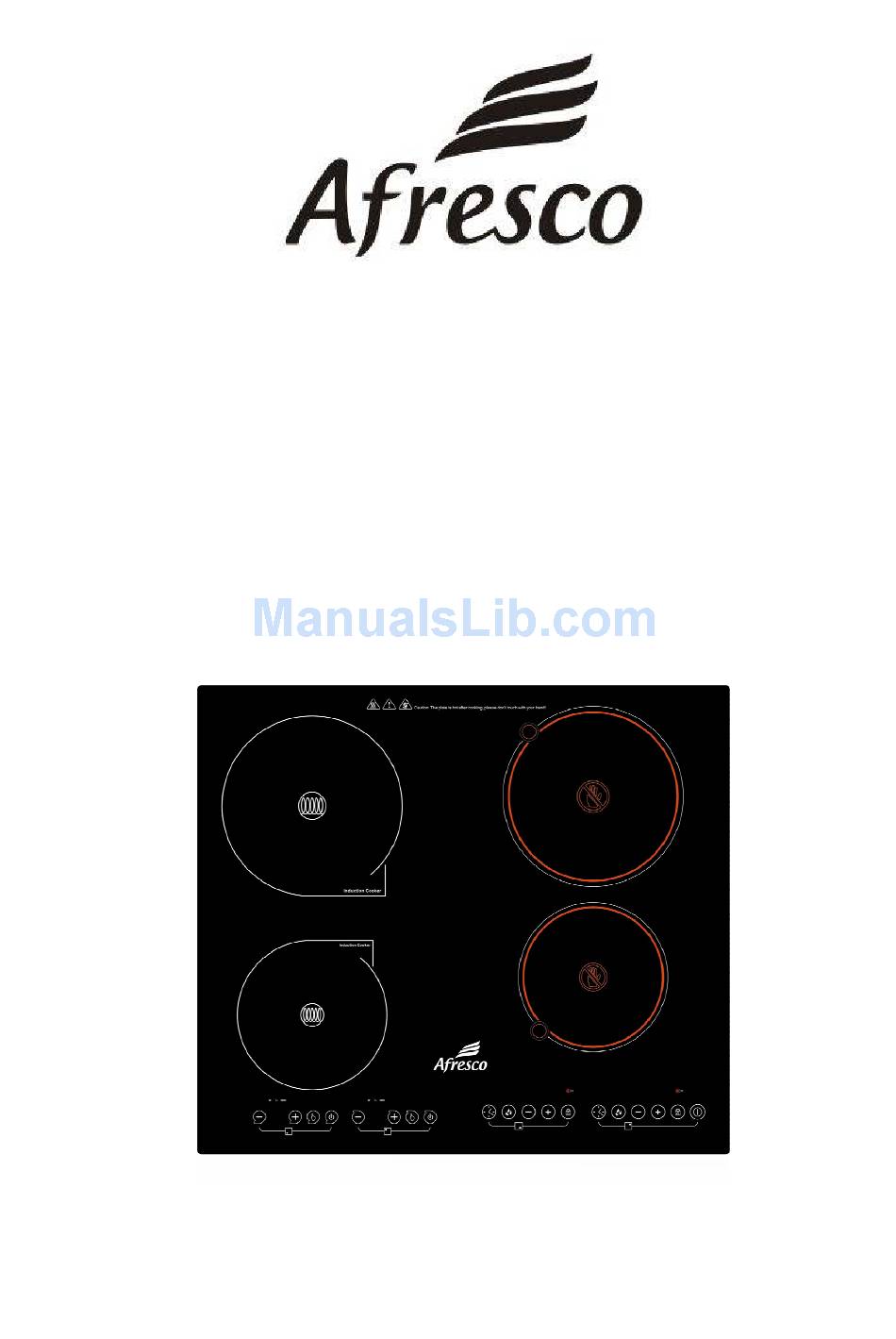

- Page 1 60 cm 4 Zone ( 2 Induction and 2 Ceramic )Touch Control cooktop User Manual...
-
Page 2: Table Of Contents
CONTENTS WARNING DESCRIPTION OF THE COOKTOP OPERATING INSTRUCTIONS CABINET INSTALLATION ELECTRICAL CONNECTION COOKING AND USAGE TIPS CLEANING AND MAINTENANCE TROUBLESHOOTING... -
Page 3: Warning
WARNING Please aware and pay attention to the following warnings in order to avoid electric shock hazard, short circuit, fire hazard and break down of the appliance. Installation and electrical connection of this cooktop must comply with SAA Wiring Rules and with local electrical and building regulations. •... -
Page 4: Description Of The Cooktop

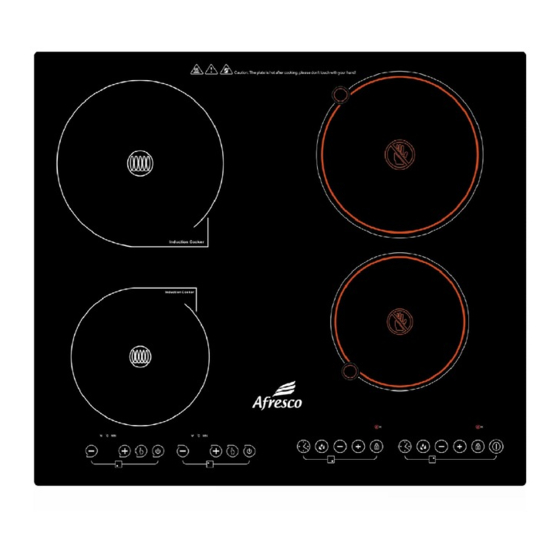

DESCRIPTION OF THE COOKTOP Induction cooktops are easy and safe to use. Your model has 2 Induction and 2 Ceramic separate heating elements. Combination of 4 separate elements of the two most popular electric heating methods gives you a choice of power, size of the cooking zone and cookware type. -
Page 5: Operating Instructions
Note: Your induction cooktop has an automatic cookware recognition sensor. If the cookware not compatible for induction cooking, too small or too light display window will show “E1” error code. Any cookware suitable for electric heating can be used on 2 Ceramic/infrared cooking zones Using The Touch Controls The touch controls on this cooktop are not only convenient - they also make available to... - Page 6 Set the timer by selecting the element and press “MENU” button. The screen will display ‘MIN” use + and – buttons until the timer display shows the required number of minutes. Maximum setting time is 99 minutes. While in operation, you will NOT notice any change in the cooking zone. Induction elements do not glow red.
- Page 7 INSTALLATION The installation and electrical power connection work must be undertaken by a qualified and licenced person in conformity with all current building and SAA electrical standards, as well as all local regulations in force. Safety Precautions Before starting the installation, consideration should be given to ensuring: •...
-
Page 8: Electrical Connection
• A minimum 50mm on sides (where 1 side wall ), min 100 x 50 mm(in a corner with 2 sides wall ) clearances of the cooktop must be provided to allow the air to flow freely Lay The Sealant and Install The Cooktop •... -
Page 9: Cleaning And Maintenance
• 8-9 Brings liquid to the boil quickly. When the liquid starts to boil, this setting is no longer needed. You can reduce the heat setting and still allow boiling to be maintained. • 6-7 Browning meats, heating oil for frying, keep liquid on the boil 3-5 Steaming, or cooking covered foods once boiling temperature is reached •... - Page 10 For Normal Cleaning • When the cooktop is cool, wipe the glass with a clean damp cloth or nylon pad. You may also use a fresh solution of dishwashing detergent and warm water. • Do not use a dirty sponge or use the same water used for washing up, as this may leave a greasy residue which will show up as streaks when the cooktop is next heated.
-
Page 11: Troubleshooting
TROUBLESHOOTING This cooktop equipped with the safety sensors to detect and display on screen of following functional disorders. Induction Cooktop Main Function Control Board (FCB) error No appropriate cookware or cookware too small on element Supply voltage too low Supply voltage too high Heat sensor open circuit or short circuit Operational software error Over current protection...
