UEC 6000 and UEC 7000 Series

Installation Guide

Unisys

Table of Contents

Summary of Contents for Unisys UEC 7000 Series

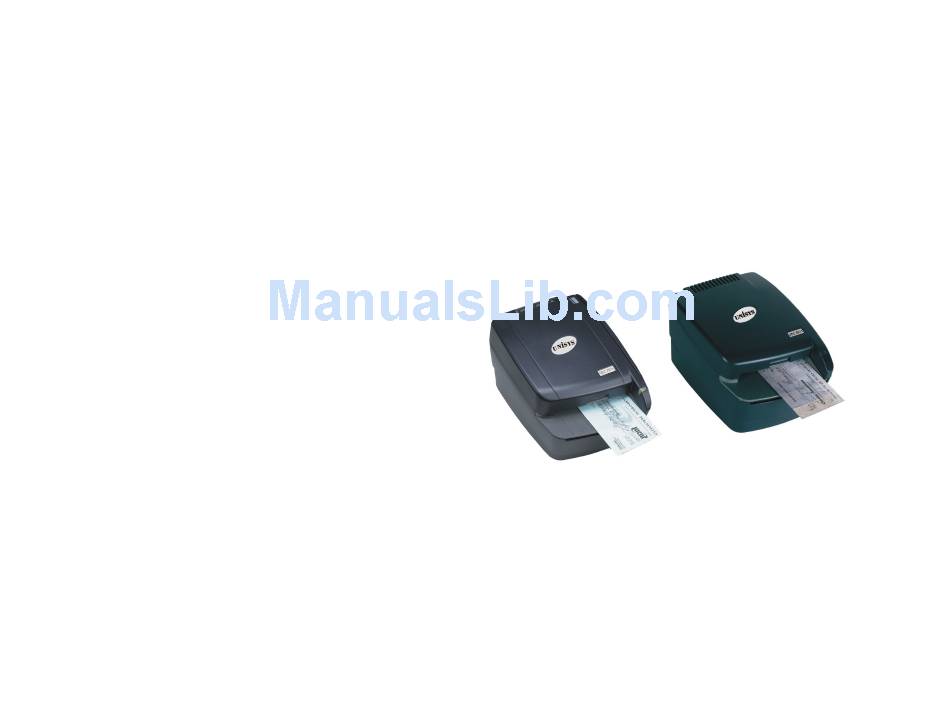

Page 1 UEC 6000 and UEC 7000 Series Installation Guide Unisys...
Page 2 UEC 6000 and UEC 7000 family of products. Unisys is a registered trademark of Unisys Corporation in the United States and other countries. The Unisys logo is a trademark of Unisys Corporation.
Page 3: Table Of Contents
Contents Compliance Statements ............2 Introduction ................3 Requirements................4 Setting Up the UEC 6000 or UEC 7000 ........5 Maintaining the UEC 6000 or UEC 7000....... 16 Troubleshooting ..............18 Specifications ................ 21 Warranty Information............. 24...
Page 4: Compliance Statements
Communications Commission (FCC) regulation. The FCC is an agency of the United States government; thus, the statement below applies to computing equipment installed in the United States of America. Unisys is taking appropriate steps to be in compliance with FCC regulations and similar regulations of other countries.
Page 5: Introduction
Introduction The Unisys Electronic Conversion series of products, including the UEC 6000 and the UEC 7000, are cost effective, feature rich, imaging solutions. Utilizing industry leading progressive MICR method and imaging technology, the UEC 6000 and the UEC 7000 are ideal for Check Electronification, Check Cashing, and Walk-in Bill Payment applications.
Page 6: Requirements
The UEC 6000 and the UEC 7000 units are for indoor use only. Keep the UEC 6000 and the UEC 7000 dry and avoid areas of high humidity. The UEC 7000 requires a higher current power supply (Unisys Direct P/N # 75-0497-901). The UEC 6000 can use its supplied power supply or the higher current power supply. See Specifications Specifications on page 21 for power supply details.
Page 7: Setting Up The Uec 6000 Or Uec 7000
Setting Up the UEC 6000 or UEC 7000 To set up the UEC 6000 or UEC 7000, follow steps A – F. NOTE: Before unpacking the box, examine it for damage received during A. Choose a Location shipping. If the scanner, or any component, appears damaged, do not Locate your scanner in a place that: use it.
Page 8 C. Inspect the Unit’s Features The UEC 6000 and the UEC 7000 are provided in two models. Model A below has an integrated Magnetic Stripe Reader (MSR). Model B below does not include an MSR. Scanner Model A will be graphically represented throughout this manual for consistency.
Page 9 Inside Components: Cover Latch Outside Cover in raised position Image Frame in raised position Image Sensor Document Sensors Document Feed Plate comes out to reveal the optional Franking Acknowledgement Printer Assembly (UEC 7000 shown)
Page 10 Connection Ports: Power: Red. Connect the power adaptor to this port. USB: Orange. Use this port to connect to a PC. AUX: Yellow. Use this port to connect optional peripheral devices such as a pass through printer COM: Green. Use this port to connect to a PC or terminal TEL: Purple.
Page 11 D. Insert the Franking Acknowledgement Printer Cartridge (Optional) The Franking Acknowledgement Printer Cartridge is an optional ink stamp, which marks the front of each check to read “Electronically Presented” or a customized message. If you have purchased this option, follow these directions to insert the printer cartridge into the unit. I.
Page 12 Ink may be harmful if swallowed. Avoid contact with eyes. Damage to the unit or the cartridge resulting from modifying the cartridge is not the responsibility of Unisys. The ink cartridge is intended for single use only. Not licensed for modifications.
Page 13 E. Connect to a Telephone Line FOR TEL: If you have purchased the UEC 6000 or the UEC 7000 with the optional modem…follow these directions to connect the telephone line: Insert the end of the telephone line into the “TEL” port on the back of the scanner. 2.
Page 14 F. Connect the Power Cord Insert the round end of the power cord into the “power” port on the back of the scanner. Align the flat side of the power connector facing up. Plug the metal-pronged end of the power cord into an electrical power outlet. When you connect to power, the LED will light up.
Page 15 Operating the UEC 6000 or the UEC 7000 Preparing Checks To reduce the possibility of errors and damage to the unit, you should: Remove all folds and creases in the check. Remove any paper clips and staples from the check MICR Line Feeding Checks The UEC 6000 or the UEC 7000 unit is ready to accept checks when...
Page 16 Understanding Status Signals The UEC 6000 or UEC 7000 comes equipped with default light and sound signals described below. Default Light Signals: The unit’s status is shown through a single, multi-state LED (light emitting diode)—the light on the top, front, right-hand side of the unit. The table below details typical status signals and their meanings: Meaning…What To Do The unit is ready to accept a check…insert a check.
Page 17 Default Sound Signals: Several conditions are also signaled by a pattern of tones in addition to the LED display: Tone Meaning One short beep The unit was successful in reading the MICR line. LED is flashing green Three short beeps The unit was not successful in reading the MICR line.
Page 18: Maintaining The Uec 6000 Or Uec 7000
Maintaining the UEC 6000 or UEC 7000 The UEC 6000 or UEC 7000 performs best when all working surfaces are clean and free of foreign material. CAUTION: • Prior to cleaning, always disconnect the power. Cleaning the Scanner • Solvents or harsh cleaners may damage or discolor the cabinetry. To clean the outside cabinetry: Use a damp cloth and mild soap.
Page 19 Cleaning the Imager Occasionally, it may be necessary to clean the image sensors and remove dust or debris from the interior of the UEC 6000 or the UEC 7000. To locate and access the document sensors, follow the instructions below. 1.
Page 20: Troubleshooting
In the course of everyday operations, you may encounter minor malfunctions in the UEC 6000 or the UEC 7000 unit. Before calling for service, review the troubleshooting steps below. The first source of information is your application provider. If this contact is not successful, call the Unisys Help Desk at 1-800-328-0440.
Page 21 Check Feeder Does Not Function Properly Ensure that you are inserting the check properly: flush to the right side of the UEC 6000 or the UEC 7000, information side facing up, with the MICR line to the inside right. If the problem persists, refer to local procedures or contact your application provider.
Page 22 Card Transactions Do Not Function Properly Test the Card Swipe Mechanism: Ensure that you are swiping the card properly: The black, magnetic stripe on the back of the card must face downward and to the left. 2. Try using another card to ensure the first card was not defective.
Page 23: Specifications
Specifications UEC 6000 and UEC 7000 Specifications Unit Size Without MSR 10.2” long x 6.2”wide x 4.8” high 22.5 cm long x 15.5 cm wide x 12 cm high With MSR 10.2” long x 6.2”wide x 5.3” high 22.5 cm long x 15.5 cm wide x 13.5 cm high Unit Weight UEC 6000: 3.1lbs.
Page 24 Weight Range: 8 lb to 100 lb (thermal paper to business card stock) E13B MICR Character Set Font Alphanumeric OCR A and B font recognition (optional) Electrical Power Requirements for Power Adapter Use a Unisys-supplied power adaptor. UEC 7000 Series Input: 100-240VAC, 50-60Hz 1.2A Power Supply Output: 24VDC 1.5A...
Page 25 Optional Modem Specifications Supports V.34bis, V.34 V.F.C, V.32bis, V.32, V.22bis, V.22A/B, V.23, V.21, Bell 212A and 103 V.42 LAPM and MNP 2-4 Error Correction Data Compression V.42bis and MNP 5 (Optional) Magnetic Stripe Reader (MSR) Specifications 3 track, bi-directional MSR Specifications...
Page 26: Warranty Information
Purchaser will pay transportation and insurance costs to ship Equipment if an off-site repair location is designated by Unisys (or its designee); Unisys (or its designee) will pay the return costs if the Equipment was defective. Labor costs of diagnosis are not included in this...
Page 27 This warranty does not cover repair of damage attributable to: (a) non Unisys products and services, alterations or out- of-specification supplies; (b) accidents, misuse, negligence or failure of Buyer/Licensee to follow instructions for proper use, care and cleaning of Equipment; (c) external factors (e.g., failure or fluctuation of electrical power or air conditioning, fire, flood);...
Page 28 Unisys Copyright© Unisys Corporation, 2006 Copyrighted material licensed by Unisys Corporation from a third party All rights reserved. No part of this document may be reproduced in any form without the written consent of Unisys Corporation. Part Number: 6873 8277-000...
