Summary of Contents for audiophony MT15A

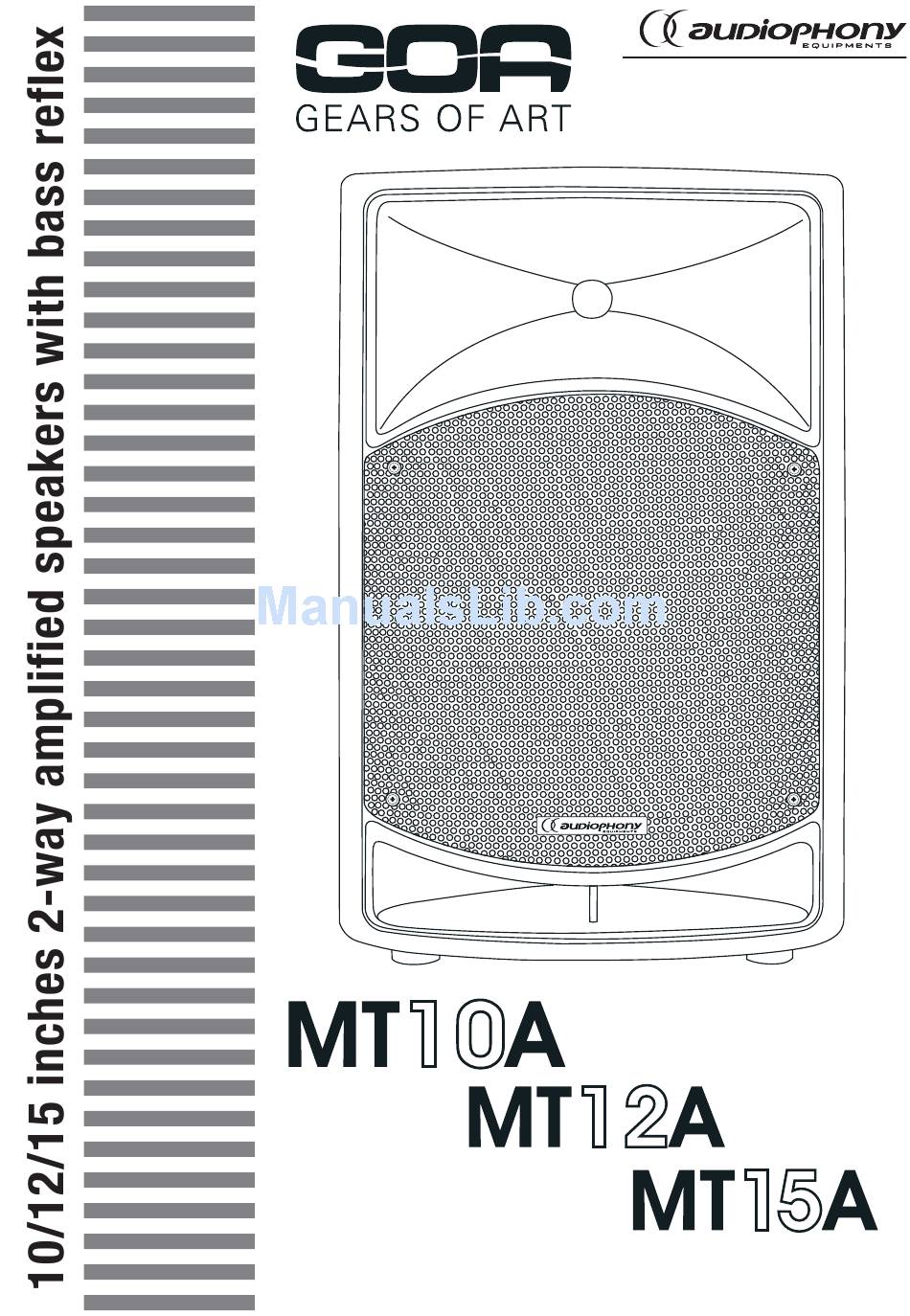

- Page 1 USER GUIDE 9958 / 9959 / 10025 - Version 2.1 / 01-2014...
-
Page 2: Safety Information
English MT10A / MT12A / MT15A - 10/12/15 inches 2-way amplified speakers with bass reflex 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. - Page 3 English MT10A / MT12A / MT15A - 10/12/15 inches 2-way amplified speakers with bass reflex Instructions and recommendations 1 - Please read carefully : We strongly recommend to read carefully and understand 12 - Cleaning precautions : the safety instructions before attempting to operate this unit.
-
Page 4: Technical Specifications And Features
The MT10A, MT12A and MT15A speakers are the ideal solutions for live performances. They deliver an astonishing power of 180W for the MT10A, 300W for the MT12A and 400W for the MT15A. This powerful output is perfectly clear, warm and deep, adapted to vocal, live or recorded sessions. -
Page 5: Presentation Of The Unit
English MT10A / MT12A / MT15A - 10/12/15 inches 2-way amplified speakers with bass reflex 4 - Presentation of the unit Power supply zone Power input Allows you to connect the speaker to an electrical outlet. Use the supplied IEC cord, and make sure the voltage... -
Page 6: Led Power
English MT10A / MT12A / MT15A - 10/12/15 inches 2-way amplified speakers with bass reflex LINE/AUX fader Equalization zone Allows you to configure the LINE or AUX input level. These two faders allow you to adjust the bass and treble Please make sure the SIG/CLIP LED is not lit for long settings from -15dB to +15dB. -
Page 7: Block Diagram
English MT10A / MT12A / MT15A - 10/12/15 inches 2-way amplified speakers with bass reflex 5.3 - AUX input Sleeve Ring The AUX input is a stereo Jack 6.35 socket. It is wired as indicated by the drawing oppositex. This input also allows you to transmit a mono signal. - Page 8 Because AUDIOPHONY® takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
