Datamax MA100-1010 User Manual

Hspa 4-port ethernet router with gps, rs232 & wi-fi
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

+


HSPA 4-Port Ethernet Router with RS232, Wi-Fi & GPS | MA100-1010

CHOOSE WELL...
CHOOSE WISELY...
CHOOSE MAXON...
Datamax+ (MA100-1010)
HSPA 4-Port Ethernet Router with GPS, RS232 & Wi-Fi

User Manual

This document is the sole and exclusive property of Maxon Australia.
Not to be distributed or divulged without prior written agreement.
au
www.maxon.com.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MA100-1010 and is the answer not in the manual?

Questions and answers

Summary of Contents for Datamax MA100-1010

  • Page 1: User Manual

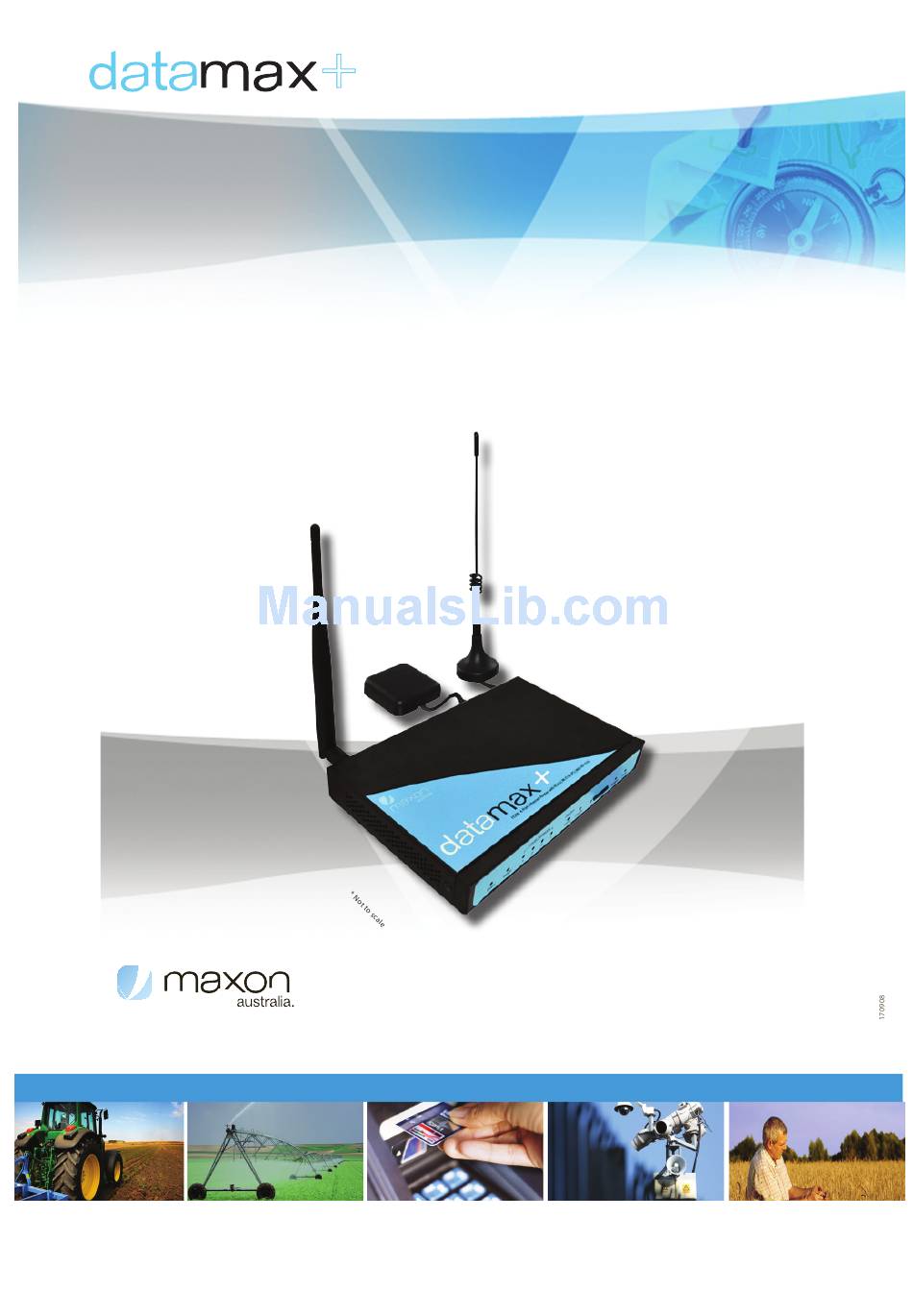

          HSPA 4-Port Ethernet Router with RS232, Wi-Fi & GPS | MA100-1010   CHOOSE WELL... CHOOSE WISELY... CHOOSE MAXON... Datamax+ (MA100-1010) HSPA 4-Port Ethernet Router with GPS, RS232 & Wi-Fi User Manual This document is the sole and exclusive property of Maxon Australia.
