Summary of Contents for Motec Systems GPS- G1(T)

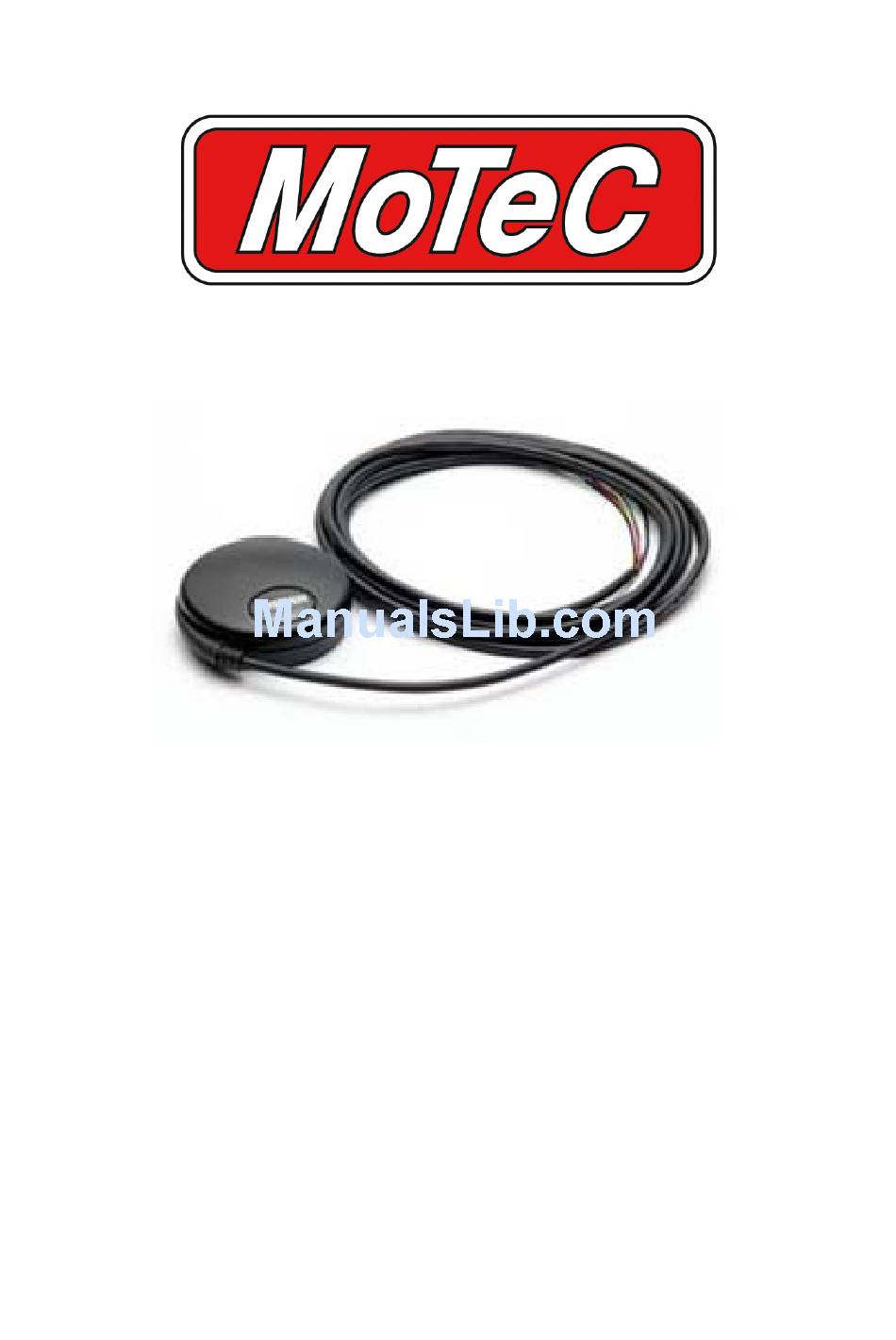

- Page 1 GPS-G1 GPS- G1(T) User Manual...
-
Page 2: Table Of Contents
MoTeC GPS- G1 User Manual Contents Using the GPS ................1 Description .................... 1 Mounting ....................1 Electrical Connections ................2 GPS Configuration ................2 Data Logger Configuration ..............3 GPS Operation ..................3 ... -
Page 3: Using The Gps
MoTeC Using the GPS Using the GPS Description The GPS-G1 is a 5 Hz GPS that is suitable for the high dynamics of motor sport applications and is compatible with Motec ADL2, SDL & ACL logging devices. The standard GPS-G1 unit operates at a baud rate of 19200, while the GPS- G1(T) version operates at a baud rate of 38400. -
Page 4: Electrical Connections
Using the GPS Electrical Connections The GPS unit sends data to the logging device via an RS232 serial connection. The wiring between the GPS connector and the logging device should be as short as possible, preferably less than 1 m (3 ft) The following table shows how to wire the GPS unit to a number of MoTeC logging devices. -
Page 5: Data Logger Configuration
MoTeC Using the GPS Data Logger Configuration Software Version The Data Logger must be running the following software version (or higher) Version 1.3 or higher ADL2 Version 4.4 or higher Version 1.1 or higher Setup Requirements • In the communications setup Select RS232 in the list then select GPS - Standard RMC GGA template Change the baud rate to 19200 for GPS-G1... -
Page 6: Data Analysis
Using the GPS Data Analysis GPS data analysis requires i2 data analysis software version 1.02 or higher. All GPS channels (speed, heading, altitude etc) can be used in the usual way including plotting on a graph etc. The GPS position data (latitude and longitude) can also be used for the following: •... -
Page 7: Specifications
MoTeC Specifications Specifications Electrical Power Supply Voltage 4.0 to 5.5 V Power Supply Current 65 mA Connections Mating Connector Deutsch DTM06-4S Name Description Bat - Connect to Battery Negative on the logging device Connect to RX pin on logging device Don't connect (This pin is only used for programming) Connect to 5 V sensor supply on the logging device Data...
