Summary of Contents for KIP KIPFold 2000

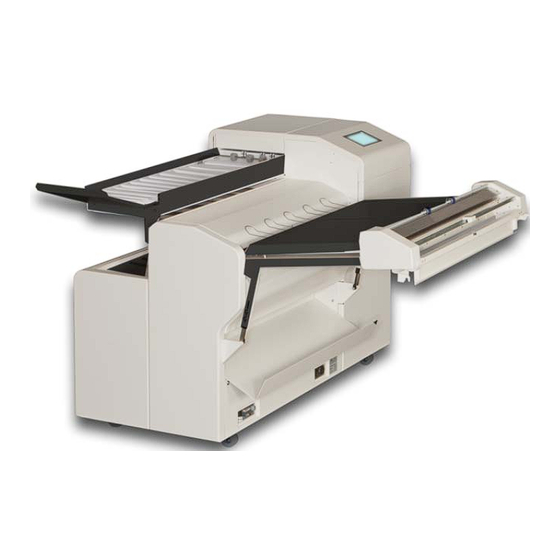

  • Page 1 KIP Certified AutoCAD Driver KIPFold 2000 User Guide...

  • Page 2: Table Of Contents

    Feeding prints ................................. 11 Manual cross fold ................................14 Software Folding Setup using KIP PrintNET ........................ 15 Using the KIPFold 2000 with KIP Applications ......................17 KIP Print and Folding ..............................18 KIP PrintNet and Folding ..............................19 KIP Windows Driver and Folding ........................... 20 KIP Autocad and Folding ...............................

  • Page 3: Safety

    KIPFold 2000 User Guide Safety Read these safety instructions completely before operating the folder and keep this manual for future reference close to the folder. Carefully observe all warnings, precautions and instructions on the folder or the ones described in the operating instructions.
  • Page 4 KIPFold 2000 User Guide Main connection cable Do not use different connector cables, other than supplied with the folder. When replacement of the power supply cable is required because of damage or defect, contact your CE for proper replacement of this power supply cable.

  • Page 5: Power & Switch On

    KIPFold 2000 User Guide Power & Switch on Please use only the power cable supplied with the folder. 90 - 240 VAC 50/60Hz Do not use multi plug extension cords! These cords will not stand the power consumption of plotter and folder.
  • Page 6 KIPFold 2000 User Guide COM port: connect the serial cable to the IPS serial port to permit online communications • Ethernet port: for all service access • Service: not used • 5-Bit Port: not used • USB: for future use •...
  • Page 7 Please refer to the Trouble Shooting for more information. When Connected to the KIP Printer, if this image is displayed on the Folder Screen the KIP Printer is controlling the folder in an online condition. In order...
  • Page 8 Click on meter counter to reset it This icon notes “Manual” mode. The KIP printers control the online / offline condition of the folder. Opens a list of available folding programs. No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.

  • Page 9: Media And Formats

    KIPFold 2000 User Guide Media and formats Format limits All documents with length from 210 mm (8.5") up to 6.000 mm (19,6 ft) (80 gr. Fan Folder Paper) or unlimited length (option) and width up to max. 930 mm (36").

  • Page 10: Select And Customize Programs

    KIPFold 2000 User Guide Select and customize programs Select a folding program for offline function by pressing on the name of the fold currently selected. No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.

  • Page 11: Customize A Folding Program (Editor)

    KIPFold 2000 User Guide Customize a folding program (Editor) The editor is also available in the PC remote service. Free Style Calculator No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.

  • Page 12: Feeding Prints

    KIPFold 2000 User Guide Feeding prints The title block (legend) has to be on the leading edge of the document entering the folder. The title block position has to be set in the printing software you are using. (rotation) With the optional Rotation Unit, A2 or C-size formats can be printed landscape on an A1 or D-size roll.
  • Page 13 KIPFold 2000 User Guide Insert the sheet "face down" (title block leading) No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.  2012 KIP. - 12 -...
  • Page 14 KIPFold 2000 User Guide Align in center. The insertion rail on the table can be slid into an optimized position for the document you are feeding. Please try feeding the paper as straight as possible. No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.

  • Page 15: Manual Cross Fold

    KIPFold 2000 User Guide Manual cross fold It is possible, besides the automatic process, to use the cross folder manually. Put the fan folded package onto the roll carrier and guide it straight into the cross folder. The folding will start automatically as soon as the copy enters the cross folder.

  • Page 16: Software Folding Setup Using Kip Printnet

    KIPFold 2000 User Guide Software Folding Setup using KIP PrintNET To use the KIPFold 2000 from within KIP PrintNet first the folder configuration settings have to be set up. Folder Configuration Tab Please note to perform the following steps Administrator login is necessary.
  • Page 17 Note: This tab is currently not being used. Folder Delays Tab 1. Values should remain at zero (0) unless connected to a KIP 9900 Printer. If connected to a KIP 9900 Printer the suggested value is “5”. 2. Select the Submit button to set the changes made.

  • Page 18: Using The Kipfold 2000 With Kip Applications

    KIPFold 2000 User Guide Using the KIPFold 2000 with KIP Applications Once the KIPFold 2000 is installed and functioning, KIP applications can be used to fold various packet sizes that were set up during configuration of the folder. Available KIP Applications: KIP Print ...

  • Page 19: Kip Print And Folding

    KIPFold 2000 User Guide KIP Print and Folding When using the KIP Print software there are two methods for printing using the KIPFold 2000. Method 1 In this method the fold packet to be used will be selected first by clicking the Fold button on the main screen ribbon bar.

  • Page 20: Kip Printnet And Folding

    KIPFold 2000 User Guide KIP PrintNet and Folding When using the KIP PrintNet software there are two methods for printing using the KIPFold 2000. Method 1 In this method the fold packet to be used will be selected first by clicking the Job Defaults button on the main screen ribbon bar.

  • Page 21: Kip Windows Driver And Folding

    KIPFold 2000 User Guide KIP Windows Driver and Folding When using the KIP Windows Driver to print and fold files follow these steps: 1. Select the file to be printed in the appropriate application. For this example Adobe is being used.

  • Page 22: Kip Autocad And Folding

    KIPFold 2000 User Guide KIP Autocad and Folding When using the KIP AutoCAD Driver to print and fold files follow these steps: 1. From Within AutoCAD go to File and then Print. 2. Double click the installed KIP AutoCAD driver.
  • Page 23 KIPFold 2000 User Guide 7. Once the custom properties window opens under Media Options select the Folder Button. 8. Selecting On will use the Folder Presets determined by the Presets.ini file in the IPS. 9. Select any of the available presets to apply that setting to the files being printed.

  • Page 24: Kip Touchscreen (Kip C7800) And Folding

    KIPFold 2000 User Guide KIP Touchscreen (KIP C7800) and Folding When connected to a KIP C7800 Color printer and wanting to print and fold files follow these steps: 1. Select the Print Button and browse to the location of the file (s) to be printed.
  • Page 25 KIPFold 2000 User Guide When connected to a KIP C7800 Color printer and wanting to fold files using the Offline function follow these steps: 1. When the user first goes up to the KIP C7800 the Folder will be online.

  • Page 26: Overview

    KIPFold 2000 User Guide Overview Bridge Sensor 1 - last sheet for copies 420-530mm • Sensor 2 - last sheet for copies 540-710mm • Sensor 3 - last sheet for copies > 720mm • No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.
  • Page 27 KIPFold 2000 User Guide Sensor 4 - entry sensor bridge • Sensor 5 - entry interface • Sensor 6 - flap sensor (color printers only) • Fan Folder Sensor 0a - 1st sheet • Sensor 0b - upper exit sensor •...
  • Page 28 KIPFold 2000 User Guide Cross Folder No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.  2012 KIP. - 27 -...
  • Page 29 KIPFold 2000 User Guide Sensor 10 - entry sensor cross folder • Sensor 11 - first sheet (lower start) • Sensor 12 - first sheet (upper start) • Sensor 14 - exit sensor cross folder • Sensor 15 - home position knife 1 •...

  • Page 30: Dimensions - Basic Unit

    KIPFold 2000 User Guide Dimensions – basic unit No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.  2012 KIP. - 29 -...

  • Page 31: Specifications

    KIPFold 2000 User Guide Specifications Document Length 1.3 ft – 19.6 ft, optional unlimited ; cross fold max. 8.2 ft Document Width from 11” up to 36” Paper Quality from 16 lb – 28 lb Panel Width 7-12”, adjustable in 0.1” increments;...
  • Page 32 KIPFold 2000 User Guide Height of Bridge From 2,0 ft to 4,2 ft With box: Weight 705 lb Width 3.6 ft Height 4.4 ft Length 6.3 ft No part of this publication may be copied, reproduced or distributed in any form without express written permission from KIP.
  • Page 33 KIPFold 2000 User Guide Error Code List part code issue Fan Folder errors LB problem at start up 22:01 LB 1 cut 22:02 LB 2 cut 22:03 LB 3 cut 22:04 LB 4 cut 22:05 LB 5 cut Sensor 22:06...
  • Page 34 KIPFold 2000 User Guide 26:08 No paper exit jam at LB 8 Cross Folder errors LB problem at start up 82:01 LB 10 cut 82:02 LB 11 cut Sensor 82:03 LB 12 cut 84:01 Paper jammed between FF and LB 10...
