Installation and Operation Manual
PowerMax
Wireless Amplifier/Repeater System
Outside Antenna - 288-PW
Read Instructions before installing!
If you do not understand instructions,
D I G I T A L
A N T E N N A
50 dB Gain Dual Band
Repeater - DA4000MR
Inside
Antenna
Cable
- 240-15NM
1"- 14 Mount
- DM194 & F114
L-Bracket - DH288
seek professional installation.
Digital Antenna, Inc.
www.digitalantenna.com
4KMR-30M
TM
Inside Antenna - 426-PW
Power
Supply
- DP515
Outside
Antenna Cable
- 240-30NM
5325 NW 108th Avenue
Sunrise, FL 33351
t 954.747.7022
f 954.747.7088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4KMR-30M and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerMax 4KMR-30M

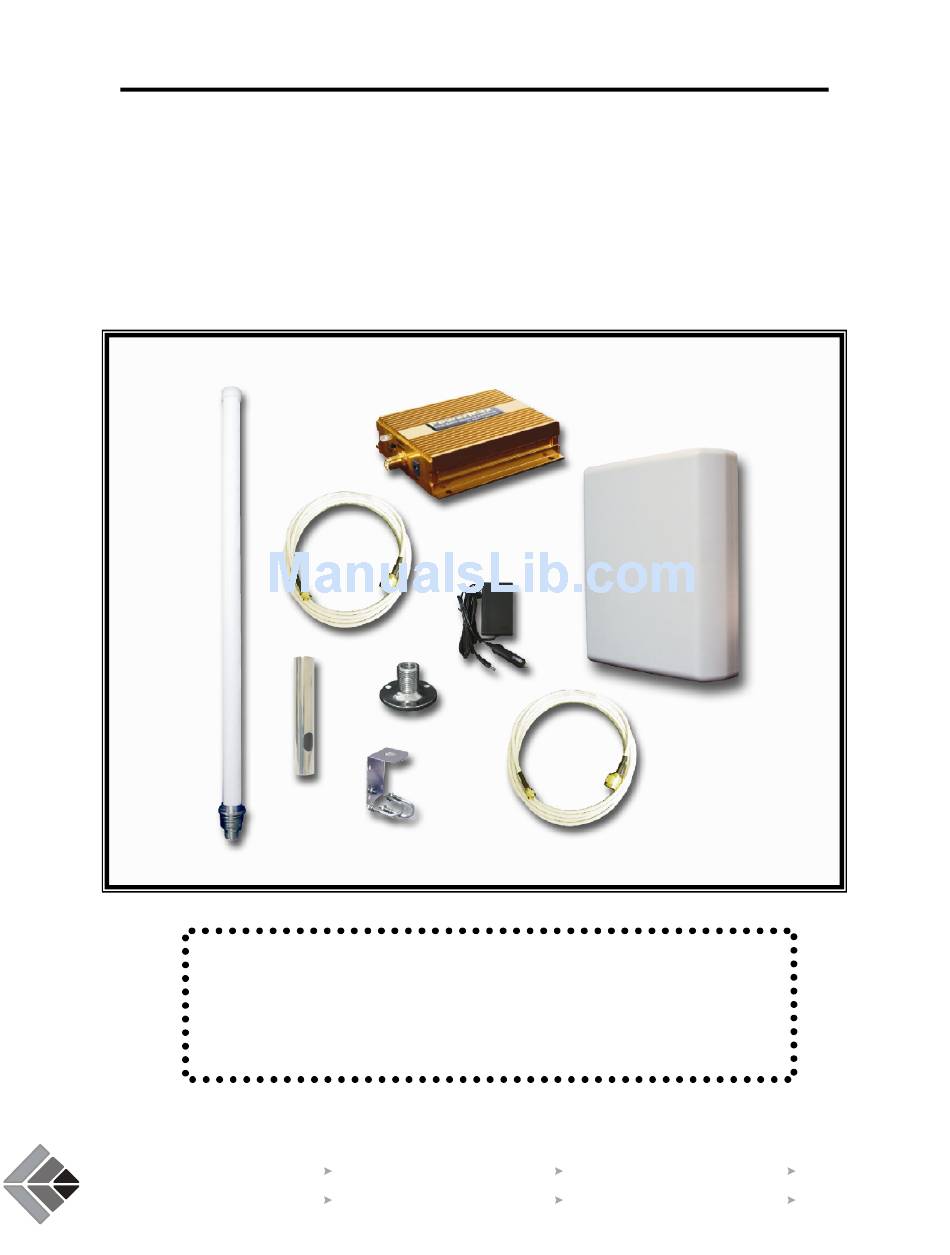

  • Page 1 Installation and Operation Manual PowerMax 4KMR-30M 50 dB Gain Dual Band Wireless Amplifier/Repeater System Repeater - DA4000MR Inside Inside Antenna - 426-PW Antenna Cable - 240-15NM Power Supply - DP515 1”- 14 Mount - DM194 & F114 Outside Antenna Cable...
  • Page 2: Table Of Contents

    INSTALLATION AND OPERATION MANUAL 4KMR-30M Model 1. Package Contents…………………………………………………………………….. 3 2. Important Safety Information………………………………………………………… 3 a. Limited Warranty………………………………………………………. 4 b. Limitation on Liability………………………………………………….. 4 c. FCC Regulations………………………………………………………… 4 3. Pre-installation Guidelines……………………………………………………………. 5 a. Installation Tools…………………………………………………...…… 5 b. Installation Procedure………………………………………………..…. 5 c.
  • Page 3: Package Contents

    1. Package Contents Part Number Description DA4000MR 40dB gain Dual Band Wireless Cellular Amplifier/Repeater 288-PW 9dB gain outside omni-directional dual band cell antenna 426-PW 9dB gain inside directional dual band cell antenna & wall mount 240-30NM 30' (DA340) cable w/ N male & mini-UHF male connectors 240-15NM 15' (DA240) cable w/ N male &...
  • Page 4: Limited Warranty

    a. LIMITED WARRANTY Digital Antenna, Inc. warrants marine antennas for five (5) years and cellular antennas and amplifiers for one (1) year that its Products sold hereunder will at the time of shipment be free from defects in material and workmanship and will conform to Digital Antenna’s applicable specifications or, if appropriate, to Customer’s specifications previously accepted by Digital Antenna in writing.
  • Page 5: Pre-Installation Guidelines

    Antenna 2006 Digital Antenna Inc. The 4KMR-30M system contains a 9dB gain directional dual band indoor antenna, amplifier/repeater unit and 9dB gain omni-directional outdoor antenna. The outdoor antenna must be installed and operate in a vertical position. The indoor antenna must be mounted with the back side of the antenna (metal side) facing the outside antenna.
  • Page 6: Electrical Power

    Pre-installation Considerations Establish a site installation plan based upon desired interior coverage area The inside and outside antennas must have a separation distance of 12 feet or greater and must be separated by an exterior wall. The outside antenna must be in a vertical position and the inside antenna (plastic side) must face away from the outside antenna.
  • Page 7: Amplifier/Repeater Status

    d. AMPLIFIER/REPEATER STATUS The DA4000MR unit is designed with a status/fault indicator to indicate proper unit functionality. The chart below details the different LED color indicators. Status GREEN solid light Normal Status YELLOW/ORANGE Degree of cellular transmission activity or may stay flickering light green with cell phones operating on 1900 MHz.
  • Page 8: Interior Coverage Problems

    Re-locate cable to avoid kinks or coils. The serial number on the DA4000MR unit must be available. f. COAXIAL CABLE RECOMMENDATIONS The DA4000MR system includes 30’ of Digital Antenna’s PowerMax ULTRA low loss cable and connectors for easy installation. If the application requires more than the supplied cable, PowerMax DA340 ULTRA low loss 25’...
  • Page 9: Marine And Rv Installation

    4. Marine or RV Installation Review pre-installation considerations and determine site installation plan. 1. Install supplied outside antenna (288-PW) in a vertical position with the supplied L-bracket (RV back ladder) or 1”-14 mount (boat radar arch). Mount the outside antenna clear of metal objects and obstructions and as high as possible. (Follow minimum 12’...
  • Page 10: Electrical Specifications

    5. Specifications Amplifier/Repeater Unit PN DA4000MR Frequency: Uplink: 824-849 MHz and 1850-1910 MHz Downlink: 869-895 MHz and 1930-1990 MHz Modulations: ALL Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz) Dynamic Variable Gain: 44dB Max Impedance: 50 ohms Noise Figure: < 4dB Power Consumption: Standby 5 vdc/0.5A, Uplink 5 vdc/1.5A Internal Fuse: 3A FCC approved, FCC ID: PZODA4000SBR...
  • Page 11 Cable PN 240-30NM Length: 30’ Impedance: 50 Ohm RF connectors: Type N male and mini-UHF male factory attached Attenuation at 800 MHz: 5.7dB per 100’ Attenuation at 1900 MHz: 8.5dB per 100’ Cable PN 240-15NM Length: 15’ Impedance: 50 Ohm RF connectors: Type N male and mini-UHF male factory attached Attenuation at 800 MHz: 7.1dB per 100’...
  • Page 12: Antenna & Accessory Options

    433-CM Multi-Band 9 dB gain Directional Panel Antenna 426-PW Cables 25’ Extension Cable (for use with 50’ cable 340-50NM only) 340-25NE 50’ PowerMax DA340 Cable Assembly (for outside antenna) 340-50NM 75’ PowerMax DA340 Cable Assembly (for outside antenna) 340-75NM 100’ PowerMax...
  • Page 13: Technical Support

    7. Technical Support For answers to most questions access Digital Antenna’s knowledgebase and Troubleshooter section0 on Digital Antenna’s website www.DigitalAntenna.com. When contacting Digital antenna regarding your repeater, locate the product’s serial number on the DA4000MR unit before calling. The serial number is located on the bottom of the DA4000MR unit.
