Summary of Contents for Boly Media SG2060 Series
- Page 1 Infrared Digital Scouting Camera User Manual SG2060 Series...
-
Page 2: Table Of Contents
Content 1 Instruction .............. 1 1.1 Camera Body Interface ........1 1.2 General Description ........2 1.3 Application ............3 1.4 Shooting Information Display ......3 1.5 Cautions ............4 2 Quick Start Guide ..........6 2.1 Power Supply ..........6 2.2 Insert the SD Card .......... -
Page 3: Instruction
SG2060 series 1 Instruction 1 Instruction 1.1 Camera Body Interface SG2060-X SG2060-K SG2060-U Page 1... -
Page 4: General Description

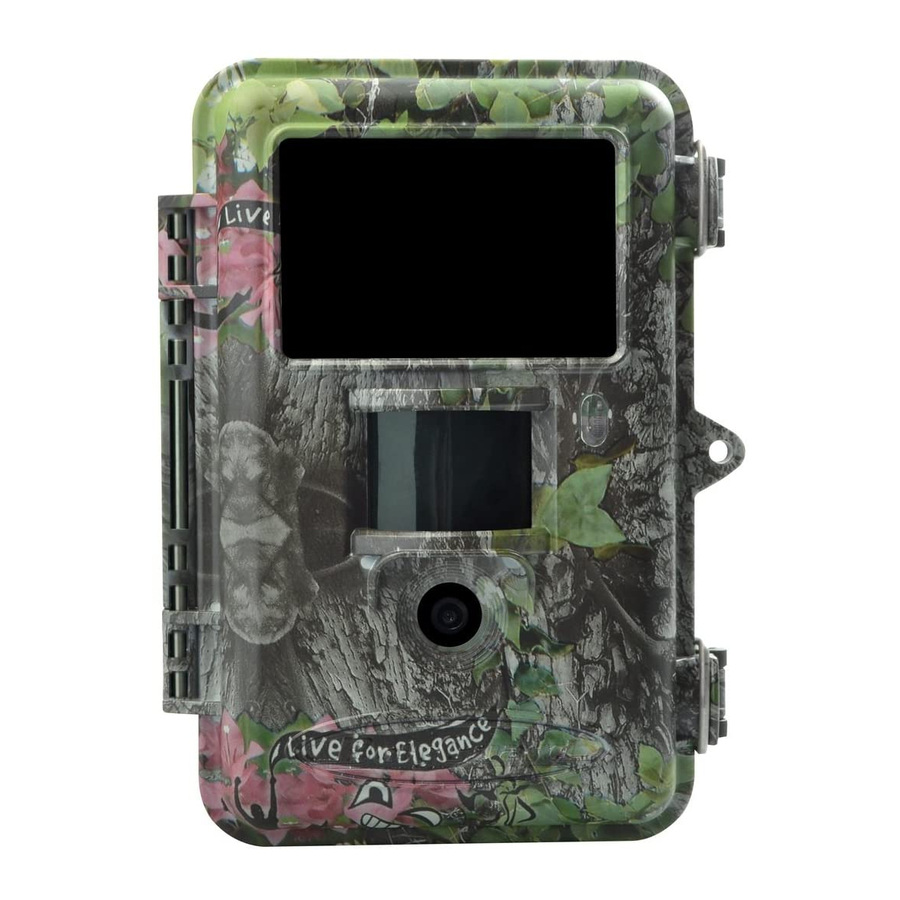

SG2060 series 1 Instruction 1.2 General Description This camera is a surveillance device working automatically. It can be triggered by any movement of human or animal in a certain region of interested monitored by a highly sensitive Passive Infra-Red (PIR) motion sensor，and then take high quality pictures (up to 20 mega pixels) or video clips. -
Page 5: Application
SG2060 series 1 Instruction light after filter as a result of which it can reduce time of exposure. This own function leads to no motion blur in the video clips. The camera will clearly take black and white pictures or video clips without disturbing animals at night. -
Page 6: Cautions
SG2060 series 1 Instruction Key notes: “MENU” : to enter the program menu in preview mode; “▲” “▼” “ ▶ ” “◀”: for parameter settings ; “OK”: to save parameter settings and play videos; “ ”: to exchange between playback mode and preview mode;... - Page 7 SG2060 series 1 Instruction Please install batteries according to shown polarity. ★Please insert the SD card when the power switch is in OFF position before testing the camera. The camera has no internal memory for saving images or videos. If no SD card is inserted, the camera will shut down automatically after an indication beep.
-
Page 8: Quick Start Guide
SG2060 series 2 Quick Start Guide 2 Quick Start Guide 2.1 Power Supply To supply power for the camera, four or eight size AA batteries are needed. 1. High-density and high-performance alkaline batteries (Recommended) 2. Rechargeable alkaline batteries 3. Rechargeable NiMH batteries When in a low-battery state, the camera will be automatically shut down. -
Page 9: Insert The Sd Card
SG2060 series 2 Quick Start Guide 2.2 Insert the SD Card Insert a new SD card into the card slot. Please note that the SD card is on the “write” (not locked) position otherwise the camera will not function correctly. -
Page 10: View Images Or Videos
SG2060 series 2 Quick Start Guide 2.3.4 View Images or Videos Press to enter playback mode viewing images or videos, the latest image or video icon will be shown on the LCD screen, click to play a video .Press “▲” or “▼” to view the previous or next one. -
Page 11: Item Settings
SG2060 series 3 Item Settings 3 Item Settings 3.1 Camera Menu To view the camera settings menu, press MENU in SETUP mode. Use “▲” or “▼” key to select the sub-menu, use “◄” or “ ” key to select the different options. - Page 12 SG2060 series 3 Item Settings device by setting this parameter Set Clock when necessary, e.g., after every battery change. The date format is year/month/day, the time format is hour: minute: second. The valid value for year is between 2016 and 2050.
- Page 13 SG2060 series 3 Item Settings and to use lower sensitivity for outdoor or environment with lots of interference like hot wind, smoke, near window etc. Furthermore, the sensitivity of the PIR is strongly related to the temperature. Higher temperature leads lower sensitivity.
- Page 14 SG2060 series 3 Item Settings the camera works all along. Timer switch On means the camera works only during the time according to the preset settings. It means this camera can play audio file at a preset time clock of a day.
-
Page 15: Default Setting
SG2060 series 3 Item Settings manually. But in SETUP mode, SD can’t recycle storage. All images and videos in the SD card will be deleted, so make sure that Format SD have made backup important data. Restore all customer settings to Default Set default values. -
Page 16: Power Off
SG2060 series 3 Item Settings Work 00:00-23:59 Hour Set Time and Game Call Off Replay times Finnish German Swedish Danish Language English Norwegian Czech Russian Italian Beep Sound Distance Near Camera Posit Position Recycle Storage Format Enter Yes, No Default... - Page 17 SG2060 series 3 Item Settings will not be used for a long time. Page 15...
-
Page 18: Mounting The Camera
SG2060 series 4 Mounting the camera 4 Mounting the Camera When use the camera in outdoor environment, such as hunting or monitoring the living habits of wild animals, you need to mount the device on a certain place properly. It is recommended to mount the... -
Page 19: Pir Detection Zone
SG2060 series 5 PIR Detection Zone 5 PIR Detection Zone This camera has a new design of PIR and the new PIR is patented. The new patented PIR’s detection range can reach to 100ft in good environments. Following picture shows the compared detection zone between normal PIR and the new patented PIR. -
Page 20: Technical Specifications
SG2060 series 6 Technical Specifications 6 Technical Specifications 14MP Color CMOS, Image Sensor 8MP and 20MP Interpolation F/NO=2.4 Lens FOV(Field of View)=57° PIR detection range 100ft Display Screen 2.0” LCD Memory Card From 8 MB to 32 GB 20MP=5184×3888 Picture Resolution 14MP = 4320 ×3240... -
Page 21: Parts List
SG2060 series 7 Parts List 7 Parts List Part Name Quantity Digital Camera USB Cable Belt User Manual Warranty Card Version 1.0 Page 19...
