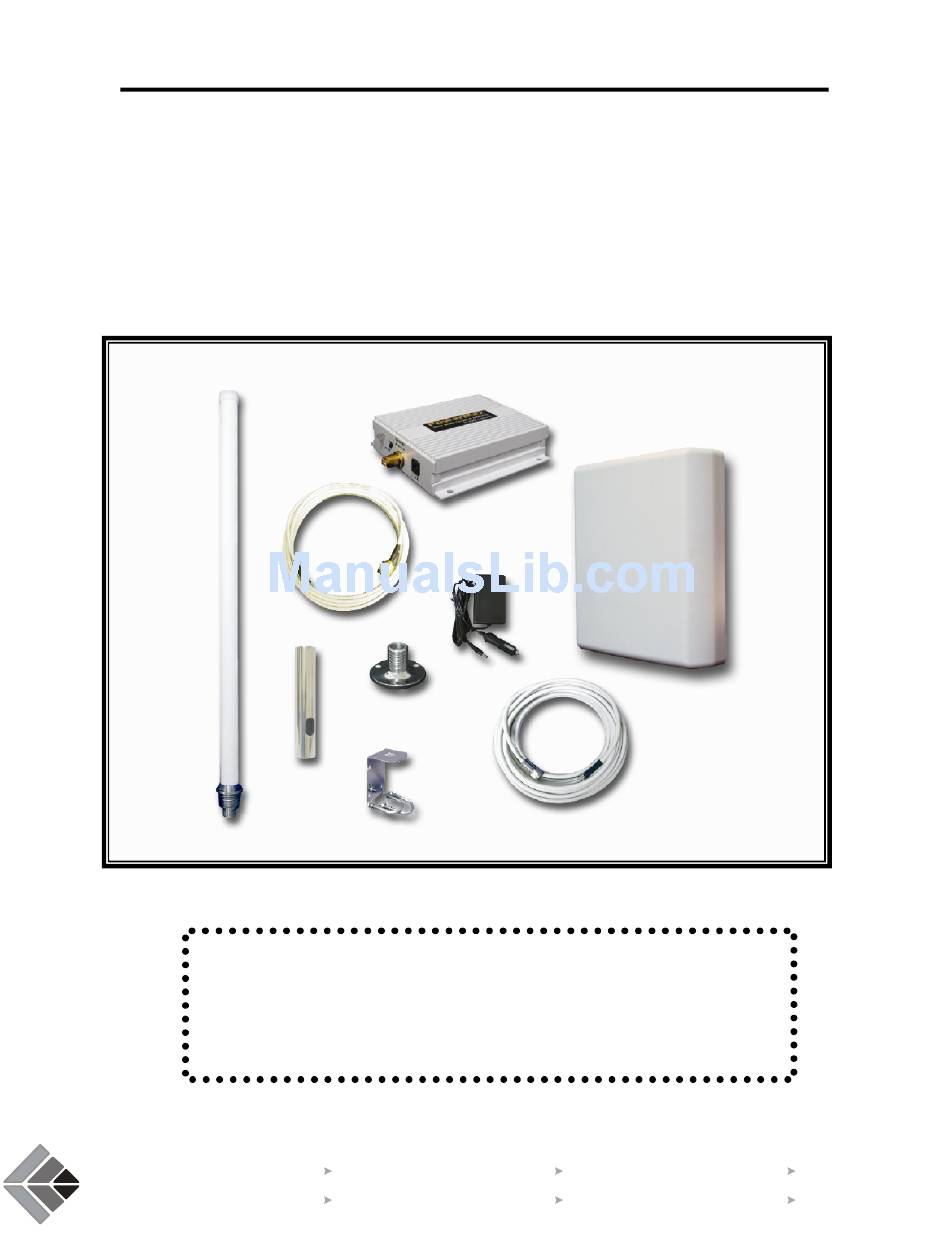

Installation and Operation Manual
PowerMax
Wireless Amplifier/Repeater System
Outside Antenna - 288-PW
Read Instructions before installing!
If you do not understand instructions,
D I G I T A L
A N T E N N A
TM
70 dB Gain Dual Band
Repeater - DA4000SBR
Inside
Antenna
Cable
- 240-15NM
Power
Supply
- DP515
1"- 14 Mount
- DM194 & F114
L-Bracket - DH288
seek professional installation.
Digital Antenna, Inc.
www.digitalantenna.com
KSBR-50M
4
Inside Antenna - 426-PW
Outside
Antenna Cable
- 340-50NM
5325 NW 108th Avenue
Sunrise, FL 33351
t 954.747.7022
f 954.747.7088

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerMax 4KSBR-50M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digital Antenna PowerMax 4KSBR-50M

  • Page 1 L-Bracket - DH288 Read Instructions before installing! If you do not understand instructions, seek professional installation. D I G I T A L Digital Antenna, Inc. 5325 NW 108th Avenue t 954.747.7022 A N T E N N A www.digitalantenna.com Sunrise, FL 33351 f 954.747.7088...

  • Page 2: Table Of Contents

    INSTALLATION AND OPERATION MANUAL 4KSBR-50M Model 1. Package Contents…………………………………………………………………….. 3 2. Important Safety Information………………………………………………………… 3 a. Limited Warranty………………………………………………………. 4 b. Limitation on Liability………………………………………………….. 4 c. FCC Regulations………………………………………………………… 4 3. Pre-installation Guidelines……………………………………………………………. 5 a. Installation Tools…………………………………………………...…… 5 b. Installation Procedure………………………………………………..…. 5 c.

  • Page 3: Package Contents

    WARNING! Only Digital Antenna authorized products may be used with the DA4000SBR system. Using unauthorized equipment with the DA4000SBR system will harm the system, voids the warranty and can be detected in the event of a failure.

  • Page 4: Limited Warranty

    Digital Antenna in writing. If products sold hereunder are not as warranted, Digital Antenna shall, at its option, either repair or replace the product, provided proof of purchase and written notice of nonconformance are received by Digital Antenna within five (5) or one (1) years of date of purchase and provided said nonconforming Products are, with Digital Antenna’s written...

  • Page 5: Pre-Installation Guidelines

    Directional Booster Antenna 2006 Digital Antenna Inc. The 4KSBR-50M system contains a 9dB gain directional dual band indoor antenna, amplifier/repeater unit and 9dB gain omni-directional outdoor antenna. The outdoor antenna must be installed and operate in a vertical position. The indoor antenna must be mounted with the back side of the antenna (metal side) facing the outside antenna.

  • Page 6: Electrical Power

    Facing down Facing diagonally Boosted Cell Signal 2006 Digital Antenna Inc. Identify the outside antenna location in the highest, secure, unobstructed area. On an RV the antenna can be attached to the back ladder. On a boat or RV, the outside antenna’s white fiberglass portion should be mounted clear of metal...

  • Page 7: Amplifier/Repeater Status

    d. AMPLIFIER/REPEATER STATUS The DA4000SBR unit is designed with a status/fault indicator to indicate proper unit functionality. The chart below details the different LED color indicators. Status GREEN solid light Normal Status YELLOW/ORANGE Degree of cellular transmission activity or may stay flickering light green with cell phones operating on 1900 MHz.

  • Page 8: Interior Coverage Problems

    PowerMax DA340 ULTRA low loss 25’ extension cable and 75’ or 100’ replacement cables are available. Only Digital Antenna authorized cable can be used to complete the installation. Unauthorized cable usage can be detected and voids the warranty. LMR400 cable by Times Microwave may be used for cable runs less than 150’, LMR600 may be used for runs less than 200’.

  • Page 9: Marine And Rv Installation

    Vertical separation is better than horizontal. A repeater system can not be used in open air such as an open console boat. WARNING! - Only Digital Antenna authorized products may be used with the DA4000SBR system. Using unauthorized equipment will harm the DA4000SBR system, can be detected and voids the warranty.

  • Page 10: Electrical Specifications

    5. Specifications Amplifier/Repeater Unit PN DA4000SBR Frequency: Uplink: 824-849 MHz and 1850-1910 MHz Downlink: 869-895 MHz and 1930-1990 MHz Modulations: ALL Max Output Power: 3W (824-849 MHz), 2W (1850-1910 MHz) Dynamic Variable Gain: 64dB Max Impedance: 50 ohms Noise Figure: < 4dB Power Consumption: Standby 5 vdc/0.5A, Uplink 5 vdc/1.5A Internal Fuse: 3A FCC approved, FCC ID: PZODA4000SBR...
  • Page 11 Cable PN 340-50NM Length: 50’ Impedance: 50 Ohm RF connectors: Type N male and mini-UHF male factory attached Attenuation at 800 MHz: 5.7dB per 100’ Attenuation at 1900 MHz: 8.5dB per 100’ Cable PN 240-15NM Length: 15’ Impedance: 50 Ohm RF connectors: Type N male and mini-UHF male factory attached Attenuation at 800 MHz: 7.1dB per 100’...

  • Page 12: Antenna & Accessory Options

    Stainless Steel Ratchet Mount DM223 Digital Antenna manufactures cellular amplifiers, repeaters and antennas to enhance communication on land or sea. All products are designed, engineered and manufactured by Digital Antenna in the USA. Visit www.DigitalAntenna.com to view our complete product line.

  • Page 13: Technical Support

    For answers to most questions access Digital Antenna’s knowledgebase and Troubleshooter section on Digital Antenna’s website www.DigitalAntenna.com. When contacting Digital antenna regarding your repeater, locate the product’s serial number on the DA4000SBR unit before calling. The serial number is located on the bottom of the DA4000SBR unit.
