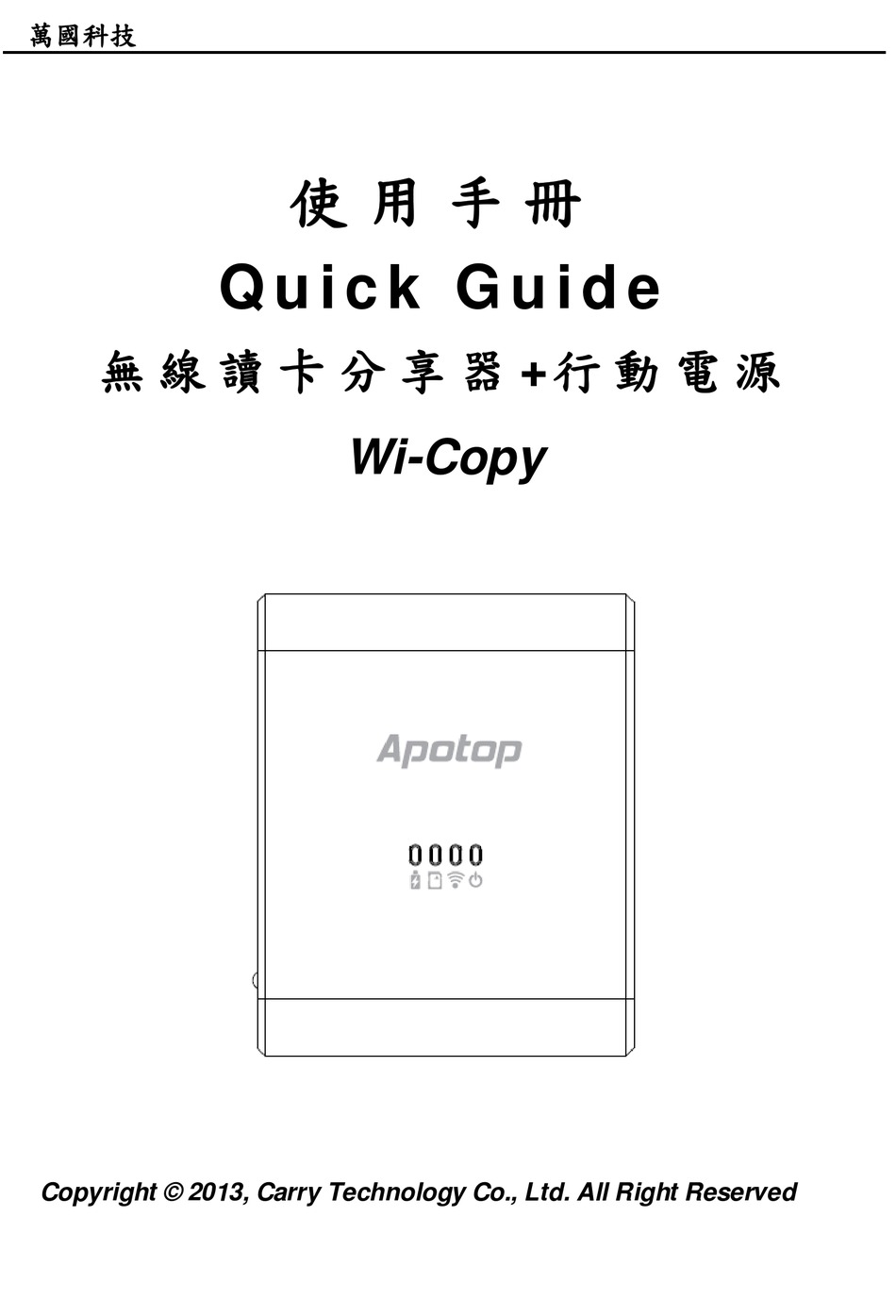

- Page 1 萬國科技 廠牌：Apotop 型號：DW21 使 用 手 冊 Q u i c k G u i d e 無 線 讀 卡 分 享 器 +行 動 電 源 Wi-Copy Copyright © 2013, Carry Technology Co., Ltd. All Right Reserved...
-
Page 2: Table Of Contents
萬國科技 目錄/Catalog 感謝您的購買/ Thanks for your purchasing…………………2 1 . 1 包 裝 內 容 / P a ck a g e C o n te n t … … … … … … … … … … . 2 1.2 介面與 LED 燈號顯示說明/ Interface &... - Page 3 產品使用前請先至 Google Play Store 或 Apple App store 免費下載 Wi-Copy App，並完成安裝。 Wi-Copy is a wireless storage (UFD/ USB HDD or SD card) and wireless router. For Wireless Storage function, you can download the special designed iOS or Android App: “Wi-Copy” based on storage...
-
Page 4: 包 裝 內 容 / P A Ck A G E C O N Te N T
池充滿) 2. 1 條USB Cable 3. 1 份使用手冊 The package contains the following items 1. 1 x Wi-Copy (has built-in battery, please have it full charged before first usage) 2. 1 x USB Cable 3. 1 x Quick Guide 1.2 介面與 LED 燈號顯示... - Page 5 萬國科技 LED 燈號指示於外殼上方(由右至左依序如下): 電源/低電量(綠色 / 橘色) 1. 指示燈亮綠色表示電力充足以及切換至無線網路模式； 2. 指示燈亮橘色表示電池電力不足，須盡快進行充電。 無線網路啟動(藍色) 3. 顯示目前無線網路已經啟動，可以使用。 SD 卡/隨身碟插入與讀寫(綠色) 4. 指示燈亮綠色，顯示 SD 記憶卡或是隨身碟已經插入，燈號閃 爍，顯示進行資料傳輸。 電池充電中(紅色) 指示燈亮紅色，表示連接 USB 線正在對內建的電池進行充電， 紅色燈號熄滅表示已經充電完成(註:電力充足時將不會充電)。 5. 重置按鈕 (位於右側重置按鈕孔內) 操作步驟 : 開啟 WiFi 模式， 確認無線分享器的電源已正確供應。 確認無線網路連線之藍色燈號閃爍。 使用迴紋針等尖端的工具插入重置按鈕孔 ， 按壓超過 3秒， 待藍色燈號熄滅後，請放開重置按鈕孔，即可回復出廠設 定。...
- Page 6 * Charger LED will turn off when charging is finished 5. Reset (3Sec) button on the right side: First, please make sure you had powered on the Wi-Copy and WiFi LED (Blue) is keeping in working stage, then you can use a kit to press the Reset button. After pressing 3 seconds, you will see WiFi LED (Blue) will turn off.
-
Page 7: 主要功能介紹/ Main Function
2. 插入儲存媒體 (USB 隨身碟或 SD 記憶卡)至 Wi-Copy 本體，開啟 Wi-Copy 電源並等待 35 秒，至藍色 LED 指示燈閃爍。 Plug a storage media (USB Pen Drive or SD Card) into Wi-Copy. Power it on and wait for the blue led flickering (about 35 sec) 3. 在 iPad/ iPhone 中的”設定-WiFi”中選擇連結至 Wi-Copy_xxxxxx 。... - Page 8 5. 自 SD Card/ USB 隨身碟傳送檔案到 iPad/ iPhone 請點按畫面右上角的 Edit 可以開始選擇檔案，選擇完畢後再按左下方 的小圖示，便可以進行下載、移動、更名或刪除等動作。 Download files from Wi-Copy. Click Edit at the up-right of the screen and you will be able to select the file(s) to download to Photos App/ download to Wi-Copy App(in Collections section), Move, Rename or Delete.
- Page 9 Connect the other end of the cable to Ethernet hole of hotel (or ISP router). 3. 打開 Wi-Copy 電源並等待約 35 秒。 Power on the Wi-Copy and wait about 35 sec 4. 在 iPad 或 iPhone 的”設定-WiFi”中選取 Wi-Copy_xxxxxx。(標 示如 Wi-Copy 本體背後之 SSID) 。...
- Page 10 At “Wireless” - “Security” (See 2.3 step 1 – 5 to enter setup page) Choose the type of Encryption. Turning on the Wi-Copy Security will prevent any unauthorized access to the wireless network and storage device. Setup the password of Wi-Copy at Pre-Share Key, after updating it, please click Apply Changes.
-
Page 11: 2.3 如何設定無線網路環境(插網路線)/ How To Setup A Wireless
以利設定更新。 At “Wireless” – “Basic Settings” (See 2.3 step 1 – 5 to enter setup page) You can change the name of SSID for your Wi-Copy. Click Apply Changes while done. 2.3 如何設定無線網路環境(插網路線)/ How to setup a wireless network (with an internet cable) ... - Page 12 LAN Interface Setup 為了同時使用 Wi-Copy 的讀卡功能，你不需要更新 IP Address 以及 Subnet mask。請直接點按 Next。 In order to use storage function of Wi-Copy, you don’t need to update the IP addresses, subnet mask for Wi-Copy. Please click “Next” directly to skip it. WAN Interface Setup 在此以...
- Page 13 Name and Password need to be done and click “Next”. If Wi-Copy would be connected to internet through your original router or you just want to use the storage function of Wi-Copy, you can keep it in “DHCP Client” and click “Next” directly.
-
Page 14: 如何設定無線網路環境(不插網路線)/ How To Setup A Wireless
萬國科技 Turning on the Wi-Copy Security will prevent any unauthorized access to the wireless network and storage device. Setup the password of Wi-Copy at Pre-Share Key, after updating it, 2.4 如何設定無線網路環境(不插網路線，直接連線至現有無線分享器) How to setup a wireless network (without an internet cable, connect to original wireless router) ... - Page 15 在 Wireless Basic Settings，你可以更改 Wi-Copy 的 SSID(無線 網路名稱)，若不想要變動名稱，也可以直接點按 Next。 Wireless Basic Settings for using different SSID for your Wi-Copy. Also, if you do not want to change it, please click “Next” directly. 10. 在 Wireless Security 設定中 ， 於 Encryption 中可選擇加密方式。...
- Page 16 萬國科技 Wireless Security Setting. The following figure is to show setting up the security of the Wi-Copy. Turning on the Wi-Copy security will prevent any unauthorized access to the wireless network and storage device. After updating it, please click “Next” directly.
-
Page 17: 行動電源功能 / Powerbank Function
結至 Wi-Copy 的 USB 連接埠，即會開始充電。 How to charge a Smartphone: Please make sure the button of Wi-Copy is on the left side (above the battery icon). Plug your Smartphone to the USB port of Wi-Copy, and the charging will begin immediately. -
Page 18: Ncc 警語 / Fcc Compliance And Advisory Statement
萬國科技 NCC警語 第十二條： 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者 均不得得擅自變更頻率、加大功率或變更通原計之特性及功能。 第十四條： 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有 干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機 須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 19 萬國科技 on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.
