Summary of Contents for Cambridge SoundWorks BASSCUBE 821

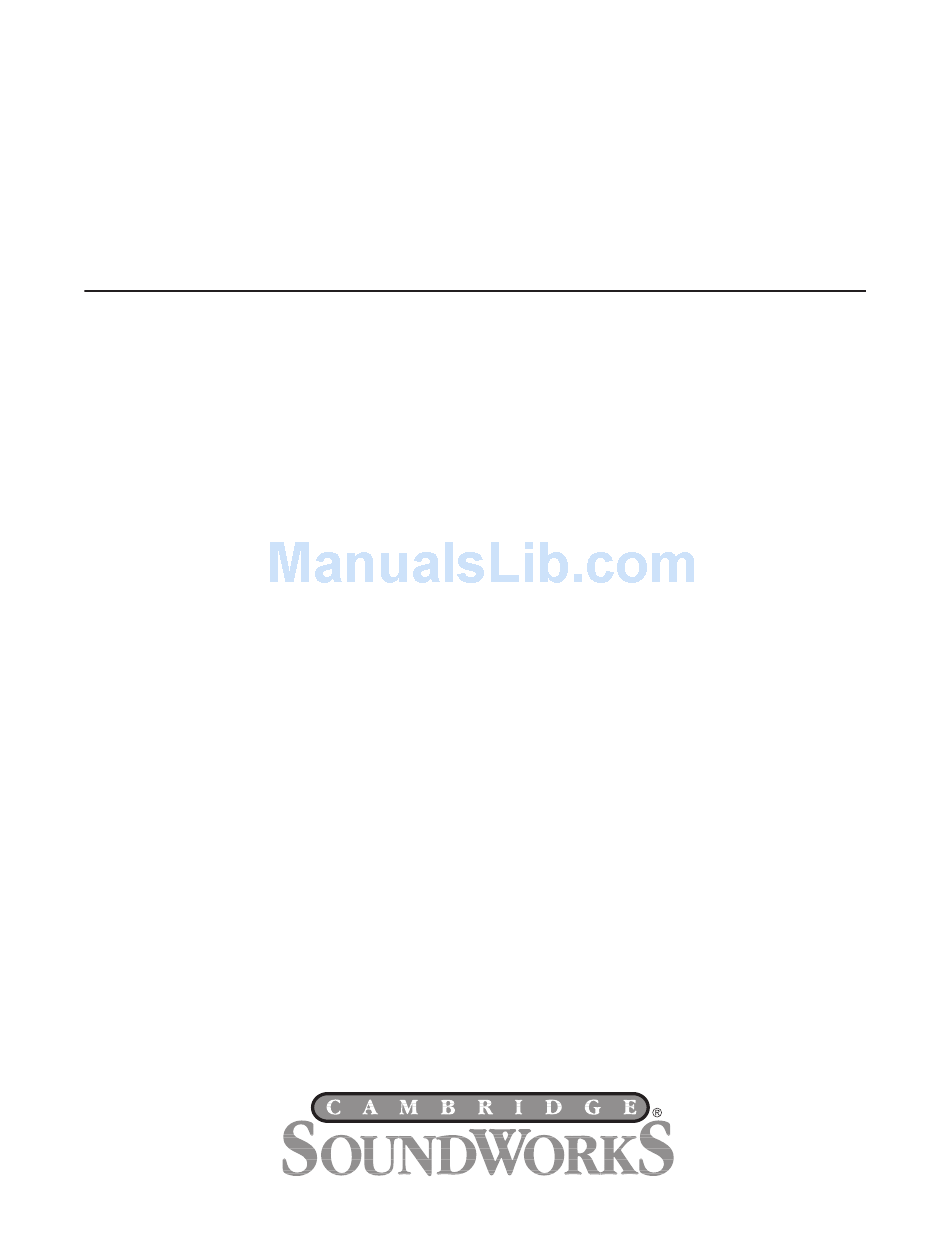

- Page 1 ™ S U B W O O F E R / A M P L I F I E R S Y S T E M U S E R M A N U A L...
-
Page 2: Important Notice
The lightning flash with arrowhead, The exclamation point within an equilat- within an equilateral triangle, is intended eral triangle is intended to alert the user to alert the user to the presence of to the presence of important operating uninsulated “dangerous voltage” within and maintenance (servicing) instructions the product’s enclosure that may be of in the literature accompanying this... -
Page 3: Important Safety Instructions
OBJECT AND LIQUID ENTRY – Never use probes of ATTACHMENTS – Do not use any adapters or attach- any kind to reach into the speaker as they may touch ments not recommended by Cambridge SoundWorks dangerous voltage points or short parts that could as they may cause hazards. -
Page 4: Table Of Contents
TABLE OF CONTENTS Introduction ..............4 INTRODUCTION Carton Contents............5 Thanks for choosing the BassCube 821 Connection Diagram ..........6-7 subwoofer/amplifier. It features a high-performance Positioning Your Speakers..........8 woofer, precision internal crossover and amplifier cir- Connections ............9-12 cuitry and an elegant enclosure design. -
Page 5: Carton Contents
F) Stereo Signal Cable, Green Miniplug to Green Miniplug Plugs into LINE IN A or LINE IN B Connect to any analog sound source with a stereo output jack, like Cambridge SoundWorks MusicWorks ™ a portable CD player, or a computer sound card. BassCube... -
Page 6: Connection Diagram
CONNECTION DIAGRAM Analog Signal Cable Green plug – to a stereo minijack analog out ( usic orks, sound card, portable C play ual CA to inijack – to typical ome audio source or V ouput Home Audio source, layer, etc 6 6 6... - Page 7 tput yer) 120VAC 60Hz...
-
Page 8: Positioning Your Speakers
POSITIONING YOUR SPEAKERS SUBWOOFER/AMPLIFIER Place the Subwoofer cabinet on the floor, preferably near a wall. Do not place it on a desktop or shelf. For maximum bass output, place the subwoofer near a corner. If the subwoofer is placed away from the intersection of two room surfaces, the maximum bass output will be reduced. -
Page 9: Connections
VOLUME CONTROL on the Subwoofer input panel until it snaps in place. Signal Connections BASS The BassCube 821 has two analog inputs. C) LINE IN A: Connect the 3.5 mm minijack output of any analog signal source to this 3.5 mm stereo minijack input. - Page 10 (included). Connect the miniplug to volume setting. In this case, connect the volume LINE IN A of the BassCube 821 and the RCA plugs control and set it low enough to make the noise to your television’s red and white RCA jacks. (Do inaudible, then stow the volume control next to the not connect to yellow RCA jacks.
- Page 11 2) Using the BassCube 821 system as a sound system for a component CD player. COMPONENT CD OUTPUT Typically, there are two RCA-type jacks (one red, one white) on the CD player. To connect to these OUTPUTS jacks, use the stereo signal cable with two RCA plugs on one end and a 3.5 mm stereo miniplug at...
-
Page 12: Connections
Speaker Connections To connect the speaker cables. The BassCube 821 will accept your choice of speaker wire up to AWG#16. We recommend at least AWG#18 for runs up to 12 feet, and AWG#16 for longer runs. Speaker wire is generally marked in some way to help identify the “+”... -
Page 13: Operation And Final Adjustment
BassCube 821 amplifier is muted and goes into Standby Mode. When the signal returns, the amplifier will unmute. It is normal for the BassCube 821 to remain slightly warm when in Standby Mode. It may be left in Standby Mode indefinitely. -
Page 14: Specifications
SPECIFICATIONS FUSE REPLACEMENT Analog Input: IMPORTANT: Turn off and unplug the 775 millivolts for full output speaker before changing the fuse. 10 kohms input impedance Amplifiers: Satellite: 60 watts continuous at 1 kHz, two channels driven at less than .1% total harmonic distortion. Subwoofer: 150 watts continuous at 100 Hz, one chan- nel driven at less than .3% total harmonic distortion. - Page 16 CAMBRIDGE SOUNDWORKS, INC. 26 Dartmouth Street, Westwood, MA 02090 Telephone: 1-800-367-4434 Fax: 1-617-527-3194 Company P81-1910...
