Lantech HR-114 II User Manual

High speed internet broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

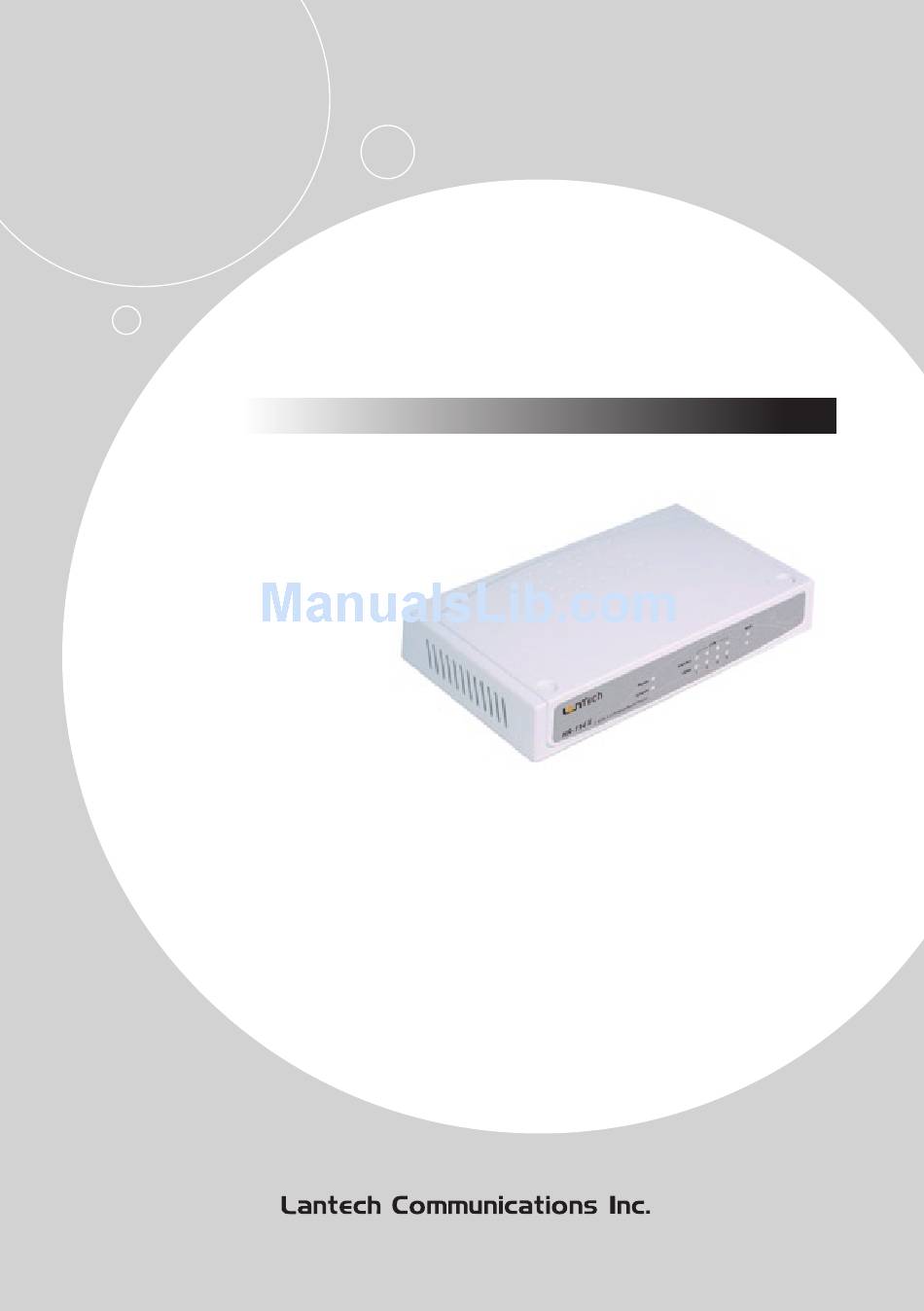

HR-114 II
High Speed Internet Broadband Router

User Guide

Rev. 1.0 August, 2003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HR-114 II and is the answer not in the manual?

Questions and answers

Related Manuals for Lantech HR-114 II

Summary of Contents for Lantech HR-114 II

  • Page 1: User Guide

    HR-114 II High Speed Internet Broadband Router User Guide Rev. 1.0 August, 2003...

  • Page 2: Fcc Warning

    User Guide FCC Warning This equipment has been tested and found to comply with the regulations for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 3: Table Of Contents

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router TABLE OF CONTENT 1. About This Guide...............3 Purpose...................3 Overview of this User’s Guide...........3 2. Introduction................3 Applications:................4 Features:.................4 3. Unpacking and Setup..............5 Unpacking................5 Setup..................5 4. Hardware Installation..............6 Front Panel................6...

  • Page 4: About This Guide

    User Guide 1. ABOUT THIS GUIDE Congratulations on your purchase of this 4-port Broadband Router. This device integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities in a highly flexible desktop package. It provides a complete solution for Internet surfing and office resources sharing, and it is easy to configure and operate for even non-technical users.

  • Page 5: Applications

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router The scarcity of IP addresses and using a shared Internet connection through an Internet sharing device can solve high network access costs. All linked computers can make full use of broadband capabilities over such a device.

  • Page 6: Unpacking And Setup

    User Guide 3. UNPACKING AND SETUP This chapter provides unpacking and setup information for the Broadband Router. Unpacking: Open the box of the Broadband Router and carefully unpack it. The box should contain the following items: . One 4-port High Speed Broadband Router .

  • Page 7: Hardware Installation

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router 4. HARDWARE INSTALLATION Front Panel : The figure below shows the front panel of the Broadband Router. 4-Port 10/100Mbps Ethernet Broadband Router Front Panel •...

  • Page 8: Hardware Connections

    User Guide • WAN – In the four port broadband router, there is an RJ-45 10/100Mbps Auto-MDIX port for the WAN that will fit the xDSL/Cable modem’s specification need. • LAN (1-4) – Four RJ-45 10/100Mbps Auto-MDIX ports for connecting to either 10Mbps or 100Mbps Ethernet connections.

  • Page 9: Check The Installation

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router Check the installation : The control LEDs of the Internet Broadband Router are clearly visible and the status of the network link can be seen instantly: 1.

  • Page 10: Windows 2000

    User Guide 5. Select “Disable DNS” in the “DNS” field. 6. Select “None” for the “Gateway address” field. Windows 2000 : Double click on the “My computer” icon on the desktop. When “My computer” window opens, open the “Control panel” and then open the “ Network dialup connection”...

  • Page 11: Windows Nt4.0

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router 1. In the “Local area network status” window, click on “Properties.” 2. In the “Local area network connection” window, first select TCP/IP setting and then select “Properties.”...

  • Page 12: Windows Xp

    User Guide Windows XP : Point the cursor and click the right button on the “My Network Place” icon. Select “properties” to enter the TCP/IP setting window. 1. Set “IP address” to “Obtain an IP address automatically.” 2. Set “DNS” to “Obtain DNS server address automatically.”...

  • Page 13: Internet Broadband Router Configuration

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router INTERNET BROADBAND ROUTER CONFIGURATION First make sure that the network connections are functioning normally. This Internet Broadband Router can be configured using Internet Explorer 4.0 or newer web browser versions.

  • Page 14: Quick Setup

    User Guide choices for setting, Quick Setup or Advanced Setup, it is recommended that the beginner to use the Quick Setup, it will lead you step by step to configure the Broadband Router. Quick Setup : In the main web page, select “Quick Setup” to specify the Time Zone and the WAN connection type: Cable modem (DHCP), Fixed IP, or Dial-up xDSL (PPPoE).
  • Page 15 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router Dial-up xDSL (PPPoE) to process. 1-2-1 Cable modem (DHCP) : To connect a cable modem with the Broadband Router, check the cable modem with the related user’s guide, then the Cable modem will automatically configure itself, the Broadband Router is configured to automatically assign addresses to each PC.
  • Page 16 User Guide 1-2-3 PPPoE (Dial-up xDSL) : If connected to the Internet using a PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password and User Name, then the ISP uses PPPoE. Choose this option and enter the required information, if the ISP provided a Service Name, enter it in the column of the Service Name field, otherwise, leave it blank.
  • Page 17 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router user’s need to save the cost of connection fee from ISP provider (default time=0, always connect). Click on the Connect-on-demand button to dial up to the ISP when only on demand, while there is a need of connecting to the ISP automatically.
  • Page 18 User Guide 1-3 DNS : The Domain Name System (DNS) is the way that Internet domain names are located and translated into Internet Protocol (IP) addresses. If your ISP provided at least one DNS Server IP Address, type that IP Address in the Primary DNS address fields.

  • Page 19: Advance Setup

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router Advance Setup : The Broadband Router supports advanced functions like System setting WAN setting, LAN setting, NAT Setting and Firewall setting. 2-1 System This page includes all the basic configuration tools for the Broadband Router.
  • Page 20 User Guide . Remote Management from Internet – To manage the Broadband Router from a remote location (outside of the local network through WAN port), it must specify the IP address of the remote PC, otherwise, leave the IP address 0.0.0.0, means all legal IP address can access the device. 2-1-3 Firmware Upgrade : By upgrading a new firmware for the Broadband Router to improve functionality and performance.
  • Page 21 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router While updating the firmware, please wait after pressing the APPLY button, and follow the instruction on the screen, the System Light on the front panel will start blinking when the firmware upgraded successfully.
  • Page 22 User Guide 2-1-6 System Log : View any attempts that have been made to gain access to the network.
  • Page 23 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router 2-1-7 Reset : In the event that the Broadband Router stops responding correctly or in some way stops functioning, perform the reset function. The settings will not be changed. To perform the reset, click on the “Reset”...
  • Page 24 User Guide 2-2-2 Static IP : If the Service Provider has assigned a fixed IP address, enter the assigned IP address subnet mask and gateway address provided. Click “yes” if using two or more IP addresses. 2-2-3 Dial-up xDSL (PPPoE) : If connected to the Internet using a Dial-up xDSL (PPPoE) Modem, the ISP will provide a Password and User Name, and then the ISP uses PPPoE.
  • Page 25 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router 2-2-4 PPTP : If connected to the Internet using a (PPTP) xDSL Modem, enter the PPTP Account Name, PPTP Password, Host Name, Service IP Address, Your IP Address, Your Subnet Mask required by your ISP in the appropriate fields.
  • Page 26 User Guide 2-2-5 DNS : The Domain Name System (DNS) is the way that Internet domain names are located and translated into Internet Protocol (IP) addresses. If your ISP provided at least one DNS Server IP Address, type that IP Address in the Primary DNS address fields.
  • Page 27 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router from IP Pool Starting Address to IP Pool Ending Address, also, you can change the IP Pool range value. The Lease Time is the amount of time a network user will be allowed connection to the Router with their current dynamic IP address.
  • Page 28 User Guide others. These applications cannot work when Network Address Translation (NAT) is enabled. When users send this type of request to your network via the Internet, the Router will forward those requests to the appropriate PC. If you need to run applications that require multiple connections, specify the port normally associated with an application in the “Trigger Port”...
  • Page 29 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router Example: Trigger Trigger Public Public Port Comment Port Type Type MSN Game 28800 2300-2400, 47624 Zone MSN Game 28800 2300-2400, 47624 Zone 6112 6112 Battle.net...
  • Page 30 User Guide port mapping rules such as the Web or FTP at the local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the Broadband Router redirects the external service request to the appropriate server.
  • Page 31 HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router The Broadband Router provides packet filtering rules by restricting service ports, IP address or MAC address. However, for applications that require unrestricted access to the Internet, configure a specific client/server as a demilitarized zone (DMZ).
  • Page 32 User Guide 2-5-3 MAC Control : You can block certain client PCs accessing the Internet based on MAC addresses. 2-5-4 DMZ (Demilitarized Zone) : If a local client PC cannot run an Internet application properly from behind the NAT firewall, open the client up to unrestricted two-way Internet access by defining a virtual DMZ Host.

  • Page 33: Technical Specifications

    HR-114 II HR-114 II 1 WAN 4 LAN Broadband Router 1 WAN 4 LAN Broadband Router 7. TECHNICAL SPECIFICATIONS General Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet ANSI/IEEE 802.3 Auto-negotiation Protocol CSMA/CD Data Transfer Ethernet: 10Mbps (half duplex), 20Mbps (full-duplex)
  • Page 34 3F, No.8, Lane 345, Yang-Kuang St., Nei-Hu Dis., 114, Taipei, Taiwan, R.O.C. tel: +886-2-2659-1800 fax: +886-2-2659-1801 e-mail: service@mail.lantech.com.tw http://www.lantech.com.tw...
