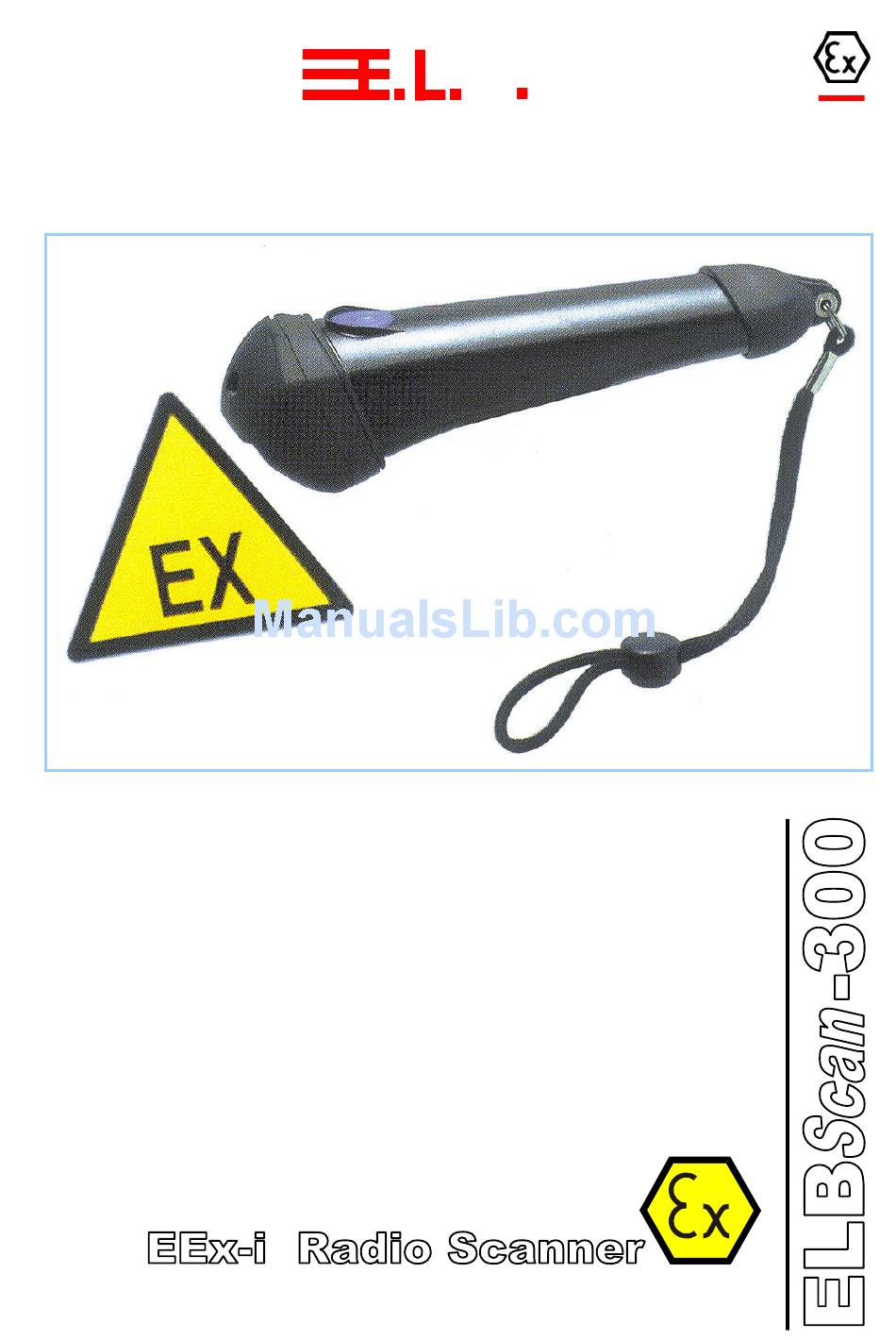

- Page 1 EX-GERÄTE BACHMANN GmbH & Co. KG Technical Documentation ELBScan-300 Scanner SK-30... • Base Station BS-30..., BS-290 • Charging Unit LK-30... • 02.10.2007...
-
Page 2: Table Of Contents
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Instruction Manual ELBScan 300 Contents General Information Page Brief Description..............Delivery Components............3 Start-up................Charging of the built-in Battery..........7 Cleaning................7 Technical Data Operating Data..............8 Terminals................11 Base Station Dimensions............ 12 Option: CAT5 long distance transmitter (PS/2).... -
Page 3: General Information Page
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation General Information Brief Description Radio Scanner SK-30... : No cable; radio distance: typically 20 m (max. 40 m) to the base station Great scan distance (20 cm ... 6 m); ideal for scanning from a fork truck Light weight (170 g) Wide scan field (up to 220 cm at 6 m scan distance;... - Page 4 Bar Code Radio Scanner System ELBScan-300 - Technical Documentation • Start of Configuration • Keyboard Wedge Mode Activated • 1-1 (= US keyboard ID code [2 numbers]) or 6-1-1 (= UK ID code) • Return (for one "Carriage Return" after each scan) •...
- Page 5 Bar Code Radio Scanner System ELBScan-300 - Technical Documentation PS/2 Configuration: 611=UK; 11=US Default = RS-232 02.10.2007 © E.L.B. Ex-Geräte Bachmann GmbH & Co.KG Page 5...
- Page 6 Bar Code Radio Scanner System ELBScan-300 - Technical Documentation USB Configuration, 524 = US; 525 = D 02.10.2007 © E.L.B. Ex-Geräte Bachmann GmbH & Co.KG Page 6...
-
Page 7: Charging Of The Built-In Battery
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Charging of the built-in Battery Charging only with the enclosed charging device and outside of the Ex area. The charger contains circuitry to protect Ex components inside of the scanner. The charging head may be fixed to the wall like in the figure. -
Page 8: Cleaning
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Cleaning You may clean the scanner and the base station lamp with a damp cloth or a brush. Clean the laser window of the scanner from time to time with a very soft cloth. - Page 9 Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Charging devices Not allowed inside of the Ex area! No different charging device allowed! U = 230 VAC (LK300) U = 110...240 VAC (LU290) with exchangeable plugs for EU, UK, USA, AUS Ex protection: Bar code laser scanner SK-30…...
- Page 10 Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Type labels for SK-30...: E.L.B. Ex-Geräte Bachmann GmbH & Co. KG An der Hartbrücke 8, D-64625 Bensheim System ELBScan-300 Type: SK-30... Serial no. XXX Date: XX.XX.XXXX II 2 G EEx ia IIC T4 -30°C <...
-
Page 11: Terminals
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Terminals Buzzer L (DC+) Status LED N (DC-) PC Data PC Clock PC GND RS-232 TxD RS-232 GND terminal RS-485 A resistor RS-485 B 100Ω RS-485 R No connection allowed ! -
Page 12: Base Station Dimensions
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Base Station Dimensions (Drawings are not true to scale) Length of the antenna: 91 mm 02.10.2007 © E.L.B. Ex-Geräte Bachmann GmbH & Co.KG Page 12... -
Page 13: Option: Cat5 Long Distance Transmitter (Ps/2)
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation 9 Option: CAT5 long distance transmitter (PS/2) 232 mm up to 40 m 197 mm up to 10 scanners per station 9-24VDC distance Mouse 0,2 ..2,5 m PS/2 IP66 230 VAC... -
Page 14: Option: Bs-290 For Mounting Inside Of Cabinets
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Option: BS-290 for inside of cabinets Mounting of the antenna in the cabinet antenna 91 mm drill Ø: 16,5 mm M16 x 1,5 260 mm lead 4 x Ø 3,2 mm... -
Page 15: Use For The Intended Purpose
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation Use for the Intended purpose System ELBScan-30... is only meant to serve for scanning bar codes and transmit data to a PC. Any other application is regarded to be against the intended use. -
Page 16: Declaration Of Conformity
Bar Code Radio Scanner System ELBScan-300 - Technical Documentation EC Declaration of Conformity We hereby confirm the conformity of the equipment listed below with the directives of the Council of the European Community. The safety and installation instructions of the product documentation must be observed.
