- Page 1 U S A INSTALLATION GUIDE EP400 / E8-B www.Easycar-USA.com www.Easycar-USA.com...
-
Page 3: Before Beginning The Installation
U S A U S A Before Beginning the Installation 1. Wire Connection Guides • Please read this entire installation guide before beginning the installation. Heavy Gauge, 10-pin Connector (CN1) ➢ The installation of this push button remote start system requires interfacing with many of the vehicle’s systems. - Page 4 U S A U S A Door Lock Harness, 6-pin Connector (CN2) Positive Door Lock System ➢ CN2/1 BLACK (-) GROUND Installation Essentiality Matters Door Connection (CN2) CN2/ 6 PIN PLUG AFTER MARKET DOOR LOCK SYSTEM CN2/ Reverse Polarity System ...
- Page 5 U S A U S A Negative One-Way System CN3/5 BROWN (+) TRUNK RELEASE OUTPUT When the system receives the code controlling trunk release output for longer than 1.5 seconds, the BROWN wire supplies an output as long as the transmission continues.
- Page 6 U S A U S A Additional Harness (CN4) ➢ CN4/5 RED/BLACK (-) DOOR TRIGGER Most vehicles use negative door trigger circuits. Connect the RED/BLACK wire to a CN4/1 GREEN (+) TACHOMETER INPUT WIRE wire that shows ground when any door is opened. In vehicles with factory delays on the dome light circuit, there is usually a wire that is unaffected by the delay circuitry.

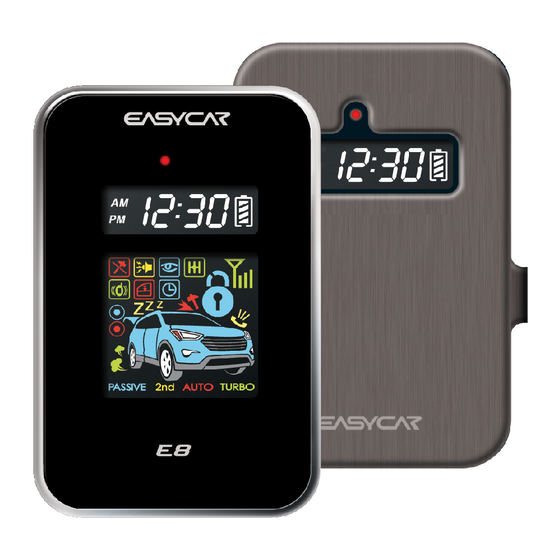

- Page 7 To start your vehicle, press the brake and press the Push-to-Start ** On the pager model (E8-B), knocking twice on the sensor will send a call signal to button. The “STOP” will illuminate the pager remote. However, it will not operate when the vehicle is on the ON position to red.
- Page 8 U S A U S A Auxiliary Harness (CN9) ➢ CN9/2 YELLOW/BLACK (-250mA) AUX 2 OUTPUT This wire provides (-) 250mA programmable output whenever the transmitter CN9/1 button(s) controlling Aux 2 is pressed. YELLOW (-250mA) AUX 1 OUTPUT This wire provides (-) 250mA programmable output whenever the transmitter button(s) controlling Aux 1 is pressed.
- Page 9 U S A U S A Temperature Sensor (CN11): 2. Noise Sensing LED E8-B ONLY ➢ The LED on the cover of the main controller unit is lit when the engine is running This sensor senses the interior temperature of the vehicle. Do not mount the and the light is turned off when the engine is off.
- Page 10 U S A U S A B. Easy Door Lock Program C. Smart Door Lock Registration (Push button will not operate until Easy Door Lock is programmed) 1) Open the driver side door. 1) Decide on a passcode, a 4 digit number. (i.e. 1234) 2) Make sure the Push-to-Start button is set to the “OFF”...
- Page 11 U S A U S A 6. How to Program the Options 4) Within 3 seconds, the vehicle’s parking lights will flash as well as chirp; corresponding to the first button pressed followed by chirp(s) and flashes matching the second button pressed. i.e.) Sound Select option ...
- Page 12 Easycar USA - brand parts. This warranty is VOID if you purchased this product as used, floor model sample, or refurbished; if the...
