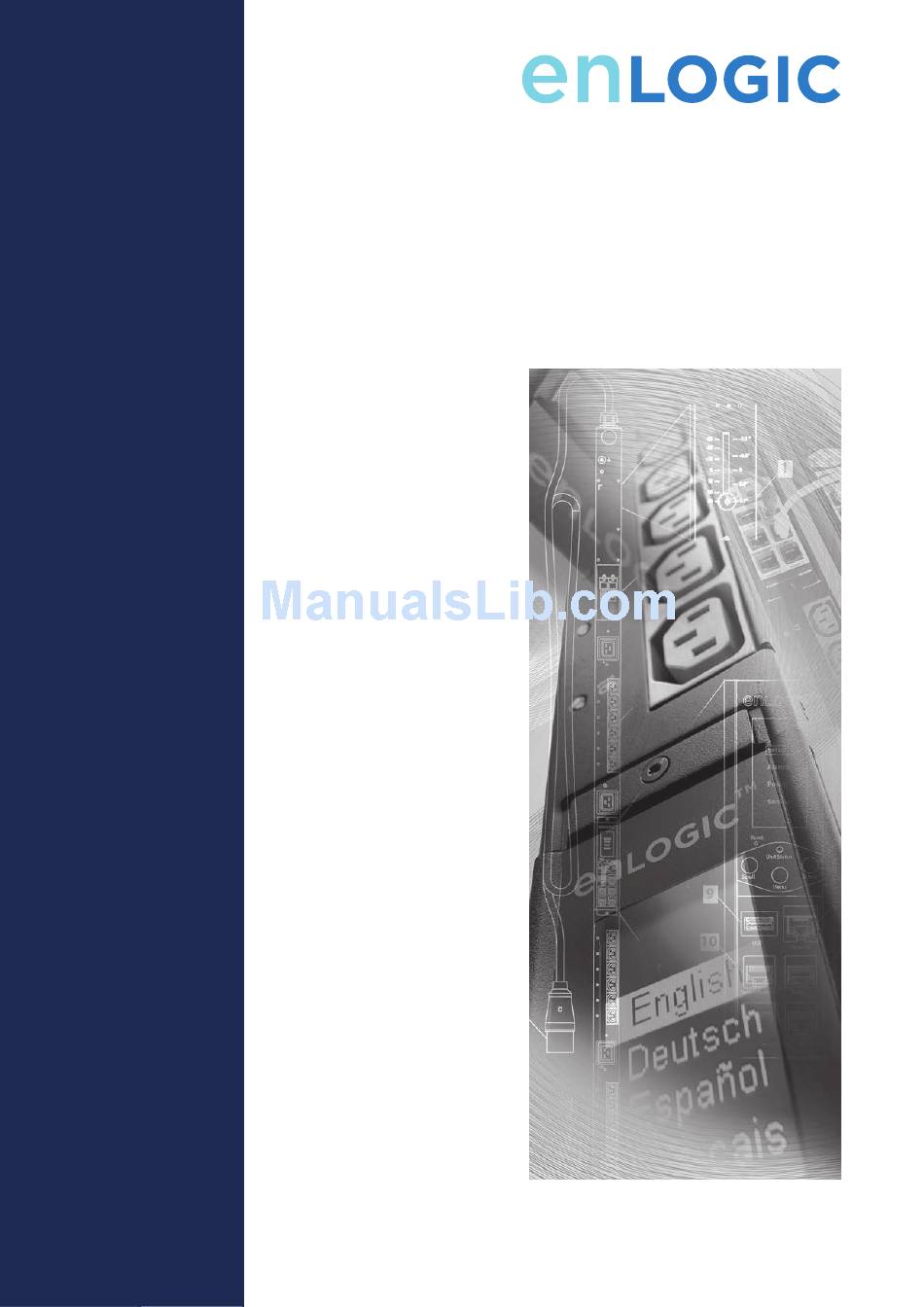

- Page 1 EN Series Power Distribution Unit & EZ Series Energy Meter Installation and Operation Manual For more information, go to www.enlogic.com. LT-00015-B5 April 2014...
-
Page 2: Table Of Contents
Connecting with a Serial Connection ................14 Connecting Environmental Sensors (Optional) ................... 15 Section 3: Enlogic Web User Interface (Web UI) Supported Browsers ........................16 Logging In to the Enlogic Web UI ....................16 Logging In ........................16 Changing User Password ....................16 Logging Out ........................16 Overview of the Enlogic Web UI ....................16... - Page 3 EN Series User Manual Section 4: SNMP SNMP Configuration ........................30 Configuring Users for Encrypted SNMP v3 ..................30 Configuring SNMP Traps ........................31 Configuring SNMP Trap Settings ..................31 Configuring SNMP Traps ....................32 Downloading the SNMP MIB ......................32 Downloading the SNMP MIB: ..................32 Section 5: The Command Line Interface Logging in with HyperTerminal ......................33 Logging in with SSH or Telnet ......................33...
- Page 4 Connect the PDUs for DNA ....................49 Daisy Chain & DNA Commands in CLI ................50 Appendices Appendix A: EN Series Bracket Mounting Info ................52 Appendix B: EN Series Product Range for EMEA ................53 Appendix C: EN Series Product Range For North America ..............54 www.enlogic.com...
-
Page 5: Pdu Safety Guidelines
Internal parts of the PDU may get extremely hot during operation. Use care before handling. • Changes and modifications to this equipment could void the warranty. Enlogic is not responsible for damage to this product resulting from accident, disaster, or misuse. Note: If the product is a switched model, power may be present at a receptacle even when it is switched off. -
Page 6: Section 1: Introduction
PDU and associated equipment. The Enlogic family of enterprise-grade rack PDUs includes comprehensive power management, watt-hour energy metering, and environmental monitoring; all within the industry’s slimmest space-saving design. A large selection of standard and configurable PDU options are available to meet your specific rack management application. - Page 7 EN Series User Manual 1. Remove the back cover of the PDU (located near the top power cord) by removing the four (4) screws as shown. Remove 4 Screws & Back Cover 2. Loosen the Terminal Block screws. Remove the power cords from the terminal block. Note: In 1-phase units, there are 3 wires.
-
Page 8: Outlets
Serial+Rs485-1: to connect EN and EZ models via RS232 protocol and reserved for future upgrade (i.e. Daisy Chain function) • Rs485-2: reserved for future upgrades • Sensor-1: to connect to environmental sensors • Sensor-2: to connect to environmental sensors www.enlogic.com... -
Page 9: Oled Display
EN Series User Manual OLED Display The OLED Display is located on the front of the EN Series PDU above the connection ports. When a device powers up, it takes a few minutes to fully load the software. When the software has completed loading, the OLED display will show the Startup Menu. - Page 10 www.enlogic.com...
-
Page 11: Menu, Reset, And Unit Status Button
Enlogic PDU circuit breakers sit underneath a protective panel to prevent accidentally tripping the circuits. If a circuit breaker is tripped, you can easily manually reset to the ON position for normal operation by pressing the... - Page 12 The PDU is labeled to indicate the input phase associated with each circuit breaker and outlets. • In North America 208V 3-phase (delta) configurations, the color of the circuit breaker corresponds to the line connections and will include a label of the two connected input phases (i.e., L1-L2, L2-L3, or L3-L1). www.enlogic.com...
-
Page 13: Section 2: Installation
PDU. The PDU should be connected to a dedicated circuit protected by a branch circuit breaker matching the PDU input plug type. Note: When connecting the Enlogic PDU to a Power Source, make sure that you have enough length in the PDU power cord to reach the PDU power source. -
Page 14: Connecting The Pdu To A Network
4. Use the menu buttons to look up the IP address of the device on the OLED display by selecting Setup > Network > IPv4 or IPv6 as applicable. 5. In a standard web browser, enter the PDU IP address and proceed to configure the PDU as shown in the Enlogic Web UI Interface section. -
Page 15: Connecting Environmental Sensors (Optional)
Connecting Environmental Sensors (Optional) To enable the EN Series device to detect Enlogic environmental conditions, connect one or more environmental sensors to the PDU sensor port 1 or 2. The maximum distance for sensor cabling plugged into the device’s sensor port should not exceed 100 feet (30 m). -
Page 16: Section 3: Enlogic Web User Interface (Web Ui)
Section 3: Enlogic Web User Interface (Web UI) The Enlogic Web UI is used to manage, control, configure, and administer Energy series PDUs and accessories. Supported Browsers The Enlogic Web UI is accessible from any of these browsers: • Firefox (v14.0.1 or higher) •... -
Page 17: Action Menus
PDU Explorer The PDU Explorer to the left of the screen displays a menu tree that details the Enlogic device being accessed and components connected to this PDU, such as inputs, outlets, and external sensors. - Page 18 Delete: To delete a user profile, go to User Administration>Users, 1. Select the user name. Note: To make multiple selections, press Shift+click to highlight multiple profiles. 2. Select Delete. 3. Select Yes to confirm the deletion. Select No to cancel. www.enlogic.com...
-
Page 19: Device Configuration
SSH or Telnet may be used to access the Command Line Interface. You can configure these various access ports via the Web UI to enable future management of the Enlogic Series PDU via Command Line Interface. 1. Go to Device Configuration > Network services, and then choose the access method you wish to enable: SSH, or Telnet, as necessary. - Page 20 SNMP Enabling SNMP communication allows the Enlogic Energy Series PDU to send events from an SNMP trap to you and allows you to view and control the status of outlets. Refer to Section 4: SNMP for instructions on the use of SNMP with the Enlogic Series PDU.
- Page 21 EN Series User Manual 2. Select the Block user on login failure checkbox. 3. Set the Maximum number of failed logins. 4. Set the length of time that must pass before the user may attempt login again. Use the Block Timeout dropdown menu provided.
- Page 22 9. Select OK. 10. Make sure the email is sent successfully. Server Reachability 1. Go to Device Configuration > Server Reachability. 2. From here, you can create a new server, edit a current server, delete or refresh a server. www.enlogic.com...
- Page 23 EN Series User Manual To setup the PDU with the ability to Ping the server IP/hostname and receive status updates: 1. Go to Device Configuration > Server Reachability. 2. Select New. 3. Enter an IP Address/Hostname. Select the Enable Ping Monitoring checkbox. 4.
- Page 24 Typically, the user name is the same as the Bind DN name, i.e., myuser. 2. In the Authentication Domain field, enter the Full Qualified Domain Name (FQDN) of the AD server. i.e. domain1.mydomain.com Refer to the following example for a correctly configured LDAP Settings dialog box: www.enlogic.com...
-
Page 25: System Administration
View Firmware Update History Connected Users The EN Series device allows you to view connected users and user statuses on the Enlogic Web UI. Additionally, ONLY users with Admin privileges can disconnect other user privileges. 1. Go to System Administration > Connected Users. -
Page 26: Help
Navigating the PDU Explorer The PDU Explorer to the left of the screen displays a menu tree that details the Enlogic device being accessed and components on or connected to this PDU, such as inlets, outlets, and environmental sensors. - Page 27 Circuit Breakers Viewing Circuit Breaker Data Some models of Enlogic PDUs have two circuit breakers, others have six circuit breakers, and customized models may have any number. To view details about each circuit breaker on the PDU click “Circuit Breakers” on the PDU Explorer to open the Circuit Breakers Data Panel.
- Page 28 Outlet Power Management With the EN Series PDU you can customize each outlet and view all circuit breaker to outlet associations through the Enlogic Web UI. On certain EN Series models, outlets can be remotely turned on/off. Naming an Outlet 1.
- Page 29 (By default, admins and standard users have this permission). 1. Select the Outlet Power Management Folder from the Enlogic PDU Explorer. 2. In the Outlet Power Management Panel, select the outlet that must be switched on, switched off, or reboot.
-
Page 30: Section 4: Snmp
Select the“Enable SNMPv3 access” checkbox. (Leave this box blank to restrict SNMP access). • Choose a Security Level from the dropdown menu: NoAuthNoPriv: No authentication and no privacy. This is the default. • • AuthNoPriv: Authentication and no privacy. www.enlogic.com... -
Page 31: Configuring Snmp Traps
EN Series User Manual • AuthPriv: Authentication and privacy. • Either select “Use Password as Authentication Phrase” or enter a new unique password to be used for authentication and then enter the new pass phrase again for confimration in the Confirm Authenticatinon Pass Phrase field. -
Page 32: Configuring Snmp Traps
To use an SNMP manager, the EN Series PDU requires the SNMP MIB file. The MIB file describes the SNMP functions and shows the custom objects that describe the system at the individual and outlet level. Download the MIB file from the Enlogic Web UI. -
Page 33: Section 5: The Command Line Interface
EN Series User Manual Section 5: The Command Line Interface The Command Line Interface (CLI) is an alternate method used to manage and control the PDU status and parameters, as well as basic admin functions. Through the CLI a user can: • Reset the PDU •... -
Page 34: Cli Commands And Prompts
CLI Options To display a list of available options in the CLI, enter ‘?’. This will display the 4 main categories of command options available: sys, net, usr, dev. ENLOGIC>? PDU system configure and setting PDU net application configure and setting... -
Page 35: E Code' Messages
Displays current date ENLOGIC>sys date E000 Date:2013-01-11 Time:10:58:01 sys time Displays current time ENLOGIC>sys time E000 Date:2013-01-11 Time:10:58:01 ENLOGIC>sys date yyyy-mm-dd sys date yyyy-mm-dd Sets date E000 Date:2013-04-10 Time:11:03:18 sys time hh:mm:ss Sets time ENLOGIC>sys time hh:mm:ss E000 ENLOGIC>sys ntp... - Page 36 Command Description Example sys config start Uploads the configuration file via ENLOGIC> sys config start E801 the serial connection PDU will enter into configure file upload mode after reboot. System Reboot now, Are you sure?(Y/N): *Must use hyperterminal as serial Jump to system space ...
- Page 37 ENLOGIC> net tcpip dhcp E801 addressing Network is reconfigured, Please reboot to validate System Reboot now, Are you sure?(Y/N): ENLOGIC> net tcpip static 192.168.1.49 255.255.255.0 192.168.1.1 net tcpip static Sets the PDU to use static IP E801 addressing Network is reconfigured, Please reboot to validate...
- Page 38 Outlet# 5:Open Outlet# 6:Open dev outlet PDU-id Switches individual outlet on or off To switch PDU 1, outlet 10 off ENLOGIC> dev outlet 1 10 off outlet-index off/on E000 To switch PDU 2, outlet 4 on ENLOGIC> dev outlet 2 4 on...
- Page 39 Role ================================================== admi ******** admin user ******** user John ********* admin Jane ********** user Note: Refer to the Daisy Chain and DNA section of this manual for a list of commands for use in Enlogic DNA mode. The Critical Component...
-
Page 40: Section 6: Environmental Sensors
Section 6: Environmental Sensors The EN Series PDU can monitor environmental conditions with Enlogic’s environmental sensors. Environmental Sensors are connected to the EN Series PDU through the RJ45 connection or through the Sensor Input Hub which can connect up to three additional environmental sensors. The following environmental sensors are available: •... -
Page 41: Adding Environmental Sensors
Enlogic PDUs and Inline Meters are designed to collect a maximum of 6 environmental sensor measurements each. For example, the 3 Temperature & 1 Humidity sensor (model EA9105) collects 4 sensor measurements. The 1 Temperature & 1 Humidity sensor (model EA9103) collects 2 sensor measurements. -
Page 42: Temperature & Humidity Sensor Installation Instructions
Refer to the EN Series User Manual for instructions on how to create custom cord lengths using the RJ45 Quick Disconnect Coupler. Note: Use either the 1.8m Ethernet cable included with the Enlogic sensor or any other CAT5 or CAT6 Ethernet cable with a standard RJ45 plug. - Page 43 EN Series User Manual Door Switch Assembly Switch Sensor Magnetic Sensor Connection cable plugged into PDU 5. Log into the Web Interface, Telnet, or Serial to manage the Door Sensor alarm and notification settings. The sensor is designed to alarm if the door is opened more than 10mm. Inside Door Mounting Option 1.
-
Page 44: Dry Contact Cable Installation Instructions
1. Attach the open wire leads on the dry contact cable to a dry contact sensor. Refer to instructions for the dry contact sensor for this step. 2. Connect the RJ-45 jack of the Enlogic Dry Contact Cable to a sensor port on the PDU,Inline Energy Meter, or Sensor Hub (model EA9106). -
Page 45: Detecting Environmental Sensors
(provided). The adhesive-backed mount in the detection area may prevent or delay leakage notification. 1. Connect the RJ-45 jack on the Rope Fluid Leak Sensor assembly to a sensor port on the Enlogic PDU, Inline Energy Meter, or Sensor Hub (model EA9106). -
Page 46: Configuring Environmental Sensors
Viewing and Managing Environmental Sensor Information Readings of the environmental sensors are available in the Enlogic Web UI when they are connected properly. The main Dashboard page shows the information for managed environmental sensors only. The External Sensors page shows the information for both of managed and unmanaged sensors. -
Page 47: Monitoring The External Sensor
You can view the sensor details, including name, location, value, status, etc. The external sensor status can be viewed using the Enlogic Management Software. From the Dashboard, go to the External Sensors section, or expand the PDU folder and select the desired external sensor to view details. -
Page 48: Section 7: Daisy Chain & Dna-Dual Network Access
24 ports. Without using the daisy chain function, each port would supply network services to one (1) PDU. However, if using the daisy chain features of Enlogic, a typical network switch with 24 ports can supply network services for up to 96 PDUs. -
Page 49: Dna Setup
EN Series User Manual DNA Setup To setup DNA mode on two PDUs, the user must (1) configure the PDUs for DNA Mode (using CLI or Enlogic PCT) and then (2) connect the LAN Network cords and Ethernet cords between PDUs To Configure DNA Mode in the CLI 1. -
Page 50: Daisy Chain & Dna Commands In Cli
8. The following message will appear to confirm the landlord account is enabled: E000 9. DNA is now configured and enabled. Daisy Chain & DNA Commands in CLI The following is a list of executable commands available in the CLI for Enlogic DNA use only DNA Commands Command... - Page 51 EN Series User Manual The Critical Component...
-
Page 52: Appendix A: En Series Bracket Mounting Info
Mount with Enlogic part number EA9120 Schroff Varistar Contact Schroff for mounting bracket options Wrightline Paramount Mount Enlogic PDU using Eaton part number PDUBRCKT Wrightline Vantage S2 Mount Enlogic PDU directly in rack Wrightline Vantage Mount with Eaton part number 4PRPWRBRKT... -
Page 53: Appendix B: En Series Product Range For Emea
EN Series User Manual Appendix B: EN Series Product Range for EMEA EN2000, EN5000, and EN6000 Series ENLOGIC SKU Chassis Chassis OUTLET Input Total Depth Outlet Configuration Depth at METERED OUTLET METERED Circuit Power Outlets (L x W x D),... -
Page 54: Appendix C: En Series Product Range For North America
Appendix C: EN Series Product Range for North America EN2000, EN5000, and EN6000 Series ENLOGIC SKU OUTLET OUTLET Max Chassis Input Input Total Chassis Depth METERED METERED METERED Outlet Configuration Depth at Circuit Plug Outlets (L x W x D), in... - Page 55 EN Series User Manual The Critical Component...
