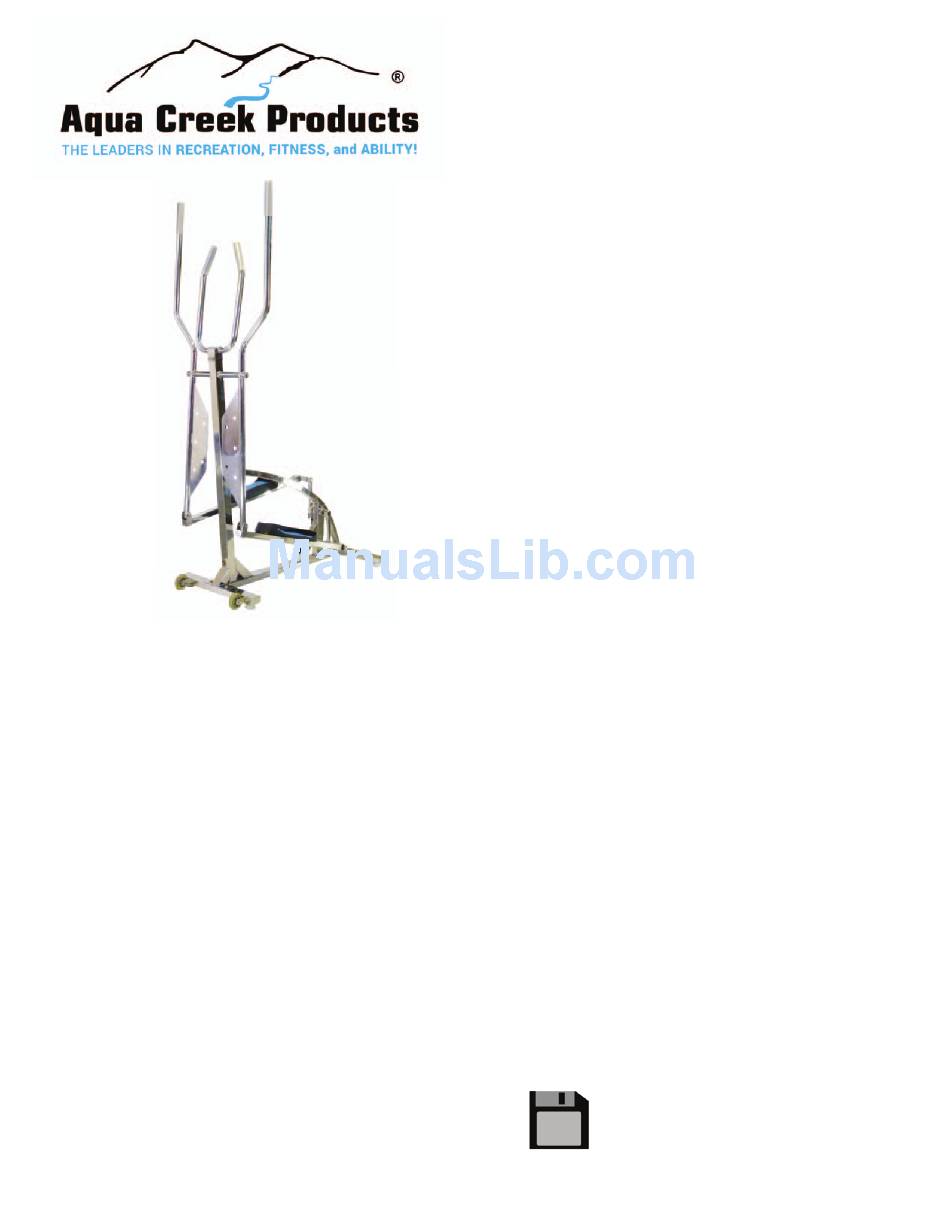

Elly Elliptical
PART #: F-WXEL
330 LB. [150 kg] MAXIMUM WEIGHT CAPACITY
MANDATORY – LEAVE THIS MANUAL
WITH ELLIPTICAL OWNER
• To assemble your equipment read entire manual and follow all instructions.
• Consult your doctor before beginning any sports or exercise program. Patients with
hypertension use extreme caution and consult your doctor prior to using this equipment.
• It is important to stretch and warm up prior to using this equipment.
• Check contents of all packages against the parts diagrams and report any damaged and/or
missing parts immediately.
• This device is designed for individual, adult use only. Children using this device should be
supervised.
• This product is to be used in a pool environment where the pH level of the water is maintained
between 6.7ppm and 7.6ppm.
9889 Garrymore Ln
Missoula, MT 59808
SAVE a copy of these instructions
888-687-3552 | +1-406-549-0769
aquacreek.com
1
Copyright © 2016 Aqua Creek Products All Rights Reserved
Revised 8/30/2016
Advertisement
Table of Contents
Summary of Contents for aqua greek products F-wxel
- Page 1 Elly Elliptical PART #: F-WXEL 330 LB. [150 kg] MAXIMUM WEIGHT CAPACITY MANDATORY – LEAVE THIS MANUAL WITH ELLIPTICAL OWNER • To assemble your equipment read entire manual and follow all instructions. • Consult your doctor before beginning any sports or exercise program. Patients with hypertension use extreme caution and consult your doctor prior to using this equipment.
- Page 2 Elly Elliptical PAGE DESCRIPTION EXPLODED VIEW PARTS LIST TOOLS ASSEMBLY USING THE ELLIPTICAL MAINTENANCE WARRANTY Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016...
-
Page 3: Exploded View
Exploded View Copyright © 2016 Aqua Creek Products All Rights Reserved Revised 8/30/2016... -
Page 4: Parts List
Parts List ITEM # QTY DESCRIPTION MAIN FRAME FRONT/BACK FOOT TUBE FOOT TUBE FLITCH FOOT MAT PU WHEEL PEDAL WELDING LOCK NUT FOR PEDAL BEARING L MOVE BEARING FOR SWING HANDLE HIGH HANDLE BAR SMALL HANDLE BAR Ø27 TUBE COVER SCREW M8x20 WASHER M8 FLAT WASHER M8 Ø25*Ø8.5*2... -
Page 5: Handlebar Assembly
Front/Back Foot Tube Assembly Connect the front foot tube to the foot tube flitch using the two (2) M8*45 screws, M8 flat washers and M8 nylock nuts. Handlebar Assembly 1. Connect the small handle bar to the main frame using the two (2) M8*60 screws, M8 washers and M8 nylock nuts. -
Page 6: Pedal Assembly
Pedal Assembly Loosen the nylock on the pedal bearing, lock the pedal welding on the crank, then tighten it. Fix the pedal on the main frame. Nylock Crank Pedal to Handrail Assembly Attach pedals to handrail with M8*45 screws, washers and M8 nylock nuts. Nylock Flat washer Screw... -
Page 7: Using The Elliptical
Using the Elliptical Consult with a physician before starting any exercise regimen Warm Up Phase: The warm up phase is important because it helps your blood flow and will reduce the risk of cramps and muscle injury. It is advisable to stretch during this phase. - Page 8 Elliptical Maintenance Elly Elliptical is made of marine quality AISI 316L stainless steel. Its anti-corrosion treatment makes it suitable for chlorinated water, seawater and thermal waters. It does not require any special care in pH-controlled water (6.7 / 7.6). 1. Remove the elliptical once a week and rinse it thoroughly with soft water, not pool water.
- Page 9 AQUA CREEK PRODUCTS, LLC LIMITED TWO (2) YEAR WARRANTY: WATER RIDER AQUATIC EXERCISE EQUIPMENT (ITEM #’s F-WXF, F-WX4S, F-WX5, F-WXEL, F-WXAQJG) Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products manufactured by Aqua Creek...
