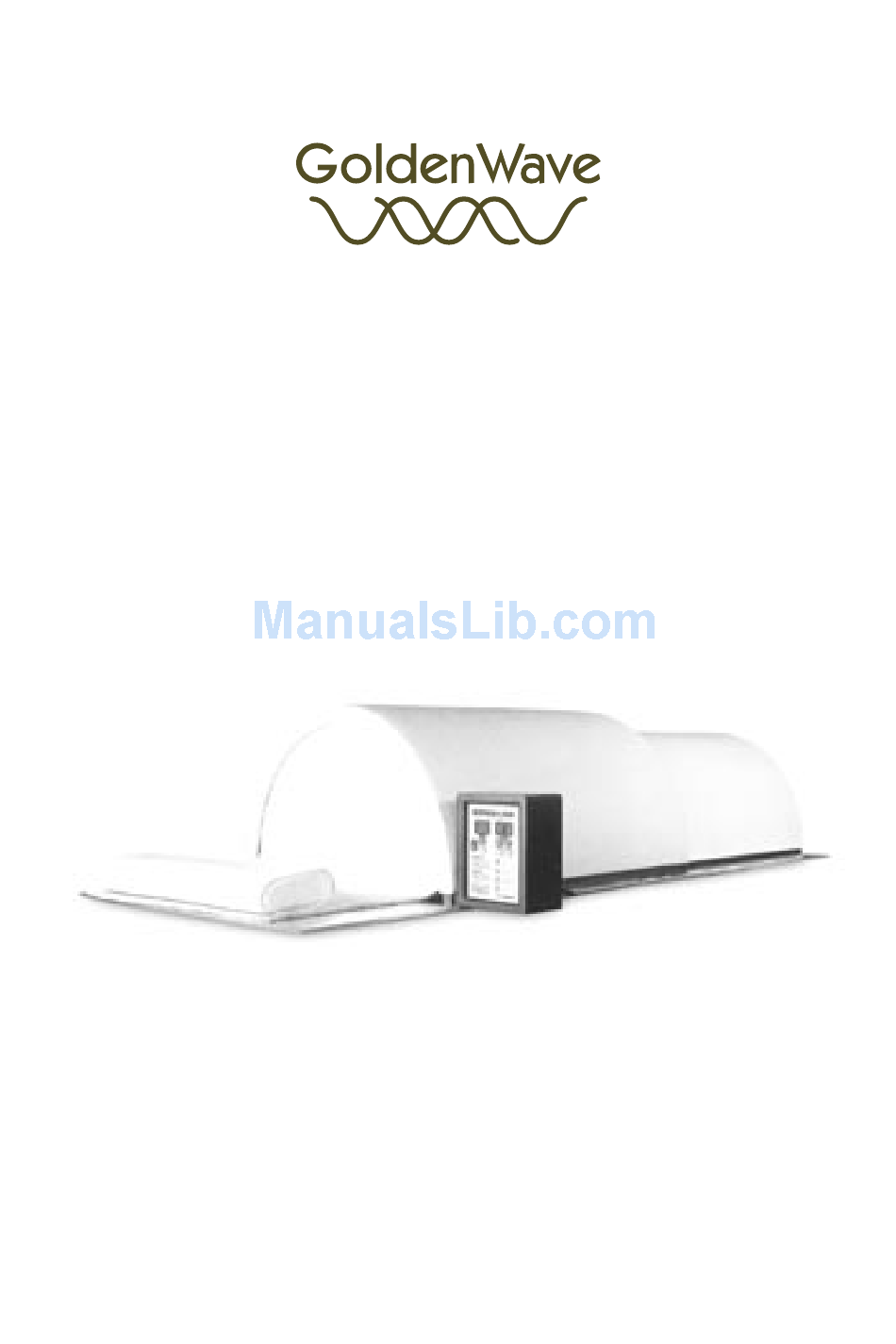

- Page 1 GD-900 / GD-1000 Troubleshooting Guide...
-
Page 2: Table Of Contents
Contents GD-900 Heater Panel Connections GD-900 Control Panel GD-900 Control Panel PCB GD-900 Rear Control Panel PCB GD-1000 UL(US specification) parallel connection GD-1000 CE(European specification) series connection GD-1000 Heater Panel and Troubleshooting GD-1000 Control Box Circuit Board UL(US specification) GD-1000 Control Box Circuit Board CE(European specification) -
Page 3: Gd-900 Heater Panel Connections
GD-900 Heater Panel Connections GD-900 Control Panel Timer display: 1.Under low temperature, the longest it can show is 12 hours. 2.Under middle or high temperature, the longest it can show is 1 hour. Temperature control Switch mode of time display from hours... -
Page 4: Gd-900 Control Panel Pcb
GD-900 Control Panel PCB GD-900 Rear Control Panel PCB Timer display: Connection to power 1.Under low temperature, the New type longest it can show is 12 hours. Transformer: 2.Under middle or high Defect: the pad temperature, the would not heat up longest it can show is 1 hour. -
Page 5: Gd-1000 Ul(Us Specification) Parallel Connection
GD-1000 UL(US specification) GD-1000 UL(US specification) parallel connection series connection Installation of heater panel(A1, A2) in the Power cord upper dome in the upper dome A1 Heater panel (long cord) A2 Heater panel (short cord) 1. Parallel connecting of heater panel A1 and A2s’ power cords(red) 2. - Page 6 GD-1000 UL( US specification) GD-1000 UL( US specification) parallel connection parallel connection Installation of heater panel C in the under Installation of heater dome panel(B1, B2) in the under dome Base board of under dome Heater panel B1 ( long cord ) Heater panel B2 (short cord ) Heater panel C Pressed board of under dome...
-
Page 7: Gd-1000 Ce(European Specification) Series Connection
GD-1000 UL( US specification) GD-1000 CE(European specification) parallel connection series connection 1. Installation of upper dome and under dome for GD-1000 CE(European specification) is the same as under UL(US specification).(Please see page 5,7,8) 2. Please see the figure below for power cords in the upper and Power of lower dome under CE(European specification) for GD-1000. -
Page 8: Gd-1000 Control Box Circuit Board
GD-1000 Heater Panel GD-1000 Control Box Circuit Board UL(US specification) Heater Panel Red and white cords: connect to the fuse Transformer Connect to the Buzzer Power cords ( black, white and green) Input Voltage: 110V Provide power for upper and under dome Temperature switch Fuse If there is a problem with the... -
Page 9: Gd-1000 Control Box Circuit Board
GD-1000 Control Box Circuit Board GD-1000 Control Box Fuse CE(European specification) If the fuse is broken or any defect occurs: 1.The light will not function; 2.Domes will not heat up or work; EMI filter Power cords (blue, brown and green) Input Voltage: 220V Red and white cords: Provide power for upper... -
Page 10: Gd-900/Gd-1000 Structure Diagrams
GD-900/GD-1000 Structure Diagrams - 15 -...
