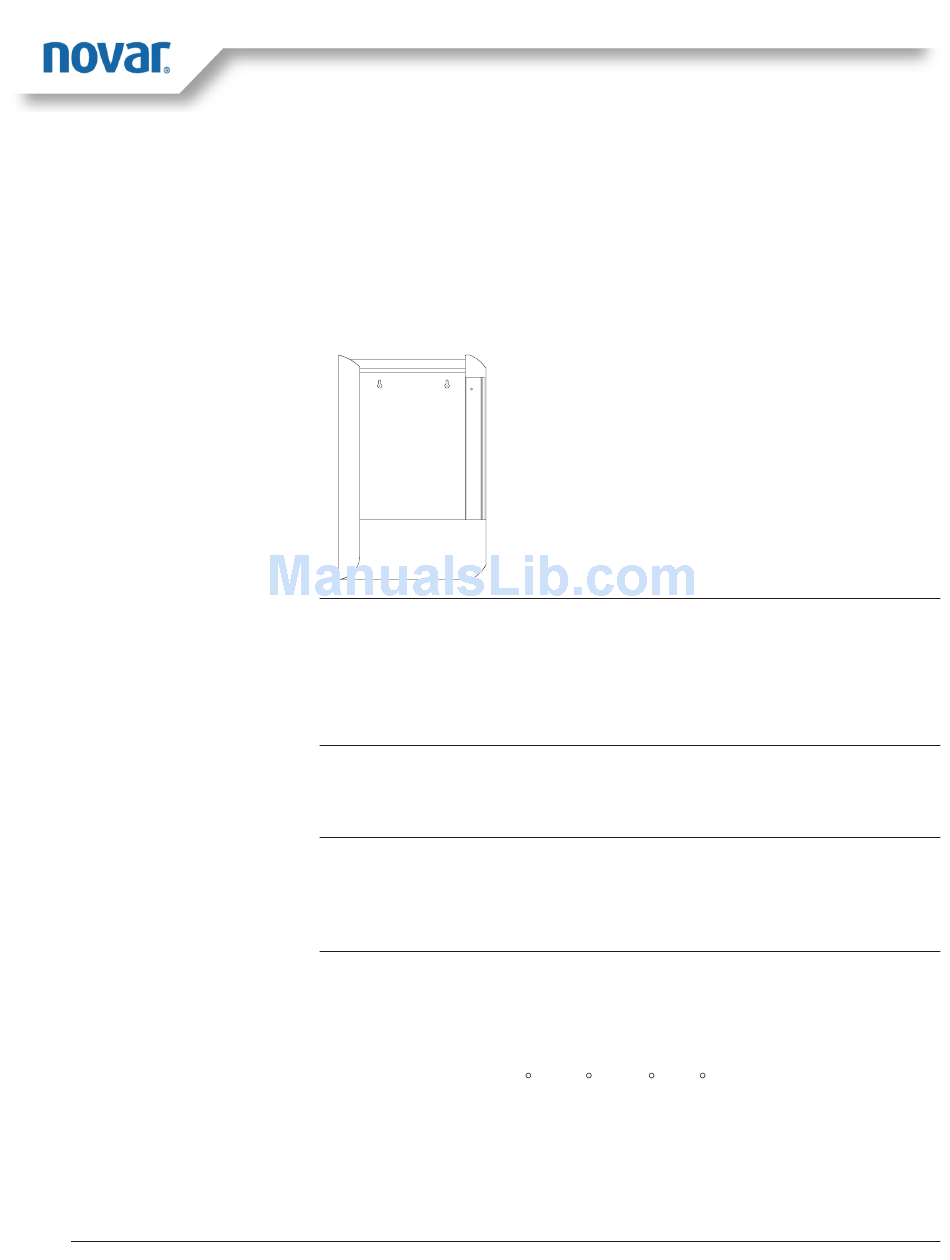

Lingo

SE Baseplate Installation Instructions

Description

Lingo SE Specifications

DOC. #569066200—C 8/17/06

The Lingo

SE Energy Infosystem is the next generation control processor that

functions as a system network manager and control monitor in Novar's Logic

One

Advanced Building Control System.

Agency Approvals

Listed device:

Standards used:

Power Requirements

Voltage:

Consumption:

Input/Output Ratings

Analog Inputs:

Digital Inputs:

Output (Fault):

Operating Environment

Lingo SE with Touchscreen:

Operating temperature: 41° to 122°F (5° to 50°C)

Storage:

Lingo SE monitors and logs the operations of the local

control modules, manages network communications,

and provides expandable and integrated control of the

building's equipment. Lingo SE's processing power,

compatibility, and multiple network capabilities

provide optimum control to cut energy costs, increase

comfort, and reduce equipment maintenance.

This document provides instructions for mounting and

wiring the Lingo SE baseplate and checking the

installation.

CUL/UL E90949

UL 916, Energy Management Equipment

CSA C22.2, No. 205-M1983, Signal Equipment

24 VAC, Class 2

40 VA

4 to 20 mA

Contact closure only

24 VAC or VDC, 1 amp, Class 2

0–80% RH, noncondensing

–4 to 158 F (–20 to 70 C)

0–90% RH, noncondensing

Table of Contents

Need help?

Do you have a question about the Lingo SE and is the answer not in the manual?

Questions and answers

Summary of Contents for Novar Lingo SE

Page 1 ® The Lingo SE Energy Infosystem is the next generation control processor that functions as a system network manager and control monitor in Novar’s Logic ® Advanced Building Control System. Lingo SE monitors and logs the operations of the local...
Page 2 Lingo SE requires continuous power for proper operation. Mounting the Lingo SE Baseplate to the Wall The following items are needed to mount the Lingo SE baseplate to the wall: The Lingo SE baseplate The hex wrench (included with the baseplate) Four screws (ap appropriate for mounting surface;...
Page 3 Position the baseplate over the screws and slide it down until the screws slide into the slots. Tighten the screws to secure the baseplate. Figure 1. Lingo SE baseplate mounting holes DOC. #569066200—C 8/17/06...
Page 4 Supplying the Lingo SE with Power The Lingo SE is powered by a 24-VAC, 40 VA, Class 2 transformer (not included—the transformer kit must be purchased separately). The transformer must be installed not more than 50 feet from the Lingo SE using minimum 18-gauge wire or mounted directly to the Lingo SE baseplate through the knockouts on the sides of the assembly.
Page 5 Step Procedure Connect the white (+) wire from the sensor to the Lingo SE at Terminal 25 (+) at the Outdoor Light Sensor input connections. Connect the black (–) wire from the sensor to the Lingo SE at Terminal 24 (–) at the Outdoor Light Sensor Input connections.
Page 6 When an alarm occurs, the contacts open momentarily. This signal indicates a Lingo SE fault alarm. Module Communications Lingo SE can accept connections from 128 modules in Novar’s module network without using a Network Expander Module. (The maximum number of modules is subject to software limitations.) A maximum of 32 modules can be connected to each of the A, B, C, and D Module terminals (Terminals 1–12).
Page 7 Make sure the baseplate is attached securely to the wall. Check all wiring connections to make sure they are correct and secure. If the wiring is correct and the baseplate is secure, reattach the Lingo SE baseplate cover. Operation of the Lingo SE requires the Lingo SE electronics. The Lingo SE Electronics Installation Instructions (Doc.
Page 8 Novar makes no representations or warranties with respect to this manual. In no event shall Novar be liable for technical or editorial omissions or mistakes in this manual, nor shall it be liable for any damages, direct or incidental, arising out of or related to the use of this manual. No part of this manual may be reproduced in any form or by any means without prior written permission from Novar.
