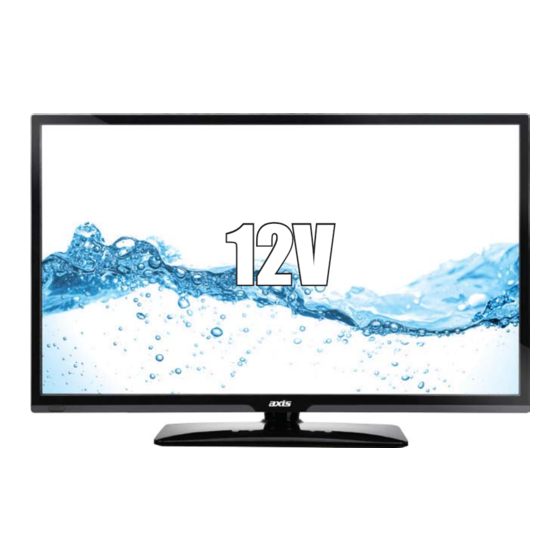

Axis car audio AX1519 Instruction Manual

12v hd led dvd/multimedia tv
Hide thumbs Also See for car audio AX1519:

Advertisement

Table of Contents

AX1519/AX1522/AX1532
12V HD LED DVD/MULTIMEDIA TV
SERIES 2
AX1519
47cm (18.5")
AX1522
55cm (21.5")
12V
12V 240
12/240 VOLT
DVD/CD/MP3
PANEL
- Display Size: 47cm/18.5" (AX1519)
55cm/21.5" (AX1522)
81cm/32" (AX1532)
- High Definition LED TV (AX1519)
Full High Definition LED TV (AX1522)
High Definition DLED TV (AX1532)
- Aspect Ratio: 16:9
- Resolution: 1366 x 768 (AX1519)
1920 x 1080 (AX1522)
1366 x 768 (AX1532)
- Brightness: 250cd/m2 (AX1519/22)
220cd/m2 (AX1532)
- Contrast: 1000:1 (AX1519/22)
3000:1 (AX1532)
- Viewing Angle: 170(H)x160(V) (AX1519/22)
178(H)x178(V) (AX1532)
- Pixel Pitch: 0.3(H)x0.3(V) (AX1519/22)
0.51075(H)x0.51075(V) (AX1532)
- Maximum Colours: 16.7M
- Response Time: 5ms - AX1519/22
7ms - AX1532
- Backlight Life: 100,000 hrs
SIZE/WEIGHT - AX1519
- Size (without base) : 447 x 40 x 270 mm
- Size (with base) : 447 x 160 x 309 mm
- Net weight: 3.4 kg (no stand/packaging)
SIZE/WEIGHT - AX1522
- Size (without base): 513 x 40 x 308 mm
- Size (with base): 513 x 160 x 347 mm
- Net weight: 3.8 kg (no stand/packaging)
SIZE/WEIGHT - AX1532
- Size (without base) : 737 x 81 x 437 mm
- Size (with base) : 737 x 180 x 489 mm
- Net weight: 5.8 kg (no stand/packaging)
AX1532
81cm (32")
USB INPUT
RECORDING
CONTROL LIVE TV
TUNER
- DVB-T Digital HD Tuner
- DTV Video System: MPEG-2MP@ML, H.264,
MPEG-4 (Video Codes)
- DTV Sound System: MPEG-1 Layer 1/2,
MPEG-2 Layer 2
- ATV Video System: PAL / SECAM
- ATV Sound System: BG, DK, I, L/L' / NICAM / A2
POWER
- Input: 12V DC / 3A (AX1519/22)
12V DC / 5.42A (AX1532)
- AC Adapter: 240V 50Hz/60Hz
- Stand-by Power Consumption: 0.5W
MULTIMEDIA & FEATURES
- TIMESHIFT: Pause, Rewind & Fast-Forward
Live TV (using PVR)
- USB Reader
- PVR (Personal Video Recorder)
- EPG (Electronic Program Guide)
SYSTEM
- Solution: 9203 (Australia)
- MPEG-4 Video System
- OSD: Multi-languages
- Number of Channels: 99
- Comb Filter: 3D
- Teletext: ATV/1000 Pages
- Speakers: 2x3W Stereo
12V
• Moisture, salt and corrosion resistant
• DVB-T Digital Tuner
• HDMI Input • Slimline Cabinet
DVD/CD PLAYER
- Built-In DVD Player
- Supports DVD/VCD/CD/MP3/DIVX/JPEG
- Supports DVD±R/DVD±RW/CD-R/RW
CABINET
- Moisture, salt and corrosion resistant PCB
Conformal Coated Circuit Board
- VESA Mounting
INPUTS/OUTPUTS
- RF / Antenna Input: 1 Rear
- CVBS Input: 1 Rear
- YPbPr Input: 1 Rear
- HDMI Input: 1 Rear (AX1519/22)
3 Rear (AX1532)
- VGA Input: 1 Rear
- USB Input: 1
- PC Audio Input: 1 Rear
- Headphone Output: 1 Rear
- Coaxial Input : 1 Rear
(digital output to AV Receiver)
INCLUDED
- Remote Control
- Removable Desktop Stand
- HDMI Extension Cable
- 240V AC Adapter
- 12V Cig Lead Car Power Adaptor
OPTIONAL: Select from Axis Range of
Optional VESA TV
Mounting Brackets
2
YEAR
WARRANTY

Advertisement

Table of Contents
loading

Related Manuals for Axis car audio AX1519

Summary of Contents for Axis car audio AX1519

  • Page 1 - Teletext: ATV/1000 Pages - 12V Cig Lead Car Power Adaptor - Size (with base): 513 x 160 x 347 mm - Speakers: 2x3W Stereo OPTIONAL: Select from Axis Range of - Net weight: 3.8 kg (no stand/packaging) Optional VESA TV Mounting Brackets...

  • Page 2: Table Of Contents

    Contents Remote control ..............................Basic Operation ..............................OSD Menu 1. PICTURE Menu ............................2. SOUND Menu ............................... 3. CHANNEL Menu ............................. 4. FEATURE Menu ............................5. SETUP Menu ..............................Multimedia Operation Multimedia Operation ............................1 Recording Operation Recording Operation ............................DVD operation DVD operation ..............................

  • Page 3: Important Safety Instructions

    Important Safety Instructions domestic Care is required when using the unit in tropical climates. Do not perate the appliance in temperatures over 40°C Protect the power cord from being walked on, pulled or pinched. Use only with a strong bracket or stand supplied.
  • Page 4 Important Safety Instructions listen through headphones at high volumes. Excessive sound out of direct sunlight. buttons buttons or it gently with should be placed...
  • Page 5 Use and Maintenance...

  • Page 6: Front View

    Overview Front View SOURCE MENU Please insert a 12cm disc VOL+ VOL- PLAY EJECT INPUT Display input source menu. MENU: Display/exit the OSD menu. LED Indicator CH+/-: Scan through channels. Remote Control Sensor VOL+/-: Adjust the volume. (keep clear) PLAY: Play / Pause the disc EJECT: Eject the disc.
  • Page 7 Overview Back View Model: AX15 HDMI POWER Headphone PC AUDIO IN VIDEO L-IN R-IN POWER: Connect to the power. HEADPHONE: Connect it to your headphone or other audio equipment. Video: Connect it to video output terminal of DVD. L/R in: Connect them to audio output terminals of DVD, shared with YPbPr. PC AUDIO IN: Connect it to the audio output terminal of PC.

  • Page 8: Remote Control

    Remote Control at an angle. STANDBY: Turn the TV on/standby. MUTE: Press to mute the sound, press again or press VOL+ to unmute. NUMBER BUTTONS PROGRAM: Return to the previous channel viewed. Select the picture mode. P.MODE: Select the sound mode. S.MODE: * In DTV mode, display the basic information a second time...
  • Page 9 Remote Control Play / Pause program. Previous chapter.

  • Page 10: Basic Operation

    Basic Operation Power on/off 1. Connect to the power supply with an adaptor. 2. -To turn on the TV Press button on the TV or remote control. -To turn off the TV Press button on the TV or remote control. Input Source select YPBPR Press SOURCE button on the TV set or remote control to display the...

  • Page 11: Picture Menu

    Menu 1. Picture menu Description Picture Mode: Select desired picture mode from Dynamic, Standard, Mild and User. Brightness: Adjust image black level. Contrast: Adjust image contrast. Sharpness: Adjust the sharpness (Gr y and invalid in VGA/PC mode). Colour: Adjust image colour from black and white. Tint: Control the tint ( NTSC mode only).

  • Page 12: Sound Menu

    OSD Menu 2. Sound menu Description Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User. Bass: Adjust the level of the lower-pitched sounds. Treble: Adjust the level of the higher pitched sounds. Balance: Adjust the audio output between left and right speakers. Surround: Turn on/off the surround sound function.

  • Page 13: Channel Menu

    OSD Menu 3. Channel menu (In ATV/DTV mode) Australia Description Channel Management: Enter the Channel management menu to edit the channels. Delete: Press RED button to the channels to delete Lock: User must set the “Lock enable” (Feature-Lock- Lock enable) at ON to active this function. Press GREEN button to sign (lock) or cancel (unlock) the channel.
  • Page 14 OSD Menu Country: Select the country. When the Child Lock is on, please enter the Password (Lock Password in Feature menu) to start Auto and Manual Search. Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press OK button to start auto search.

  • Page 15: Feature Menu

    OSD Menu 4. Feature menu Description Lock: This menu allows you to lock certain features of the television so that they can not be used or viewed. For example certain channels viewed by children or if the television is to be used in a hotel and you want certain channels locked.
  • Page 16 OSD Menu Hotel Mode - Enter the Hotel Setting menu. Hotel Lock: Turn on/off the Hotel Lock function. Channel Lock: Disable the Channel menu in OSD. Picture Lock: Disable the Picture menu in OSD. Sound Lock: Disable the Sound menu in OSD. Feature Lock: Disable the Feature menu in OSD.

  • Page 17: Setup Menu

    OSD Menu 5. SETUP menu Description OSD Timer: adjust the amount of time the On Screen Menu stays on the screen. PC Setup: Change the PC Settings in PC mode. Auto Adjust: Setup the parameter of the screen automatically. H/V-Position: Adjust the transverse/vertical position of the screen. Phase: Adjust the phase of the ADC sampling clock relative to the sync signal until a stable image is obtained.

  • Page 18: Multimedia Operation

    Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu, select Media source by the buttons, and press OK button to enter the Multimedia menu as shown below. 2). Insert USB device, and select the Media mode form Photo, Music, Movie and eBook, then the name of the device display on the screen as shown below.
  • Page 19 Multimedia Operation 1. Photo Play the photo Press button to select the option on the table, and press OK button to change. Note: ress OK button to display the option table when it disappears. Play/Pause the photo playing. Stop and exit the full screen program. Play the previous or next file directly.
  • Page 20 Multimedia Operation 3. Movie Play the movie Press button to select the option on the table, and press OK button to change. Note: ress OK button to display the option table when it disappears. Play/Pause the movie. Stop and exit the full screen program. Play fast back or forw rd.

  • Page 21: Recording Operation

    Recording Operation PVR settings Press the MENU button elect Feature-PVR/Timeshift menu, press OK button to enter the menu as below. 1). Record File Format Select Record File Format mode from TS and PS for stor in the USB device. 2). Partition Select USB device information Format: Press RED button to format the selected USB device.
  • Page 22 Recording Operation 5). Record List Display the Record list menu. Delete: Press RED button to delete the selected record plan. 6). Recorder Start Press OK button to start recording he REC button on the remote control EPG and Timer Record Press EPG button on the remote control to display the EPG menu.
  • Page 23 Recording Operation Recording Press REC button on the remote control to start recording in DTV mode. Press message window appears. Select “OK” and press OK to exit recording Note: a. Please make sure USB device is b. Please sure the speed and free space of the USB is c.
  • Page 24 DVD Operation Press the Power button on the TV or the remote control, then press the SOURCE button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC". Insert Disc Do not touch the playing surface. Hold the disc around the outside with your fingers and place the disc into the slot.
  • Page 25 DVD Operation...
  • Page 26 DVD Operation Spdif Setup A disc recorded with multi channel soundtracks. The output signal will recognise left and right channels. A disc recorded with multi channel soundtracks. The output signal will be stereo.
  • Page 27 DVD Operation Volume If a language listed is recorded on the disc, the sound can be played in that language.
  • Page 28 DVD Operation If a language listed is recorded on the disc, the subtitles can be displayed in that language. If a language listed is recorded on the disc, the can be displayed in that language.
  • Page 29 DVD Operation...
  • Page 30 DVD Operation...

  • Page 31: Simple Troubleshooting

    Simple Troubleshooting If the display fails or performance dramatically deteriorates the following Remember to check the peripherals to pinpo nt the source of the failure. If the display still fails to perform as expected, your for assistance. No power - Check all connections to the TV. - Press either the power button or the Standby button on the Remote control.

This manual is also suitable for:

Ax1522Ax1532

Table of Contents
