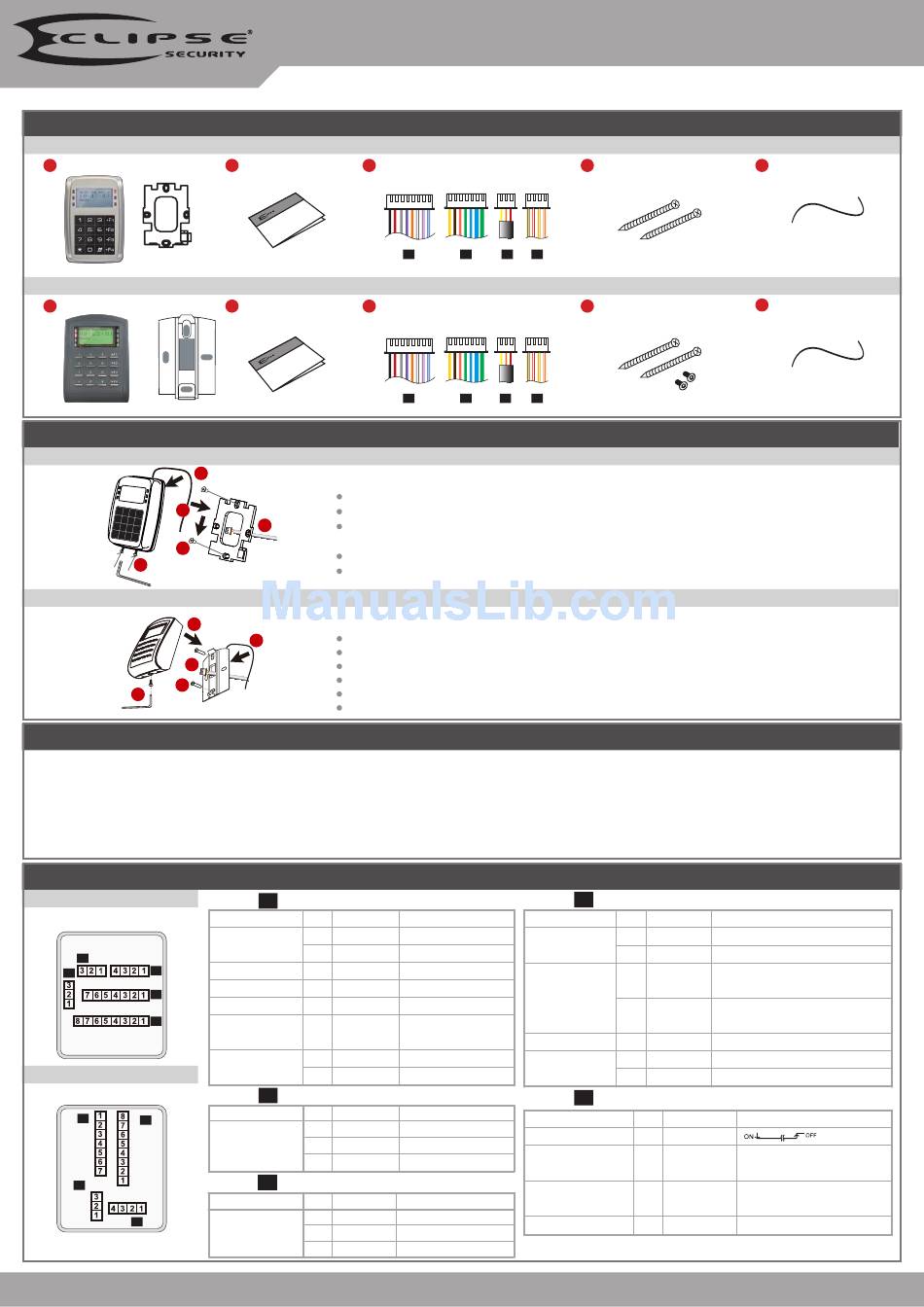

Eclipse ACC970 Instruction Manual

Contents
ACC970 [Touch-panel Metal Case]
1 Products
A. B.
ACC950
1 Products
A. B.
Installation
ACC970
3
4
2
5
ACC950
4
2
3
5
Notice
1.Tubing: The communication wires and power line should NOT be bound in the same conduit or tubing.
2.Wire selection:
Use AWG 22-24 Shielded Twist Pair it sould avoid star wiring.
3.Power supply: Don't equip reader and lock with the same power supply. The power for reader may be unstable when the lock is activating, that may make the
reader malfunction.
The standard installation: Lock relay and lock use the same power supply, and reader use independent power supply.
4.F4: At first time use, if appears no screen and green LED flashes, please press [F4] for 2 seconds.
Connector Table
ACC970
P3
P4
P5
P2
P1
ACC950
P2
P1
P3
P4
2 User Guide 3 Terminal Cables
2 User Guide 3 Terminal Cables
Pull the cables from the square hole of the mounting plate.
Use a screw to the mounting plate onto the wall.
1
Attach the water proof strip to the body, then connect the terminal cables to the body and attach the
body to the mounting plate.
Use the Allen key and screws (accessories supplied) to assemble the body onto the mounting plate.
Turn on the power, the LED will light and hear the beep sound, you will see "Ready"" on LCD board.
Attach the water proof strip to the mounting plate.
1
Pull the cables from the square hole of the mounting plate.
Use a screwdriver to screw the base onto the wall.
Connect the terminal cables to the body and attach the body to the mounting plate.
Assemble the covers with the Allen key and screws (accessories supplied).
Turn on the power, the LED will light and hear the beep sound, you will see "Ready"" on LCD board.
Cable: P1
Wire Application Pin Color
1 Blue White
Door Relay
2 Purple White
3 White
Common-COM-Point
Door contact 4 Orange
Exit Switch 5 Purple
Alarm Relay 6 Gray
Power 7 Thick Red
8 Thick Black
Cable: P3
Wire Application Pin Color
1 Red
Tamper Switch
2 Orange
3 Yellow
Cable:P5
(Optional: apply to ACC970)
Wire Application Color
Pin
1
3-PIN Connector Black
2
White
3 Purple
ACC950 / ACC970
P1 P2 P3 P4
P1 P2 P3 P4
Cable:
Description Wire Application
Networking
(N.O.)DC24V1Amp
(N.C.)DC24V1Amp
(COM)DC24V1Amp Wiegand
Negative Trigger Input
Negative Trigger Input
N.O./N.C. Options
(by jumper) Buzzer
DC 12V LED
DC 0V
Cable:
Description
Wire Application
N.C.
Arming Setting Input
COM
Serial Port
N.O.
Arming Status
Description
indication (light)
GND.
Card existing indication
DC 12V
Security trigger signa Output
4 Tools
4 Tools
P2
Pin Color Description
1 Thick Green RS-485 (B-)
2
Thick Blue RS-485 (A+)
3 Blue WG DAT: 1 Inpu
ABA Data Input
4 Green WG DAT: 0 Input
ABA Clock Input
5 Pink Buzzer Output 5V/100mA, MAX
6 Brown LED Green Output 5V/20mA, MAX
7 Yellow LED Red Output 5V/20mA, MAX
P4
Pin Color Description
1 Orange White
2 Yellow White Serial output (Transistor open
collector) (4800, N,8,1)
Arming output (Active low)/
3
Red White
Security trigger signa Output
Output LOW when card present
4 Brown White
V110519
5 Water proof Strip
5 Water proof Strip
Latch type
