Summary of Contents for audiophony Q215

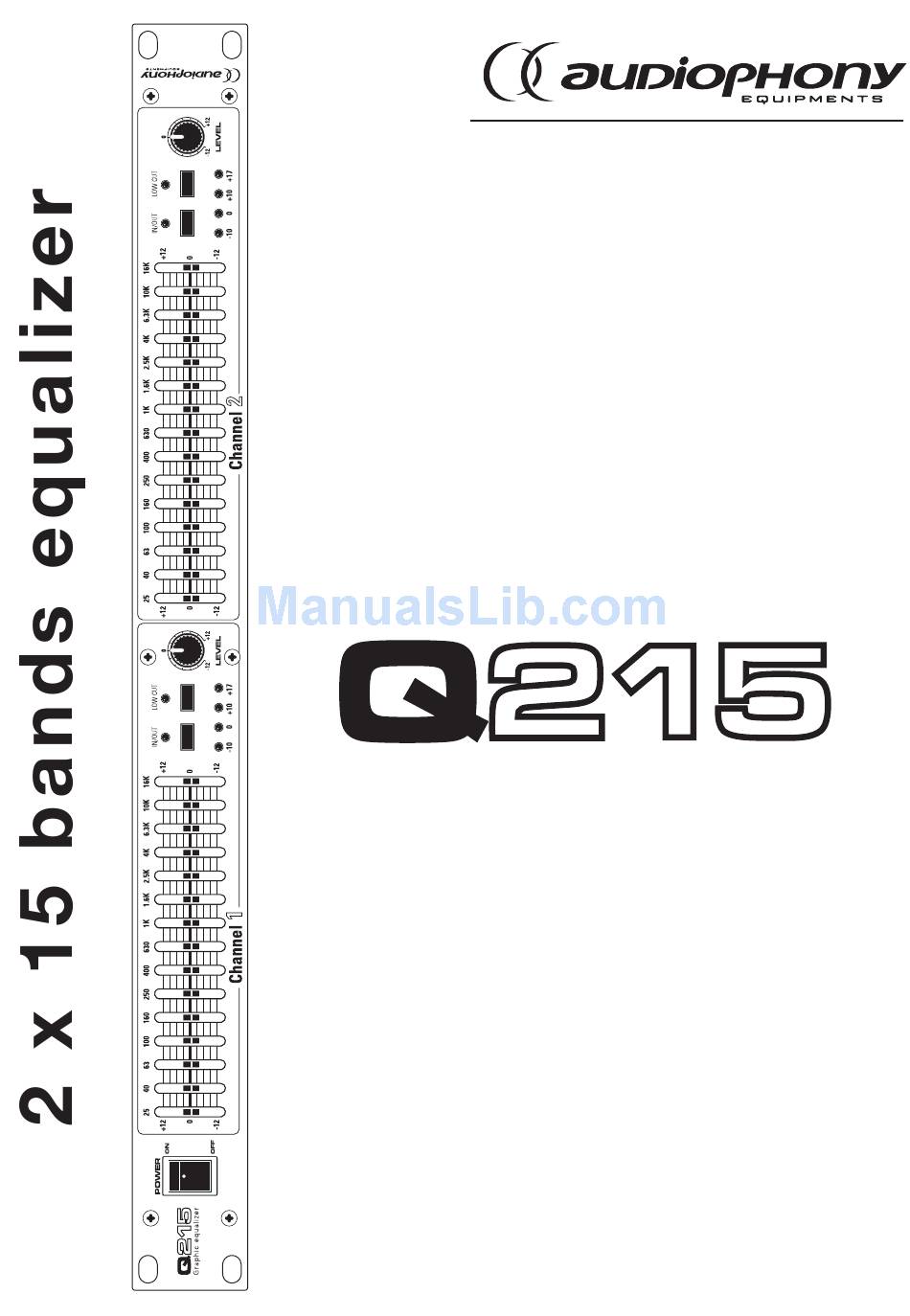

- Page 1 USER GUIDE 9670 - Version 1 / 06-2009...
-
Page 2: Safety Information
ENGLISH EQ215 - 2 x 15 bands stereo equalizer 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, This product contains non-isolated electrical components. Do not or extremely cold/hot locations. Failure to follow these safety ins- undertake any maintenance operation when it is switched on as tructions could result in fire, electric shock, injury, or damage to it may result in electric shock. - Page 3 ENGLISH EQ215 - 2 x 15 bands stereo equalizer Instructions and recommendations 12 - Cleaning precautions : 1 - Please read carefully : Unplug the product before attempting any cleaning We strongly recommend to read carefully and understand operation. This product should be cleaned only with the safety instructions before attempting to operate this unit.
- Page 4 2 x 15 bands stereo equalizer with balanced and unbalanced inputs/outputs - 19" edge-rackable. The Q215 is a professional tool allowing you to modify the sound level per frequency range in order to get the exact sound rendition you want by increasing/decreasing some parts of the specter of a source.
- Page 5 [1] - Power switch [5] - Output gain control knob Turns the unit ON/OFF. Allows you to control the main gain of the Q215. These settings are especially useful to compensate the volume increase/decrease due to the modifications operated by [2] - Power indicator the Q215.
- Page 6 [14] - RCA output the voltage of your electrical outlet matches the voltage Can be used simultaneously with the XLR or Jack indicated at the rear of the Q215. outputs. [15] - Rec Out Can be used simultaneously with the XLR, Jack or RCA outputs.
-
Page 7: Technical Specifications
ENGLISH EQ215 - 2 x 15 bands stereo equalizer 6 - Technical specifications • Equalization - Frequency range: 2 x 15, 2/3 of an octave, from 31.5Hz to 16 kHz - Types of filters: Linear, precision of 3% - Sliders excursion: 20 mm total, middle point - Gain: +/- 12dB •... - Page 8 That is why technical specifications and the products physical configuration might differ from the illustrations. ® Make sure you get the latest news and updates about the AUDIOPHONY products on www.audiophony.com AUDIOPHONY ®...
