DUO PEAK 1500
INSTRUCTIONS
INSTRUCTIONS

Introduction:

The unit is a Battery charger for 4-8pcs battery packs with
battery reverse connection protection and automatically detect the battery cells.

Technical data

Input voltage:
12-15V DC & 230V AC
Output::
RX: 5.6V/7V (4/5 cells)
TX: 8.4V/9.8V/11.2V (6/7/8 cells)

Instruction:

1. Please study this instruction sheet before charging.
2. Attach the switching power or the cigarette lighter plug with the AC or DC mains, And then connect the output
plug with the socket of T0250. The "FAST" red and "TRICKLE" green LED flash once respectively.
3. Connect the 4-5 cells battery pack and 6-8 cells battery pack with RX socket and TX socket respectively
according to the correct polarity. The "FAST" lights in red to indicate the charging is in charging progress.
4. Select the charging current within 1 minute of fast charging and then please do not adjust the charging current
again.
5. The charger will automatically switch to trickle charge mode when charging is completed. The "TRICKLE" green
LED lights.
6. When the predetermined charging time (6 hours, which is controlled by the safety timer) is reached, the charger
will switch to trickle charge mode and the "TRICKLE" LED indicator lights.
7. Note: "FAST" LED flashes to indicate battery pack is defective or the battery cells excess the detected scope.
8. When the battery is full, disconnect the charger from the AC outlet, and then remove the batteries from the
charger.
9. Use only the delivery 230V AC power supply when charging 6 cells or more than 6 cells battery pack.

Warning:

1. For indoor use only.
2. Do not charge non-rechargeable batteries.

Liability exclusion

As manufacturer, PROTECH is not in a position to ensure that you observe the correct methods of operation
when installing, using and maintaining this product. For this reason we are obliged to deny all liability for loss,
damage or costs which are incurred due to the incompetent or incorrect use and operation of our products, or
which are connected with such operation in any way.

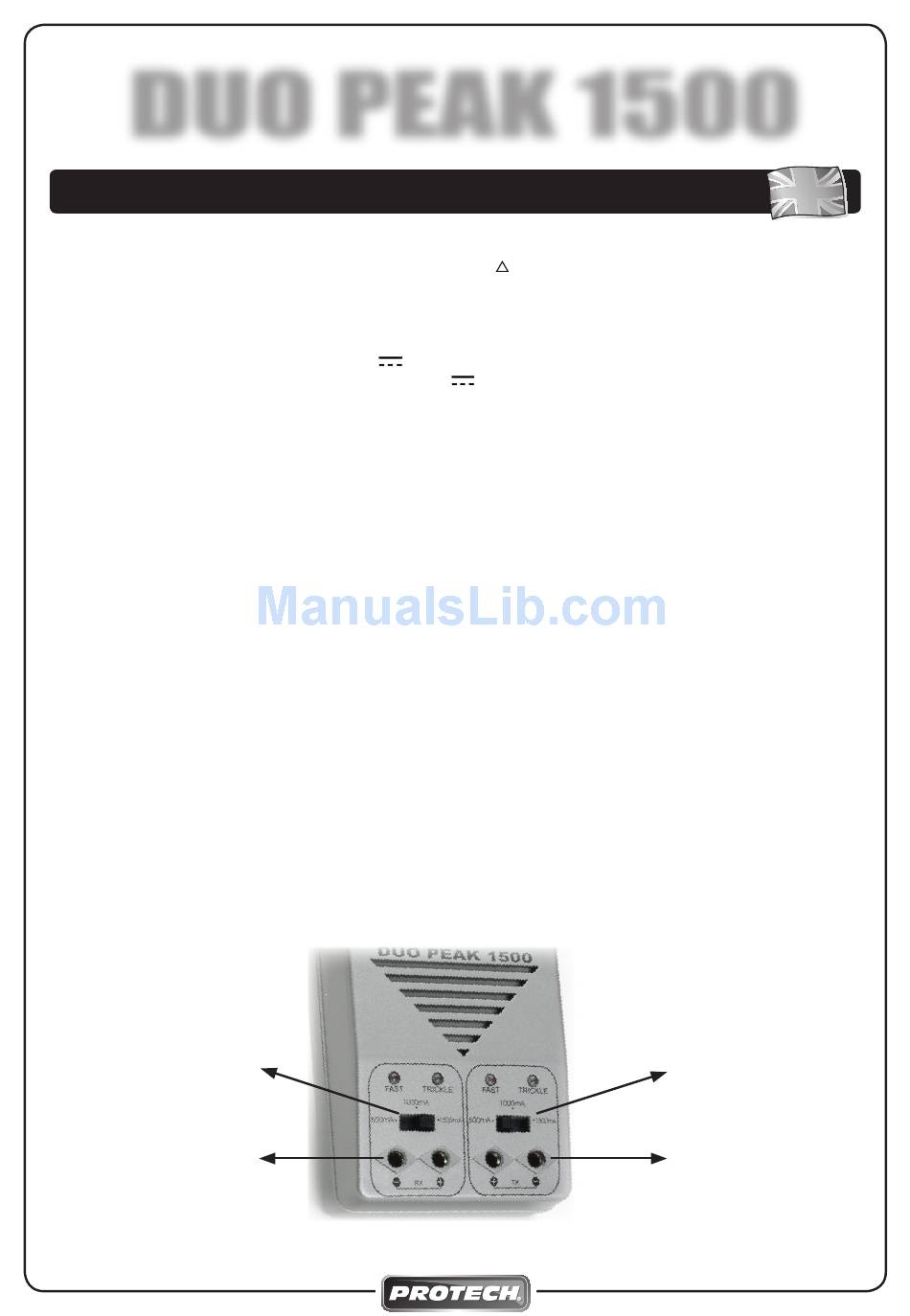

RX
Switch to select the
charge current
RX charge connectors
V Control. The charger has output short circuit,
500-1000-1500mA
500-1000-1500mA
PRO10-E • PRO25-E
UK
TX
Switch to select the
charge current
TX charge connectors
T0250
