Giga-tronics ASCOR 3000-46 Operation Manual

64 dpdt & 16(1x8)

Advertisement

Quick Links

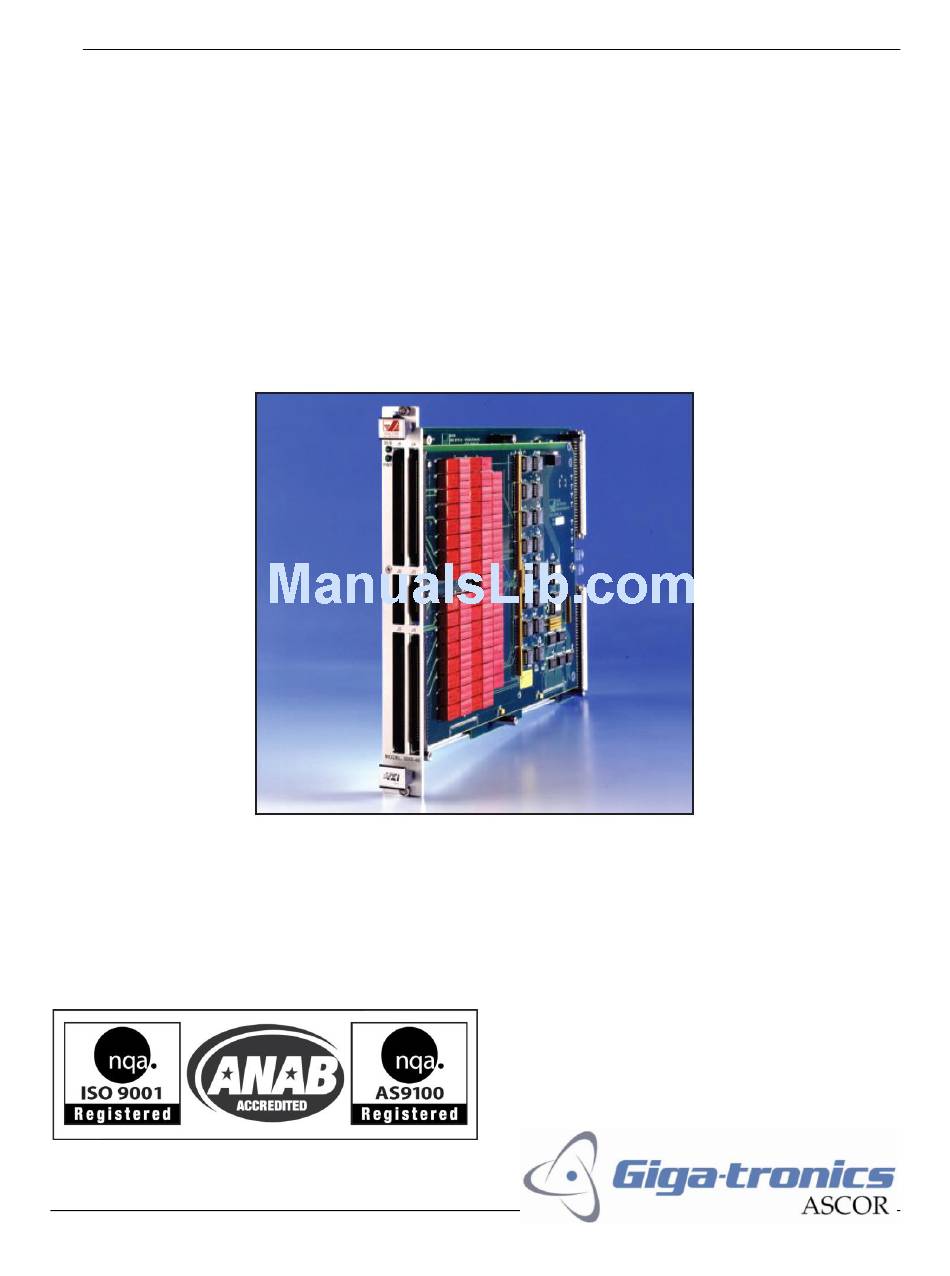

Manual 07500770
Model 3000-46
Model 3000-46
64 DPDT & 16(1x8) Multiplexer
90400750
Page 1
O
peration Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASCOR 3000-46 and is the answer not in the manual?

Questions and answers

Summary of Contents for Giga-tronics ASCOR 3000-46

  • Page 1 Manual 07500770 Model 3000-46 Model 3000-46 64 DPDT & 16(1x8) Multiplexer 90400750 Page 1 peration Manual...
  • Page 2 Giga-tronics will, at its option, repair or replace products that are proven defective during the warranty period. This warranty DOES NOT cover damage resulting from improper use, nor workmanship other than Giga-tronics service.
  • Page 3: Regulatory Compliance Information

    San Ramon, California 94583 U.S.A. Type of Equipment: Model Series Number Switching Module 3000-46 Declaration of Conformity on file. Contact Giga-tronics at the following; Giga-tronics, Incorporated 4650 Norris Canyon Road San Ramon, California 94583 Telephone: 800.726.4442 (only within the United States) 925.328.4650...
  • Page 4 Manual 07500770 Model 3000-46 Record of Changes to This Manual Use the table below to maintain a permanent record of changes to this document. Corrected replacement pages are issued as Technical Publication Change Instructions (TPCI). When you are issued a TPCI, do the following: 1.
  • Page 5: Revision History

    Manual 07500770 Model 3000-46 Revision History Revision Description of Change Chg Order # Approved By Initial Release Updated Reformatted 3/12 Page 5 peration Manual...
  • Page 6: Table Of Contents

    Manual 07500770 Model 3000-46 Contents Contents ................................ 6 Chapter 1 Introduction ..........................7 1.1 Safety and Manual Conventions ......................7 1.1.1 Product Reference ........................7 1.1.2 Personal Safety Alert ........................7 1.1.3 Equipment Safety Alert ....................... 7 1.1.4 Notes ............................7 1.1.5 Electrical Safety Precautions .......................
  • Page 7: Chapter 1 Introduction

    Manual 07500770 Model 3000-46 Chapter 1 Introduction 1.1 Safety and Manual Conventions This manual contains conventions regarding safety and equipment usage as described below. 1.1.1 Product Reference Throughout this manual, the term “Common Core Switching Platform, Series 8800” refers to all models of within the series, unless otherwise specified.
  • Page 8: Chapter 2 Configuration Table

    Manual 07500770 Model 3000-46 Chapter 2 Configuration Table Module PL90400750 Assy 90400750 Schematics PL85002160 Assy 85002160 SCH85002160 PL85002170 Assy 85002170 SCH85002170 Page 8 peration Manual...
  • Page 9: Chapter 3 Functional Description

    The ASCOR 3000-46 Flex-switch offers the customer the ability to combine all of the different modules within a single module with exceptional low noise and high bandwidth performance.
  • Page 10 Manual 07500770 Model 3000-46 on J1, J3, J4, and J6. The Output channel ports are located on J2 and J5. Isolated Pins (digital) 1-16 are located on J1, even number pins (a ribbon cable). The mixed signal pins, Pins 1-16 are located on J1, odd number pins (other ribbon cable).
  • Page 11: Chapter 4 Block Diagram

    Manual 07500770 Model 3000-46 Chapter 4 Block Diagram Group 1 typical Shield Digital out Shield Input Digital out 8 Channels SHLD Input 8 Channels SHLD Shield UUT8 Digital out Shield Digital out Analog Groundplane Page 11 peration Manual...
  • Page 12: Chapter 5 Controls And Indicators

    Manual 07500770 Model 3000-46 Chapter 5 Controls and Indicators The following controls and indicators are provided to select and display the functions of the ASCOR 3000-46 Module’s operating environment. 5.1 VXI Logical Address The Logical Address Switch is dual circular switches, D1 and D2 which are located at the rear of the module.
  • Page 13: Chapter 6 Internal Settings

    Manual 07500770 Model 3000-46 Chapter 6 Internal Settings The following items are inside the module and can be reached by removing the side cover. 6.1 Fuse The ASCOR VXI 3000-46 uses a 10 Amp fuse in the +5 Volt line and is located on the Mother Board (MB) assembly.
  • Page 14: Chapter 7 Specifications

    Manual 07500770 Model 3000-46 Chapter 7 Specifications Electrical: Voltage: 200VDC max. Current: 1.5A Carry, 0.5 A Switched Power: 10 Watts Bandwidth: Isolation relays (to digital): >100 MHz: single ended into 50 ohms, 150 MHz typical >150 MHz: differential across inputs (+/-) 8x1 Tree: >75 MHz : single ended into 50 ohms...
  • Page 15 Manual 07500770 Model 3000-46 Length: 13.78 inches Weight: 4 lbs. 10 oz. Environmental Specifications Temperature: Operating: 0º to 55ºC Storage: - 40º to 75ºC Relative Humidity: Operating: 0 to 90% non-condensing Storage: 0 to 95% non-condensing Page 15 peration Manual...
  • Page 16: Chapter 9 Register Map

    Manual 07500770 Model 3000-46 Chapter 9 Register Map The Model 3000-46 is a register based VXI module. Each register is 16 bits. They are organized in the following manner: Register Description 8000 Group 1: 8x1 trees (high/low) to I/O 1-8 (+/-) 8002 Group 2: 8x1 trees (high/low) to I/O 9-16 (+/-) 8004...
  • Page 17: Chapter 10 Connector Configuration

    Manual 07500770 Model 3000-46 Chapter 10 Connector Configuration CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD PIN 1 IN + PIN 1 OUT + PIN 1 IN - PIN 1 OUT - ANALOG SHIELD ANALOG SHIELD PIN 2 IN + PIN 2 OUT + PIN 2 IN - PIN 2 OUT -...
  • Page 18 Manual 07500770 Model 3000-46 CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD GP1, 8x1 OUT + GP2, 8x1 OUT + GP1, 8x1 OUT - GP2, 8x1 OUT - ANALOG SHIELD ANALOG SHIELD GP1-2, 16x1 OUT + GP3-4, 16x1 OUT + GP1-2, 16x1 OUT - GP3-4, 16x1 OUT - ANALOG SHIELD...
  • Page 19 Manual 07500770 Model 3000-46 CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD PIN 17 IN + PIN 17 OUT + PIN 17 IN - PIN 17 OUT - ANALOG SHIELD ANALOG SHIELD PIN 18 IN + PIN 18 OUT + PIN 18 IN - PIN 18 OUT - ANALOG SHIELD...
  • Page 20 Manual 07500770 Model 3000-46 CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD PIN 33 IN + PIN 33 OUT + PIN 33 IN - PIN 33 OUT - ANALOG SHIELD ANALOG SHIELD PIN 34 IN + PIN 34 OUT + PIN 34 IN - PIN 34 OUT - ANALOG SHIELD...
  • Page 21 Manual 07500770 Model 3000-46 CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD GP5, 8x1 OUT + GP6, 8x1 OUT + GP5, 8x1 OUT - GP6, 8x1 OUT - ANALOG SHIELD ANALOG SHIELD GP5-6, 16x1 OUT + GP7-8, 16x1 OUT + GP5-6, 16x1 OUT - GP7-8, 16x1 OUT - ANALOG SHIELD...
  • Page 22 Manual 07500770 Model 3000-46 CONNECTOR DESCRIPTION DESCRIPTION DESCRIPTION ANALOG SHIELD ANALOG SHIELD PIN 49 IN + PIN 49 OUT + PIN 49 IN - PIN 49 OUT - ANALOG SHIELD ANALOG SHIELD PIN 50 IN + PIN 50 OUT + PIN 50 IN - PIN 50 OUT - ANALOG SHIELD...
  • Page 23: Chapter 11 Memory Map

    Manual 07500770 Model 3000-46 Chapter 11 Memory Map A16 Space Offset (hex) This offset is added to the A16 Base Address of the module. The A16 Base Address for the Flex Switch is equal to the VXIbus logical address assigned to the Flex Switch shifted left six times and ORed with hex C000.
  • Page 24 Manual 07500770 Model 3000-46 A subset of the ASCOR 3000-46 Custom Registers are relay registers. See connector assignments for pin and channels assignments with associated relays. 3000-46 Relay Registers 8000h Relays K1-16, Pin 1 (Ch. 1-8), Pin 2 ( Ch. 1-8) 8002h Relays K17-32, Pin 3 (Ch.
  • Page 25 Manual 07500770 Model 3000-46 Model 3000-46 Motherboard SCH85002160 Register 8000h (mother board) Function: Group 1 8X1 FUNCTION COMMENTS Group 1, Pin 1+ J1-98 , Shield: J1-94, K1 Group 1, Pin 1- J1-96 , Shield: J1-94, K2 Group 1, Pin 2+ J1-92 , Shield: J1-88, K3 Group 1, Pin 2- J1-90 , Shield: J1-88, K4...
  • Page 26 Manual 07500770 Model 3000-46 Model 3000-46 Motherboard SCH85002160 Register 8004h (mother board) Function: ISO RELAYS PINS 1-16 FUNCTION COMMENTS ISO, Pin 1 J1-98, 96, Shield: J1-94, K33 ISO, Pin 2 J1-92, 90, Shield: J1-88, K34 ISO, Pin 3 J1-86, 84, Shield: J1-82, K35 ISO, Pin 4 J1-80, 78, Shield: J1-86, K36 ISO, Pin 5...
  • Page 27 Manual 07500770 Model 3000-46 Model 3000-46 Motherboard SCH85002160 Register 8008 (mother board) Function: Group 4 8X1 FUNCTION COMMENTS Group 4, Pin 25+ J3-50, Shield: J3-46, K65 Group 4, Pin 25- J3-48, Shield: J3-46, K66 Group 4, Pin 26+ J3-44, Shield: J3-40, K67 Group 4, Pin 26- J3-42, Shield: J3-40, K68 Group 4, Pin 27+...
  • Page 28 Manual 07500770 Model 3000-46 Model 3000-46 Motherboard SCH85002160 Register 800Ch (mother board) Function: OUTPUT CONTROL RELAYS FUNCTION COMMENTS GP1, 1X8 + J2-24 , Shield: J2-26, K97 GP1, 1X8 - J2-22, Shield: J2-20, K98 GP1, 1X16 + J2-18, Shield: J2-14, K99 GP1, 1X16 - J2-16, Shield: J2-14, K100 GP2, 1X16 +...
  • Page 29 Manual 07500770 Model 3000-46 Model 3000-46 Daughterboard SCH85002170 Register 8020h (daughter board) Function: Group 1 8X1 FUNCTION COMMENTS Group 5, Pin 33+ J4-98, Shield: J4-94, K1 Group 5, Pin 33- J4-96, Shield: J4-94, K2 Group 5, Pin 34+ J4-92, Shield: J4-88, K3 Group 5, Pin 34- J4-90, Shield: J4-88, K4 Group 5, Pin 35+...
  • Page 30 Manual 07500770 Model 3000-46 Model 3000-46 Daughterboard SCH85002170 Register 8024h (daughter board) Function: ISO RELAYS PINS 33-48 FUNCTION COMMENTS ISO, Pin 33 J4-98, 96 , Shield: J4-94, K33 ISO, Pin 34 J4-92, 90, Shield: J4-88, K34 ISO, Pin 35 J4-86, 84, Shield: J4-82, K35 ISO, Pin 36 J4-80, 78, Shield: J4-86, K36 ISO, Pin 37...
  • Page 31 Manual 07500770 Model 3000-46 Model 3000-46 Daughterboard SCH85002170 Register 8028 (daughter board) Function: Group 8 8X1 FUNCTION COMMENTS Group 8, Pin 57+ J6-50, Shield: J6-46, K65 Group 8, Pin 57- J6-48, Shield: J6-46, K66 Group 8, Pin 58+ J6-44, Shield: J6-40, K67 Group 8, Pin 58- J6-42, Shield: J6-40, K68 Group 8, Pin 59+...
  • Page 32 Manual 07500770 Model 3000-46 Model 3000-46 Daughterboard SCH85002170 Register 802Ch (daughter board) Function: OUTPUT CONTROL RELAYS FUNCTION COMMENTS GP5, 1X8 + J5-24, Shield: J5-26, K97 GP5, 1X8 - J5-22, Shield: J5-20, K98 GP5, 1X16 + J5-18, Shield: J5-14, K99 GP5, 1X16 - J5-16, Shield: J5-14, K100 GP6, 1X16 + J5-18, Shield: J5-14, K101...
